Publication 1769-UM020A-EN-P - December 2009 57
Module Addressing and Configuration with MicroLogix 1500 Controller Appendix B
Configure Analog I/O
Modules in a
MicroLogix 1500 System
This example takes you through configuring your 1769-OF4 module
with RSLogix 500 programming software. This application example
assumes your module is installed as expansion I/O in a MicroLogix
1500 system, that RSLinx software is properly configured, and a
communication link has been established between the MicroLogix
controller and RSLogix 500 software. You must program the 1769-OF4
module by using the Generic Module method.

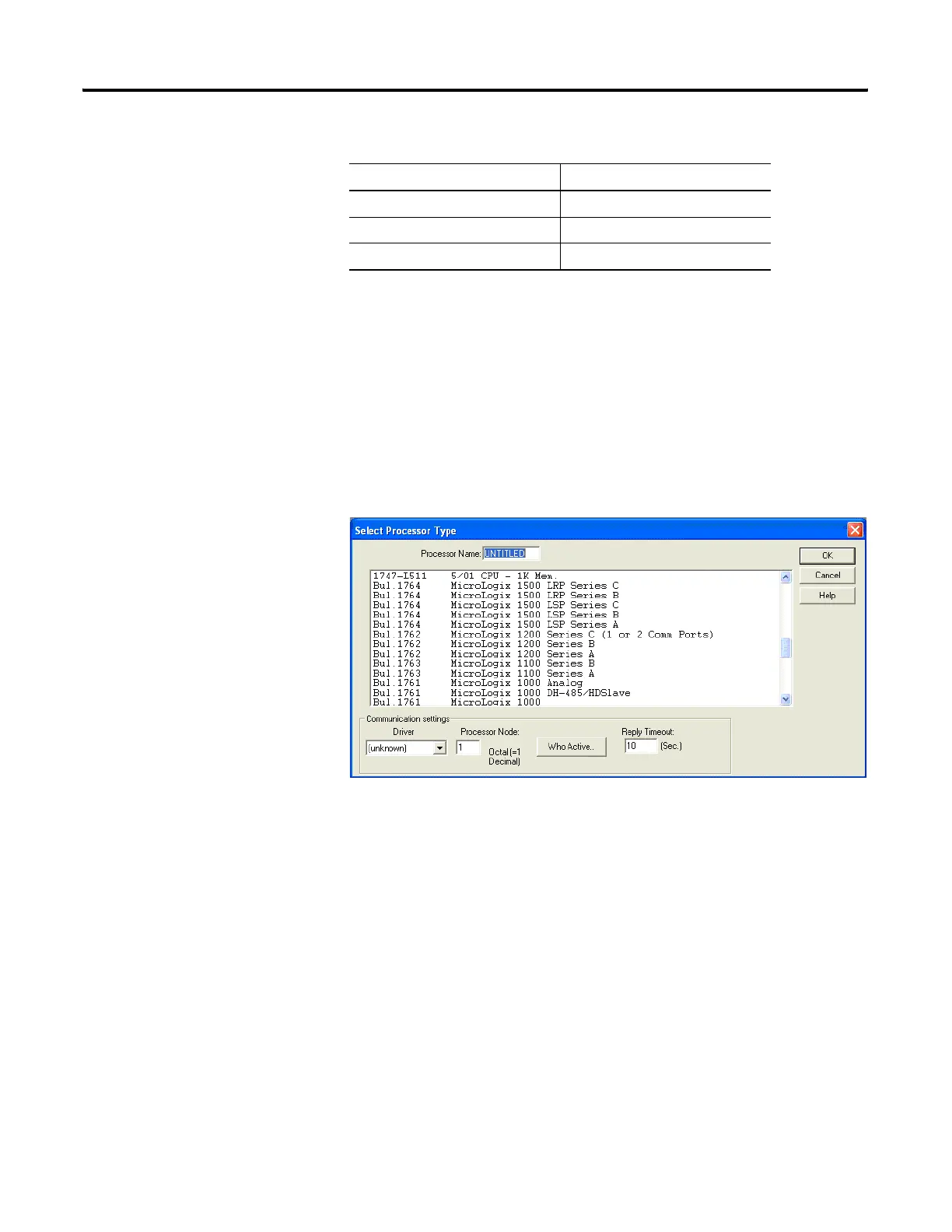

1. From the File menu, choose New to create a new project.
2. Type a name for the project in the Processor Name field.
3. Select your MicroLogix 1500 controller from the list and click
OK.
Software Configuration Channel Defaults
Parameter Default Setting
Enable/Disable Channel Disabled
Input/Output Range -10…10V DC
Data Format Raw/Proportional
