58 Publication 1769-UM020A-EN-P - December 2009
Appendix B Module Addressing and Configuration with MicroLogix 1500 Controller

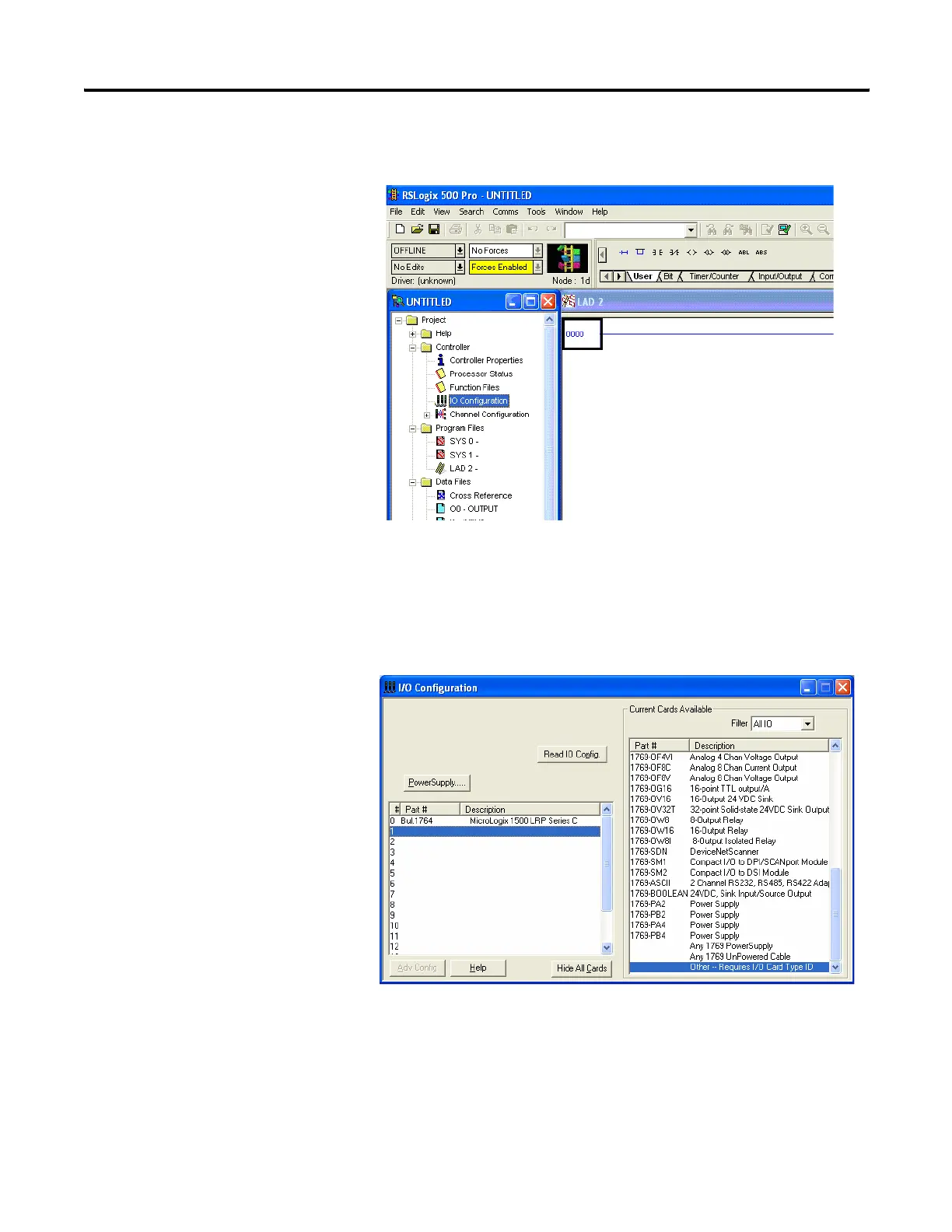

4. Double-click I/O Configuration in the project tree to open the
I/O Configuration dialog box.
5. On the I/O Configuration dialog box, select the slot position
where you want to add your module.
6. In the Current Cards Available list, double-click Other – Requires
I/O Card Type ID to add the module to the project in the
indicated slot position.
