18 Rockwell Automation Publication 1756-UM004A-EN-P - March 2019
Chapter 2 Connect to the EtherNet/IP Network
Set the IP Address
The following conditions are required to set the IP address.
Requirements
To set the IP address, have the following:
• EtherNet/IP or USB drivers that are installed on the programming
workstation
• MAC ID from the device, which is on the label on the side of the device
• Recommended IP address for the device
Set the IP Address with
Rotary Switches

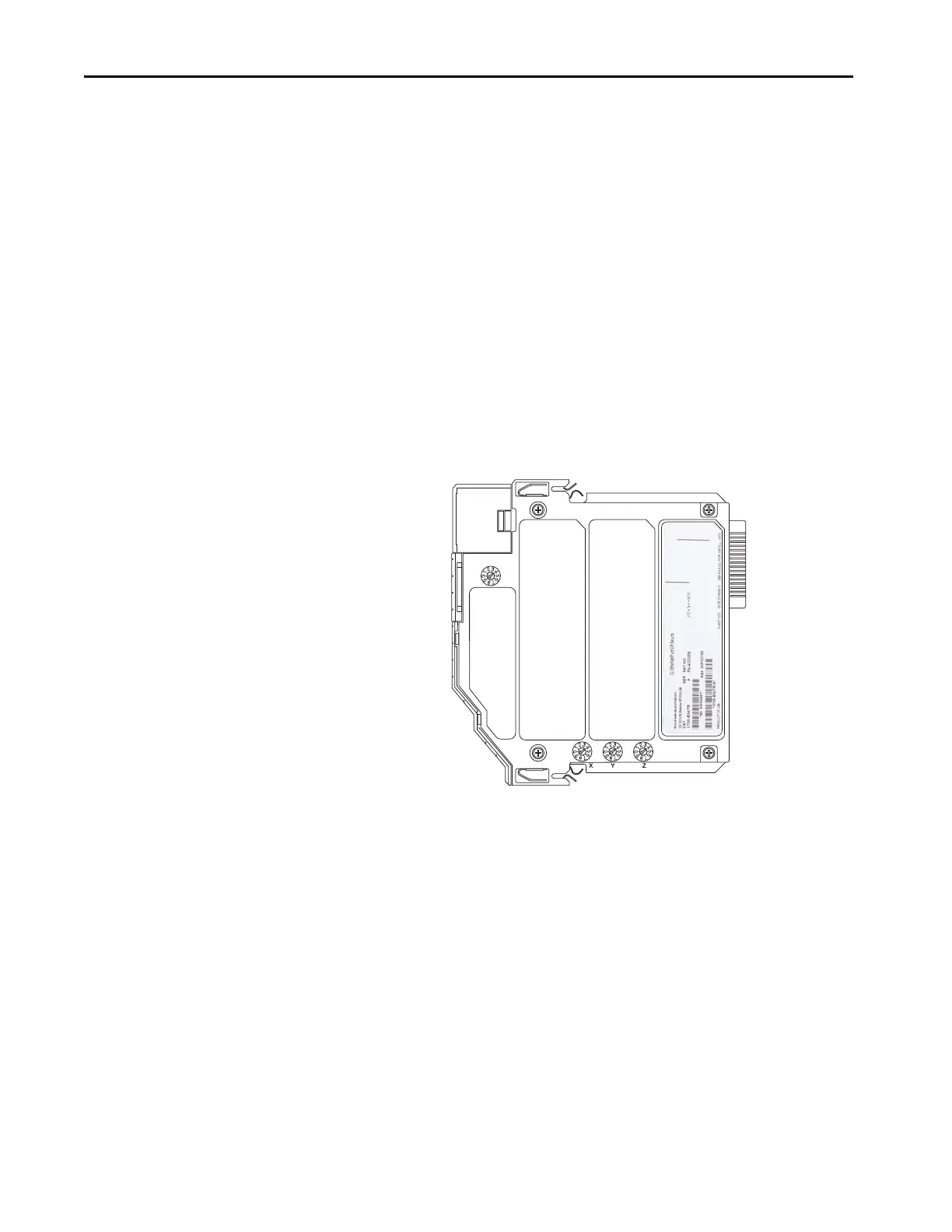

This graphic shows the rotary switches on a 1756 EtherNet/IP communication
module. The three rotary switches at the bottom of the module, labeled X, Y,
and Z, can be used for setting the IP address. The rotary switch in the upper
left corner of the module is reserved for future configuration.
At powerup, the module reads the rotary switches to determine if they are set
to a valid number for the last portion of the IP address. Valid numbers range
from 001…254.
