252 Rockwell Automation Publication 2080-UM002N-EN-E - November 2022

Chapter 12 Using microSD Cards

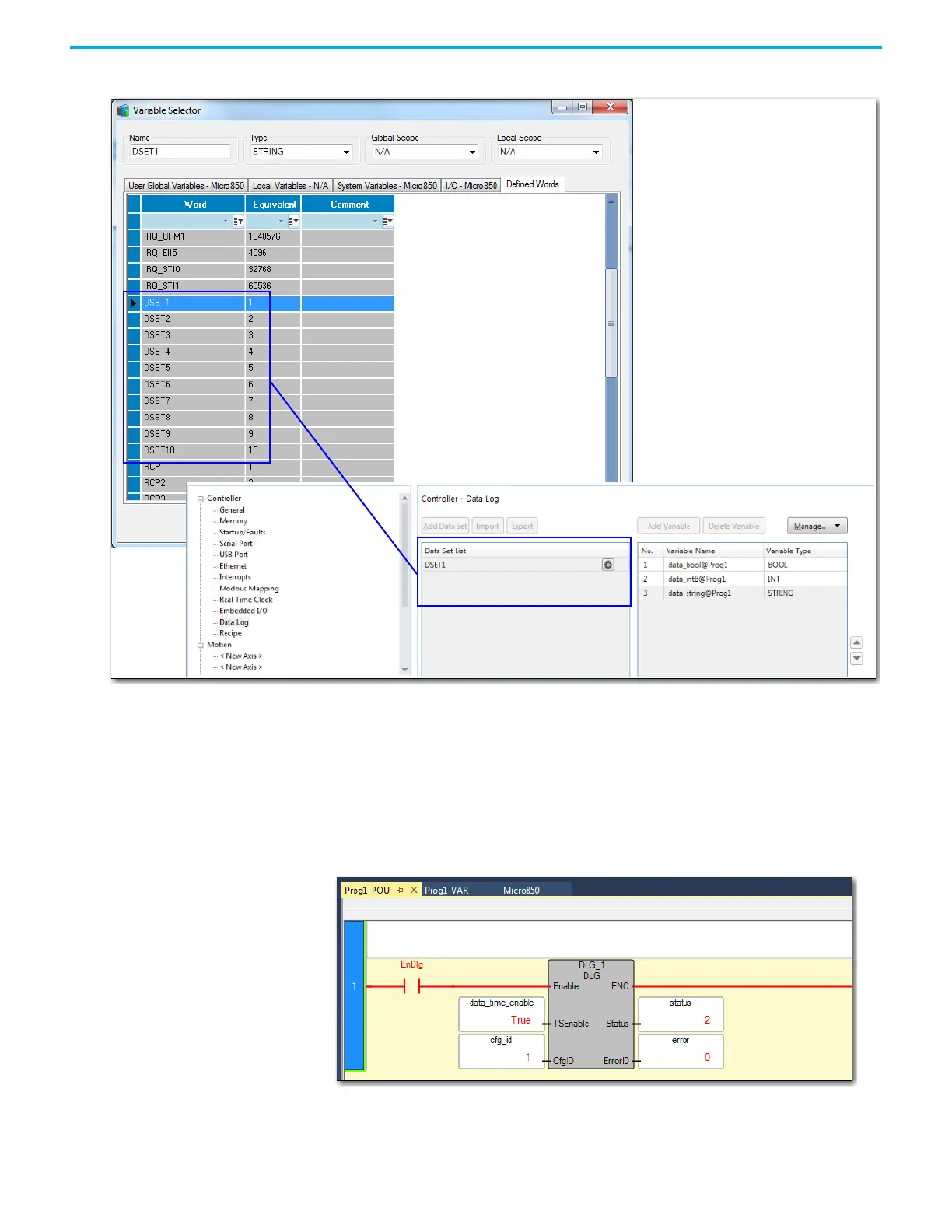

Figure 26 - Choose a Predefined Variable

Build and Download

After configuring data log properties, build the program and download to the controller.

Execute DLG Function Block

Execute the DLG function block. Notice the Status output go from 0 (Idle) to

1 (Enable), and 2 (Succeed).
