38 Rockwell Automation Publication 2080-UM002N-EN-E - November 2022
Chapter 3 Install Your Controller
Micro830 48-point Controllers
2080-LC30-48AWB, 2080-LC30-48QWB, 2080-LC30-48QVB, 2080-LC30-48QBB
Micro850 24-point Controllers
2080-LC50-24AWB, 2080-LC50-24QBB, 2080-LC50-24QVB, 2080-LC50-24QWB,
2080-L50E-24AWB, 2080-L50E-24QBB, 2080-L50E-24QVB, 2080-L50E-24QWB
Micro870 24-point Controllers
2080-LC70-24AWB, 2080-LC70-24QWB, 2080-LC70-24QWBK, 2080-LC70-24QBB, 2080-LC70-24QBBK,
2080-L70E-24AWB, 2080-L70E-24QWB, 2080-L70E-24QWBK, 2080-L70E-24QWBN, 2080-L70E-24QBB,
2080-L70E-24QBBK, 2080-L70E-24QBBN
Micro850 48-point Controllers
2080-LC50-48AWB, 2080-LC50-48QWB, 2080-LC50-48QWBK, 2080-LC50-48QBB, 2080-LC50-48QVB,
2080-L50E-48AWB, 2080-L50E-48QWB, 2080-L50E-48QWBK, 2080-L50E-48QBB, 2080-L50E-48QVB,

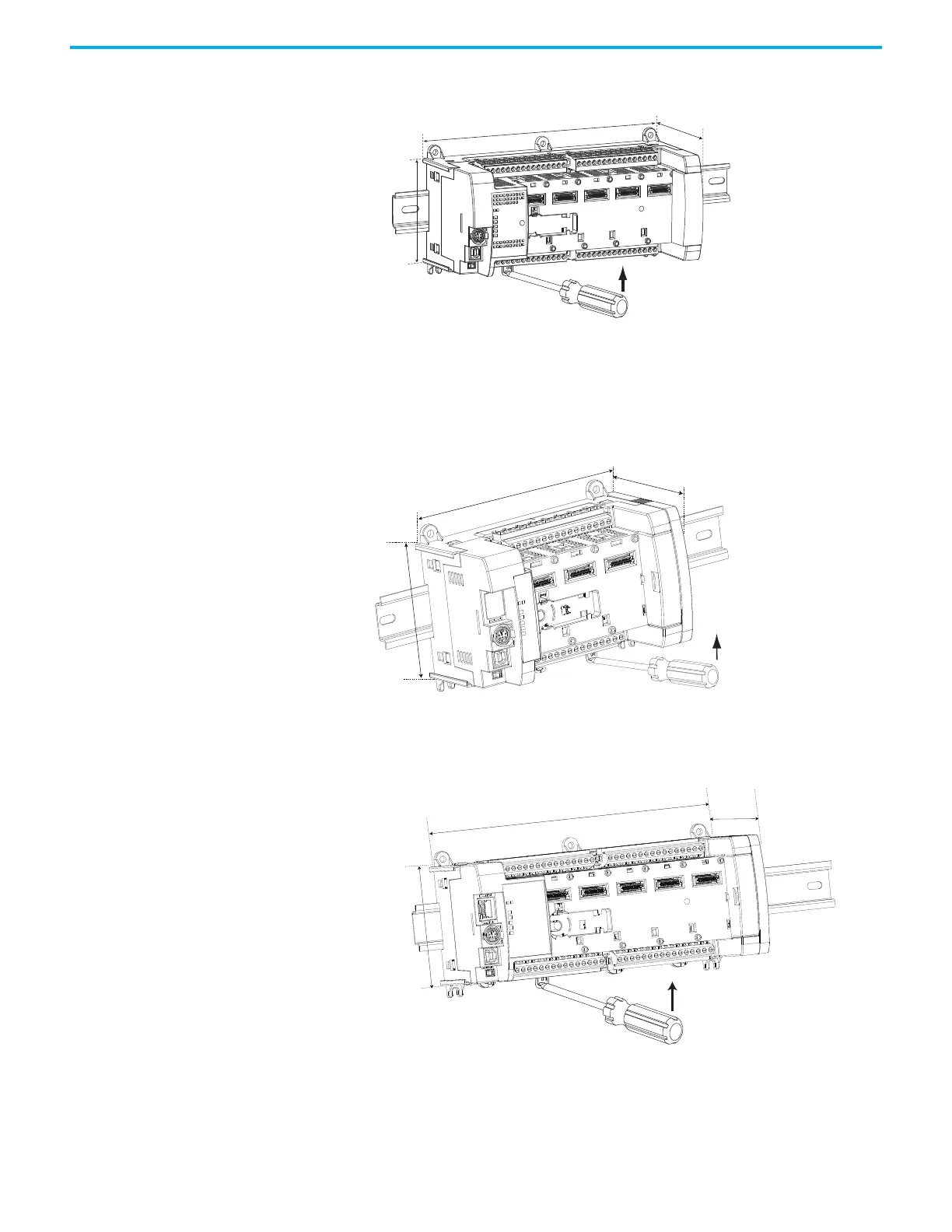

Maintain spacing from objects such as enclosure walls, wireways, and adjacent equipment.
Allow 50.8 mm (2 in.) of space on all sides for adequate ventilation. If optional accessories/
modules are attached to the controller, such as the power supply 2080-PS120-240VAC or
expansion I/O modules, make sure that there is 50.8 mm (2 in.) of space on all sides after
attaching the optional parts.
230 (9.06)
80 (3.15)
90 (3.54)
Measurements in mm (in.)
158 (6.22)
80 (3.15)
90 (3.54)
Measurements in mm (in.)
238 (9.37)
80 (3.15)
90 (3.54)
Measurements in mm (in.)
