162 Rockwell Automation Publication 1766-UM001O-EN-P - September 2021

Appendix D Use ControlFLASH to Upgrade Your Operating System

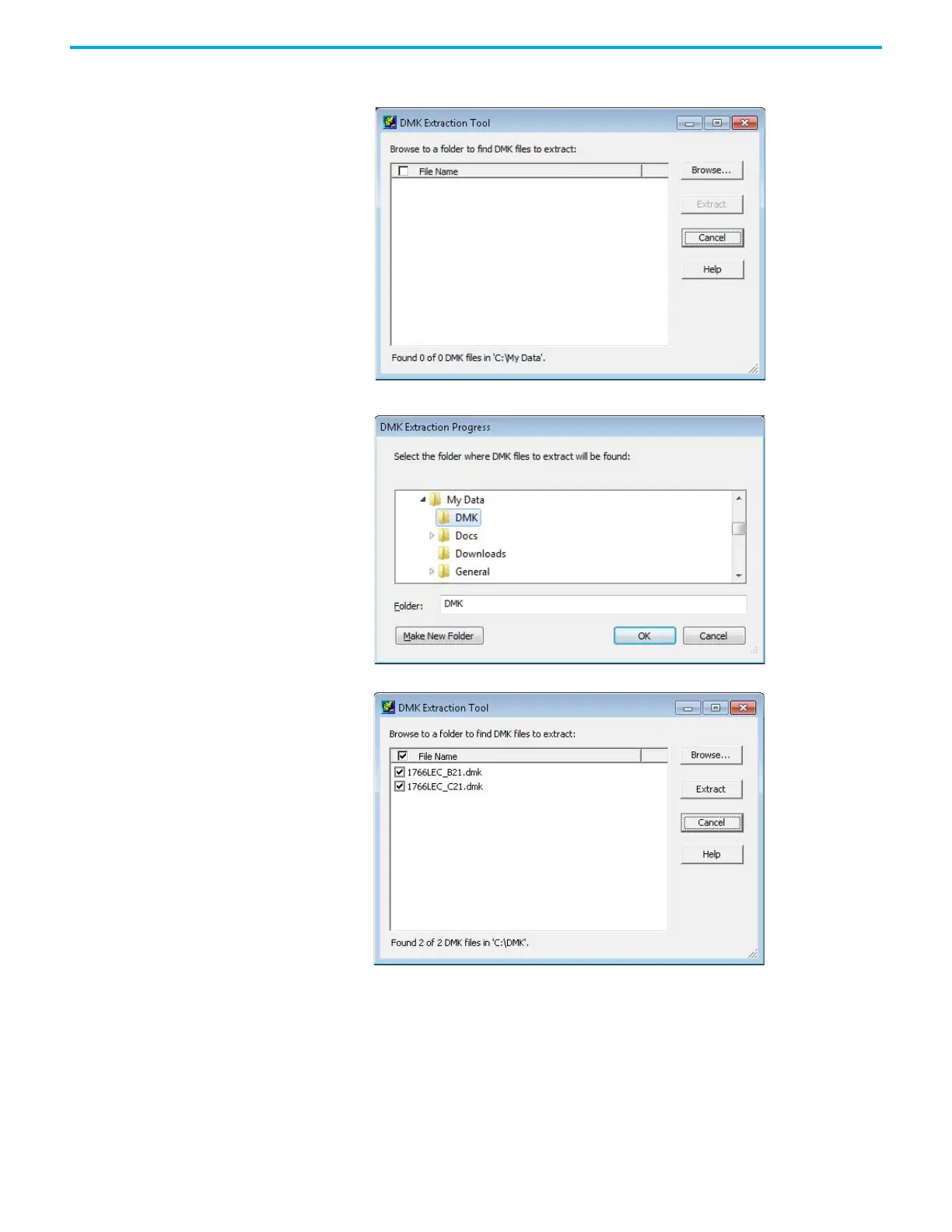

1. Launch the DMK Extraction Tool application under Programs>Flash

Programming Tools.

2. Click Browse and choose the location of DMK file in the system.

3. Click OK.
