42 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021
PowerFlex DC Drive and Field Controller Technical Data

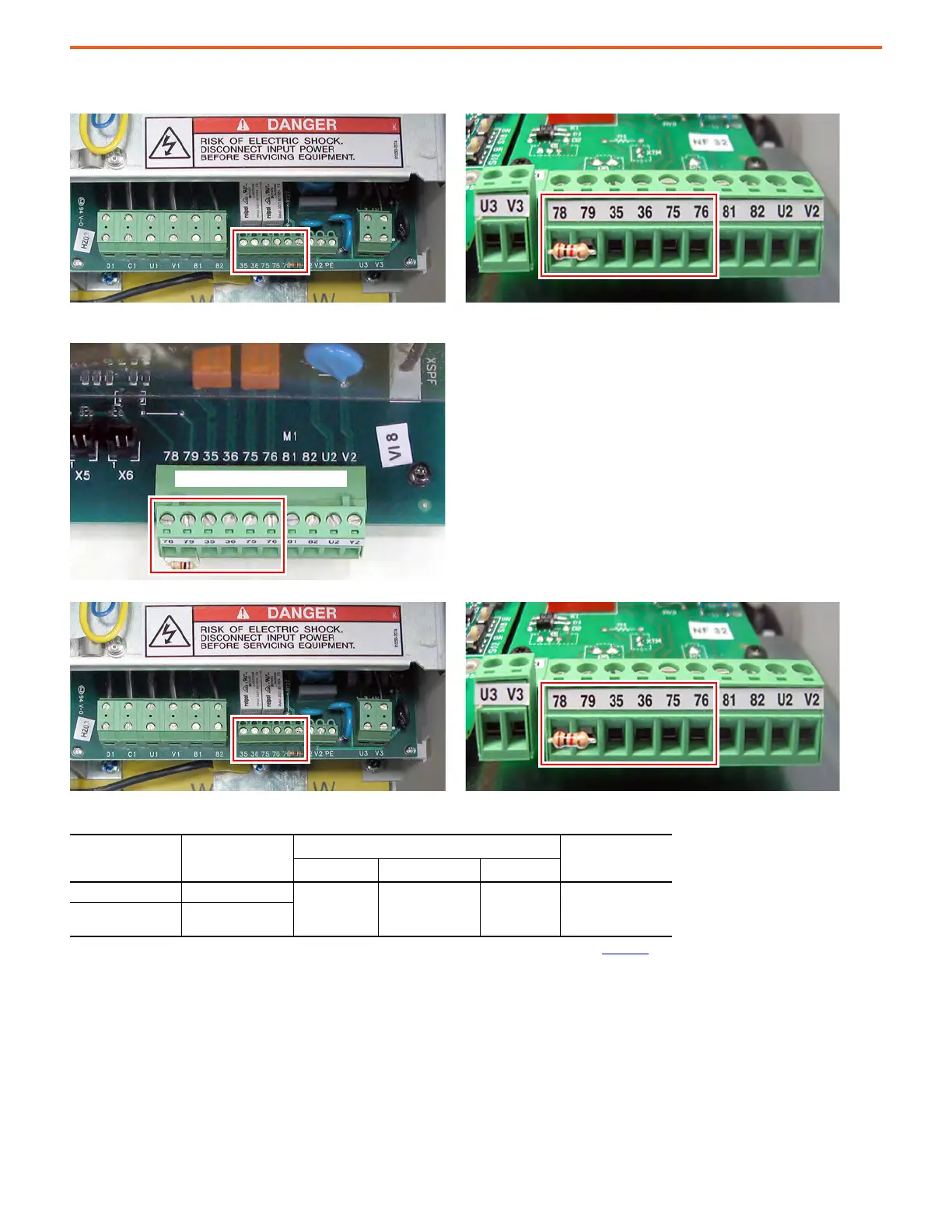

Frame C Contact Relay and Thermistor Terminal Block Locations (only for PowerFlex DC Drives)
Frame D Contact Relay and Thermistor Terminal Block Locations (only for PowerFlex DC Drives)
Recommended Signal Wire Size for Relay Outputs and Thermistor/Thermal Switch Terminals
Signal Type Terminals
Wire Size and Type
(1)
(1) For more information, see Cable and Wiring Recommendations in the PowerFlex Digital DC Drive User Manual, publication 20P-UM001.
Tightening Torque
N•m (lb•in)
Flexible (mm
2
)Multicore (mm
2
)
AWG
Relay Outputs 35 & 36, 75 & 76
0.140…1.500 0.140…2.500 26…14 0.5 (4.4)
Thermistor and
Thermal Switches
78 & 79
230V/460V AC Input Frame C 575V/690V AC Input Frame C
Lower, right side of the control
On control pan to the left of the HIM
230V/460V AC Input Frame C 575V/690V AC Input Frame C
Lower, right side of the control
