48 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021
PowerFlex DC Drive and Field Controller Technical Data
PowerFlex DC Drives and Field Controller Circuit Protection
The tables on the following pages provide the fuses that are required to help protect the armature and field circuits. Externally mounted
fuses (as indicated in Frame A and B Fuse Designations) must be sourced separately when installing the drive. Internally mounted fuses are
provided with the drive. See page 53
for frames C and D fuse information.

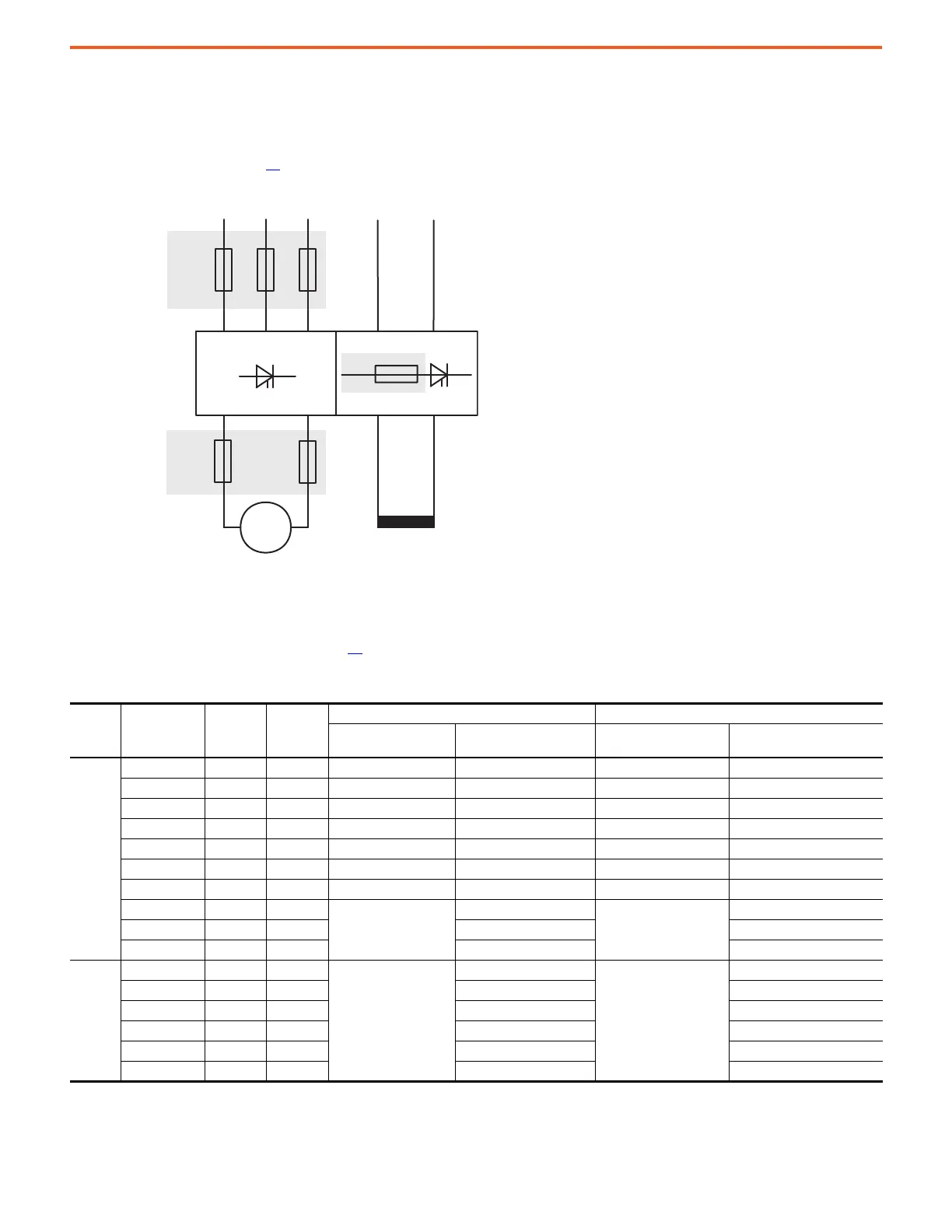

PowerFlex DC Drives Frame A and B Fuse Information
PowerFlex DC Drives Frames A and B AC Input Line Fuses
AC input line fuses are externally mounted for frame A and B drives and must be sourced separately. See Fuse Code FS1 in PowerFlex DC
Drives Frame A and B Fuse Information on page 48
.
230V AC Input Drives
Frame
Drive Current
Rating Code
DC Amps
AC Line
Amps
Bussmann Mersen
Ferrule FWP Type North American FWP Type Ferrule A70QS Type
North American A70P /
A70QS Type
A
7P0 7 5.7 FWP-10A14F FWP-10B A70QS10-14F A70P10-4
9P0 9 7.4 FWP-15A14F FWP-15B A70QS16-14F A70P15-4
012 12 9.8 FWP-20A14F FWP-20B A70QS20-14F A70P20-4
020 20 16 FWP-25A14F FWP-25B A70QS25-14F A70P25-4
029 29 24 FWP-40A22F FWP-40B A70QS40-22F A70QS40-4
038 38 31 FWP-63A22F FWP-60B A70QS63-22F A70QS60-4
055 55 45 FWP-80A22F FWP-80B A70QS80-22F A70QS80-4
073 73 60
—
FWP-100A
—
A70QS100-4K
093 93 76 FWP-150A A70QS150-4K
110 110 90 FWP-175A A70QS175-4K
B
146 146 119
—
FWP-250A
—
A70QS250-4
180 180 147 FWP-300A A70QS300-4
218 218 178 FWP-350A A70QS350-4
265 265 217 FWP-400A A70QS400-4
360 360 294 FWP-600A A70QS600-4K
434 434 355 FWP-600A A70QS600-4
FS1
FS2
M
U V W
C D
FS3
C1 D1
U1 V1
FS1 = Externally
mounted fuses for
the armature
converter on the AC
input side.
FS2 = Externally
mounted fuses for
the armature circuit
on the DC side.
FS3 = Internally
mounted fuses for
the field circuit on
the AC input side.
To Next Page
