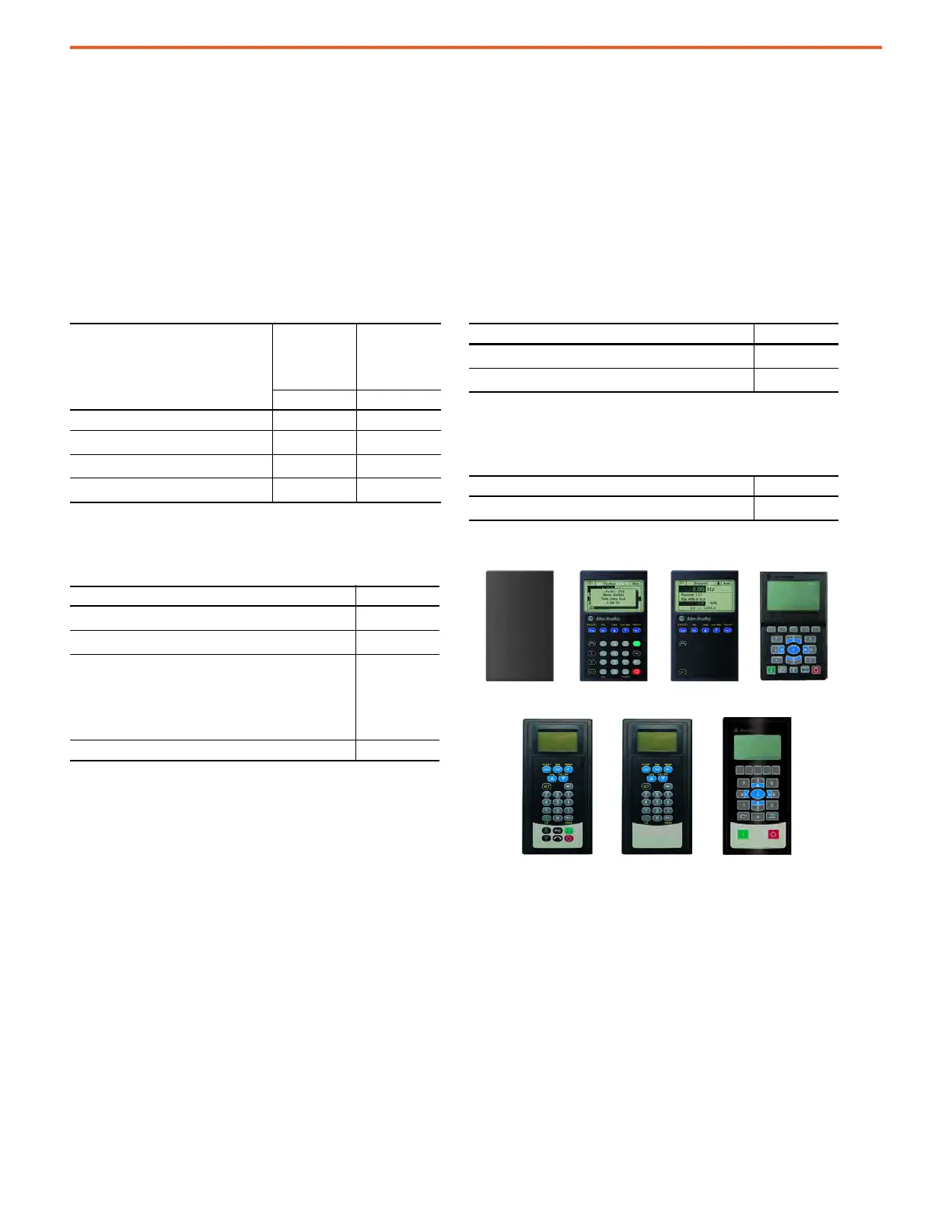

Human Interface Modules
Description
Handheld/
Local Drive
Mount
Remote
(Panel Mount)
IP66, NEMA/UL
Type 4x/12
(1)
(1) Only for indoor use.
Cat. No. Cat. No.
No HIM (blank plate) 20-HIM-A0 —
LCD display, full numeric keypad 20-HIM-A3
20-HIM-C3S
(2)
(2) Includes a 1202-C30 interface cable (3 m) for connection to drive.
LCD display, programmer only 20-HIM-A5
20-HIM-C5S
(2)
Enhanced LCD, full numeric keypad 20-HIM-A6
20-HIM-C6S
(2)
Human Interface Module Accessories
Description Cat. No.
Bezel kit for LCD HIMs, NEMA/UL Type 1
(1)
(1) Includes a 1202-C30 interface cable (3 m) for connection to drive.
20-HIM-B1
PowerFlex HIM interface cable, 1 m (39 in.)
(2)
(2) Required only when HIM is used as a handheld or remote.
20-HIM-H10
Cable kit (male-female)
(3)
• 0.33 m (1.1 ft)
• 1 m (3.3 ft)
• 3 m (9.8 ft)
•9 m (29.5 ft)
(3) Required in addition to 20-HIM-H10 for distances up to a total maximum of 10 m
(32.8 ft).
1202-H03
1202-H10
1202-H30
1202-H90
DPI/SCANport™ 1-to-2 port splitter cable 1203-S03
I/O Option Kits
Description Cat. No.
I/O expansion board
(1)
(1) Has four 24V DC digital inputs, four digital outputs, and two analog outputs.
20P-S5V62
115V AC to 24V DC eight-channel I/O converter board
(2)
(2) Converts eight digital inputs.
20P-S520L
Feedback Option Kit (only for PowerFlex DC drives)
Description Cat. No.
Resolver feedback option module
(1)
(1) The PowerFlex DC drive is not CE Certified when the resolver feedback module is
installed in the drive.
20P-RES-A0
