PowerFlex DC Drive and Field Controller Technical Data
Installation Considerations
PowerFlex DC Drive
The PowerFlex DC drive has the following built in protective features to help simplify installation:
• Electronic motor overload protection increases motor life

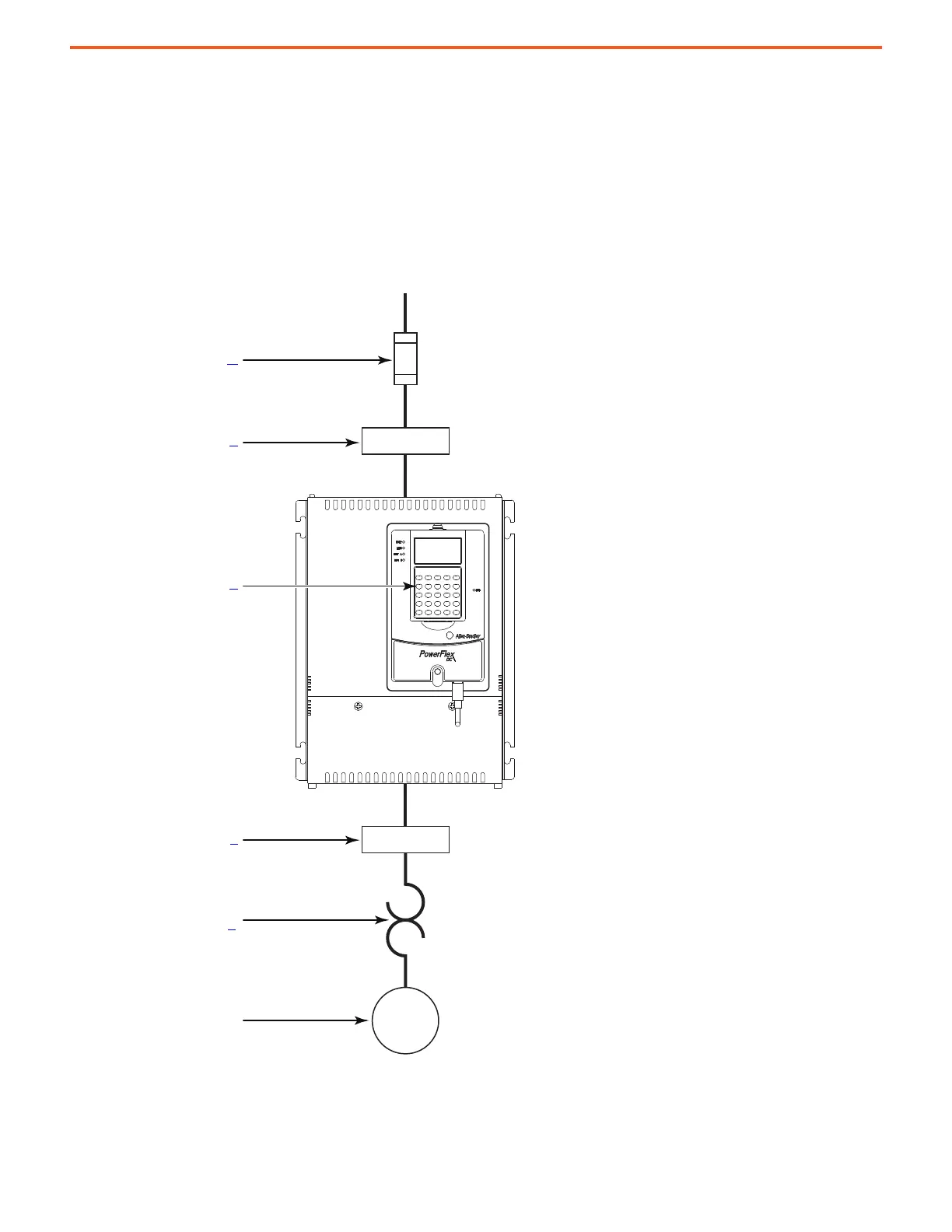

There are many other factors that must be considered for optimal performance in any given application. This block diagram highlights the
primary installation considerations.
Input Fuses - See page 48
Input Power Conditioning - See page 12
LCD HIM - See page 10
Motor Overload Protection -
See page 41
DC Motor
DC Drive Accessories - See page 17
To Next Page
