22 Rockwell Automation Publication 20P-TD001K-EN-P - January 2021
PowerFlex DC Drive and Field Controller Technical Data
PowerFlex DC Field Controller

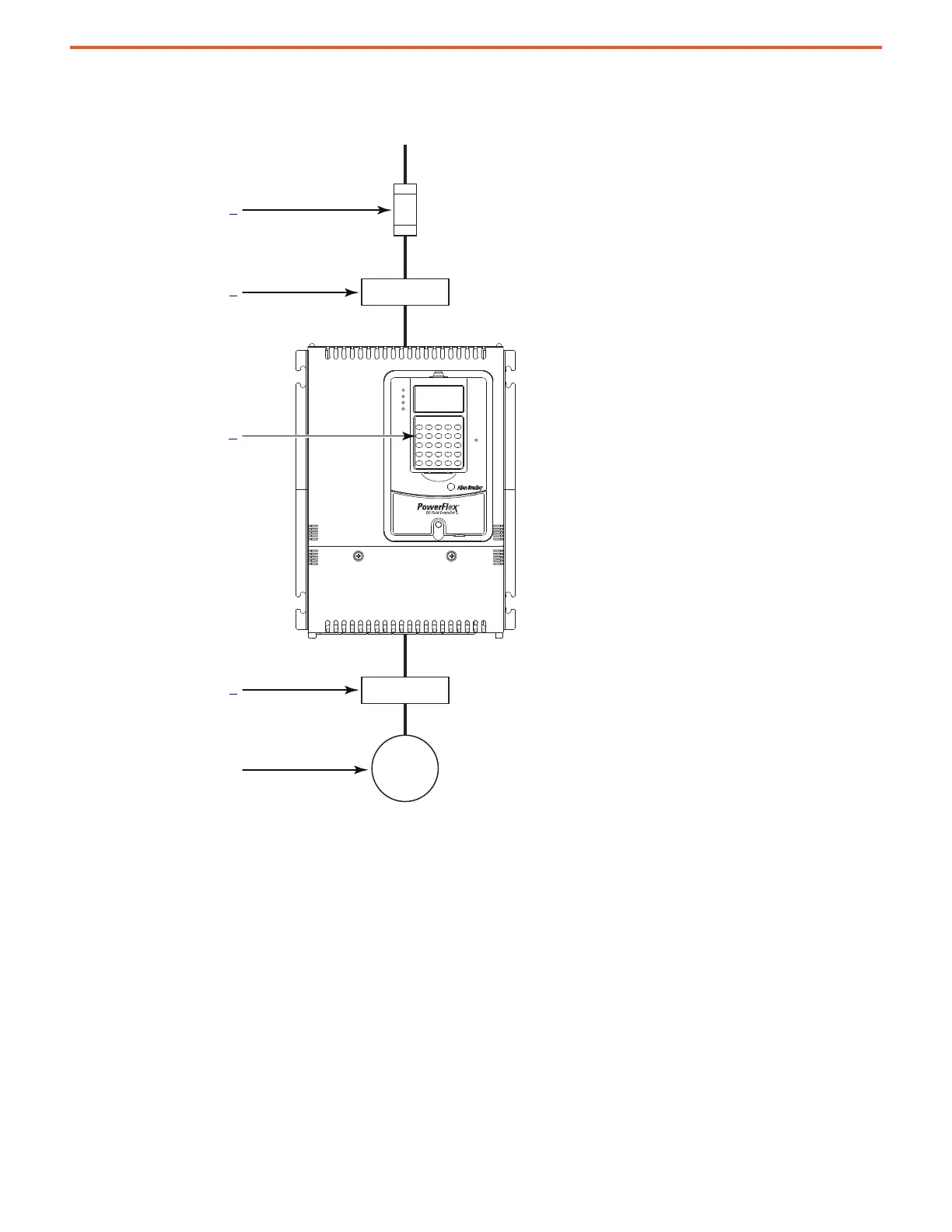

Consider the installation considerations that are shown in this block diagram for optimal performance in any given application.
PowerFlex DC Drives Power Wiring
AC Input Voltages
PowerFlex DC drives are rated for the following AC input voltages @ 50/60 Hz ±5%:
Mains Circuit (Terminals U, V, W)
•230V ±10%, 3Ph
• 400V ±10%, 3Ph
• 440V ±10%, 3Ph
•460V ±10%, 3Ph
•480V ±10%, 3Ph
•575V ±10%, 3Ph
•690V ±10%, 3Ph
STS
PORT
MOD
NET A
NET B
Input Fuses - See page 51
Input Power Conditioning - See page 12
LCD HIM - See page 10
DC Motor Field
OR
Inductive Load
DC Drive Accessories - See page 17
To Next Page
