PowerFlex DC Drive and Field Controller Technical Data
Approximate Dimensions and Weights – PowerFlex DC Field Controllers

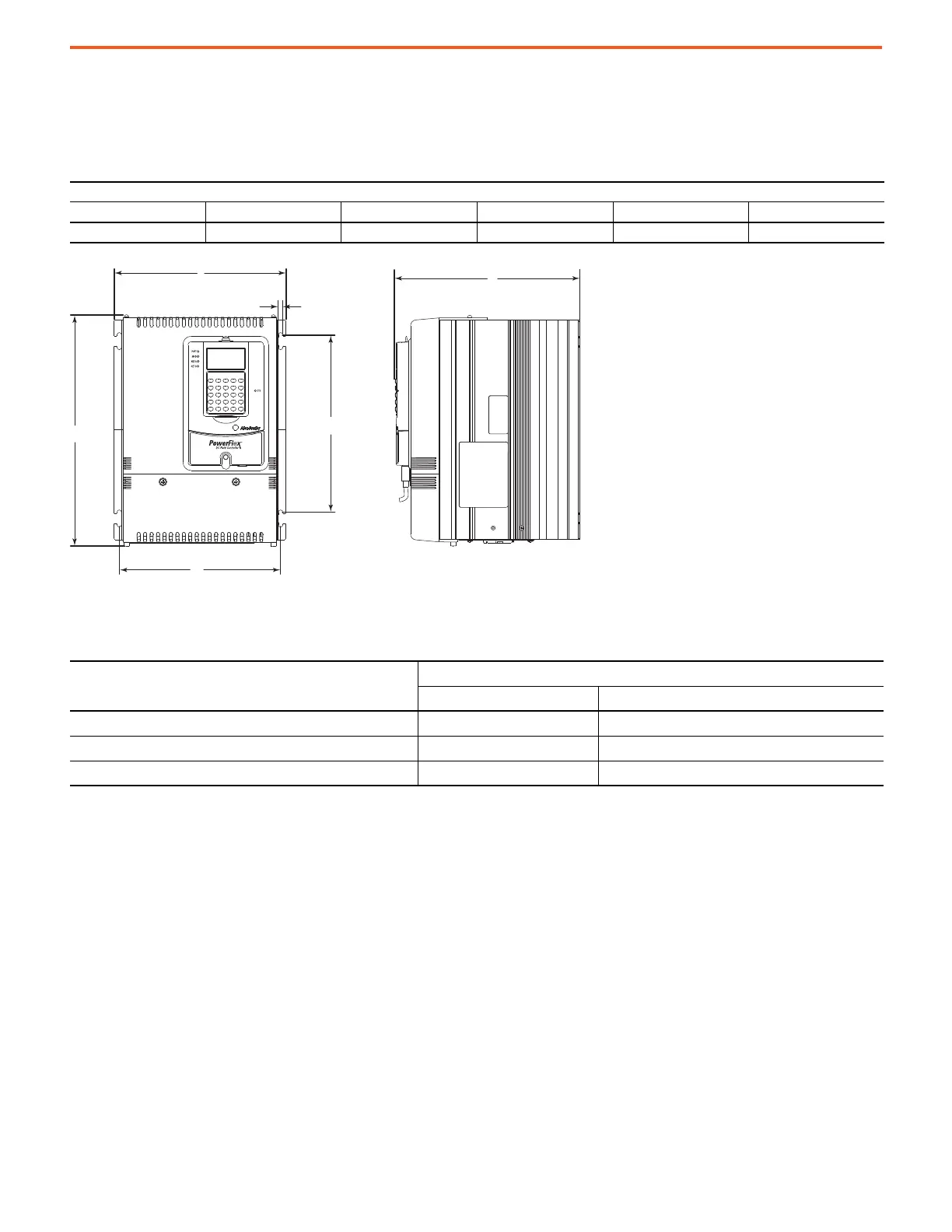

Frame A Dimensions
Frame A Weights
mm (in.)
ABCA1A2B1
267 (10.5) 359 (14.0) 287 (11.3) 7 (0.3) 250 (9.8) 275 (10.8)
Cat. No.
Weight, kg (lb)
Drive Drive and Packaging
23PFCB017 and23PFCD017 10.8 (23.8) 12.8 (28.2)
23PFCB060 and 23PFCD060 11.3 (24.9) 13.3 (29.3)
23PFCB120 and 23PFCD120 11.8 (26.0) 13.8 (30.4)
A
B
A2
B1
C
A1
