Installation/Wiring 1-15
2 Wire SRC Control -
Run FWD/Run REV
P036 [Star
t Source] = 2, 3
or 4
Input must be active for
the drive to run. When
input is opened, the drive
will stop as specified by
P037 [Stop Mode].
If both Run Forward and
Run Reverse inputs are
closed at the same time,
an undetermined state
could occur.
Internal Supply (SRC) External Supply (SRC)
2 Wire SNK Control -
Run FWD/Run REV
Internal Supply (SNK)
3 Wire SRC Control -
Non-Reversing
P036 [Star
t Source] = 1
A momentary input will
start the drive. A stop
input to I/O Terminal 01
will stop the drive as
specified by P037 [Stop
Mode].
Internal Supply (SRC) External Supply (SRC)
3 Wire SNK Control -
Non-Reversing
Internal Supply (SNK)

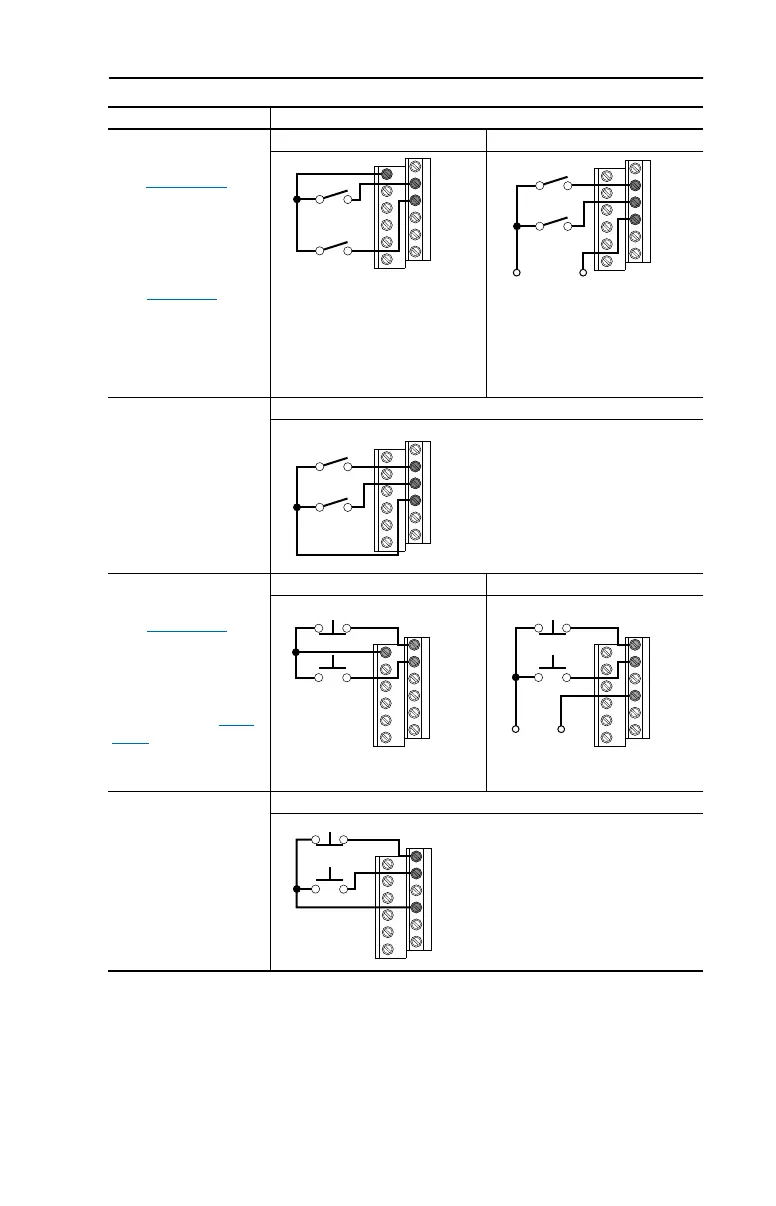

Input Connection Example
11
02
03
Stop-Run
Forward
Stop-Run
Reverse
Common
02
03
04
Stop-Run
Forward
Stop-Run
Reverse
+24V
Stop-Run
Forward
Stop-Run
Reverse
02
03
04
11
01
02
Stop
Start
01
02
04
+24V
Common
Stop
Start
Stop
Start
01
02
03
04
Each digital input draws 6 mA.
Each digital input draws 6 mA.
userman.book Page 15 Friday, June 21, 2002 2:48 PM
