Rockwell Automation Publication SYSLIB-RM044D-EN-P - February 2017 29

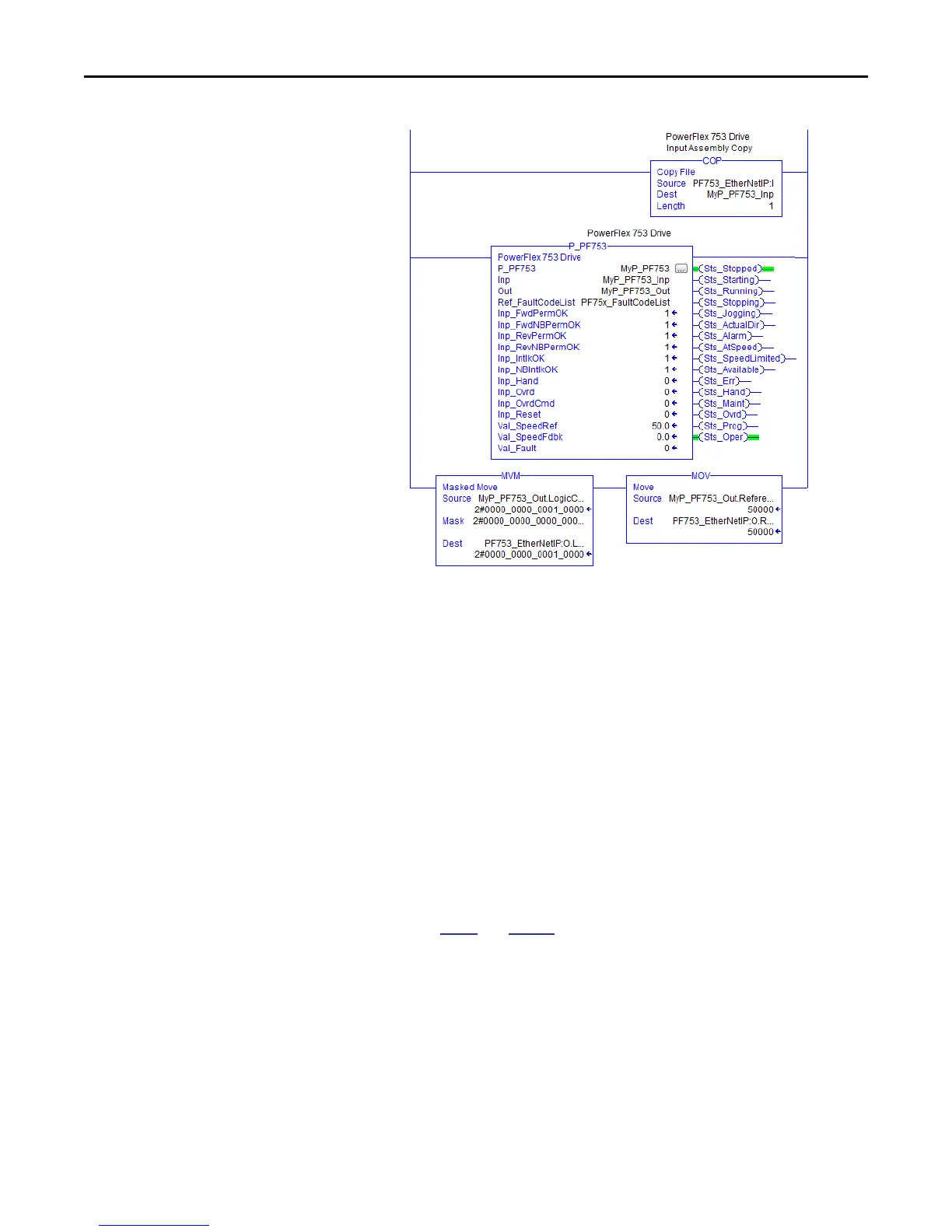

PowerFlex 753 Drive (P_PF753)
7. In the I/O Configuration, right-click the PowerFlex drive and choose
Properties.
The Module Properties dialog box appears.
8. Click Change.
The Module Definition dialog box appears.
9. In the Input Data column, click Browse (…).
The Parameter Properties dialog box appears.
10. From the pull-down menu, choose the port and parameter for each
DataLink.
11. Click OK.
The DataLinks that handle communication between the drive and
controller, carry over to the Module Definition dialog box.
12. Repeat
step 9 and step 10 until you have added all DataLinks.
These are the required DataLinks to add to your project:
• Predictive Maintenance Status (Port 0, Parameter 469)
• Start Inhibits (Port 0, Parameter 933)
• Drive Status 1 (Port 0, Parameter 935)
• Drive Status 2 (Port 0, Parameter 936)
• Last Fault Code (Port 0, Parameter 951)
• Fault Status A (Port 0, Parameter 952)
• Fault Status B (Port 0, Parameter 953)
