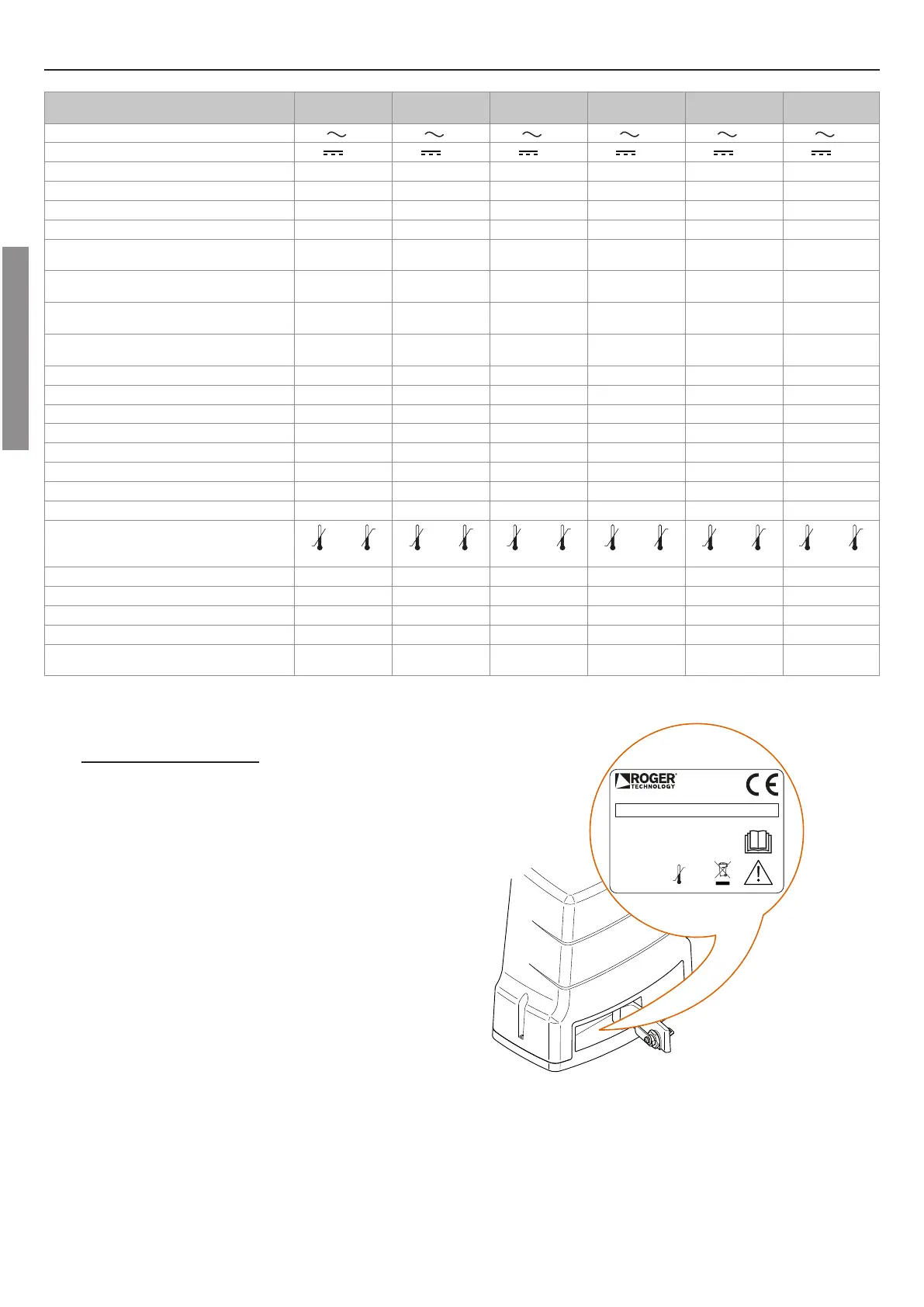

4 Technical Data
BH30/603/HS
BH30/604/HS
BH30/603/HS/115
BH30/604/HS/115
BH30/803
BH30/804
BH30/803/115
BH30/804/115
BH30/804/R BH30/804/R/115
MAINS POWER SUPPLY 230V 50 Hz 115V 60 Hz 230V 50 Hz 115V 60 Hz 230V 50Hz 115V 60 Hz
BRUSHLESS MOTOR POWER SUPPLY 24V 24V 24V 24V 24V 24V
DRIVE TYPE IRREVERSIBLE IRREVERSIBLE IRREVERSIBLE IRREVERSIBLE REVERSIBLE REVERSIBLE
MAXIMUM POWER ABSORPTION 140W 140W 140W 140W 140W 140W
START-UP POWER ABSORPTION 350W 350W 450W 450W 400W 400W
MAX. START-UP FORCE 500N 500N 800N 800N 600N 600N
RATED FORCE SERVICE 50%
(-20°C - +50°C)
150N 150N 300N 300N 180N 180N
RATED FORCE SERVICE 50%
(+50°C - +55°C)
50N 50N 100N 100N 60N 60N
RATED FORCE SERVICE 100%
(-20°C - +50°C)
50N 50N 100N 100N 60N 60N
RATED FORCE SERVICE 35%
(+50°C - +55°C)
150N 150N 300N 300N 150N 150N
MAXIMUM SPEED 24 m/min 24 m/min 12 m/min 12 m/min 20 m/min 20 m/min
RATED SPEED 20 m/min 20 m/min 12 m/min 12 m/min 18 m/min 18 m/min
MAXIMUM LEAF WEIGHT 600 kg 600 kg 1000 kg 1000 kg 800 kg 800 kg
MAXIMUM LEAF LENGHT 12 m 12 m 12 m 12 m 12 m 12 m
DOOR MAXIMUM FRICTION AT START (*) 50N 50N 150N 150N 60N 60N
OPERATING CYCLES PER DAY (IN TEST) (**) 250.000 250.000 250.000 250.000 250.000 250.000
USE INTENSIVE INTENSIVE INTENSIVE INTENSIVE INTENSIVE INTENSIVE
DEGREE OF PROTECTION IP44 IP44 IP44 IP44 IP44 IP44
WORKING TEMPERATURE
-20°C
+55°C
-20°C
+55°C
-20°C
+55°C
-20°C
+55°C
-20°C
+55°C
-20°C
+55°C
SOUND PRESSURE DURING USE <70 dB(A) <70 dB(A) <70 dB(A) <70 dB(A) <70 dB(A) <70 dB(A)
MAXIMUM ADMISSIONED GRADIENT 0,5% 0,5% 0,5% 0,5% 0,5% 0,5%
EXIT GEAR Z15/module 4 Z15/module 4 Z15/module 4 Z15/module 4 Z15/module 4 Z15/module 4
CONTROL UNIT B70/1DC B70/1DC B70/1DC B70/1DC B70/1DC B70/1DC
FORCE TO BE APPLIED ON THE MECHANI-
CAL RELEASE
130N 130N 130N 130N 130N 130N
(*) To measure with dedicated instrument.
(**) Internal test veried at the nominal values with a 6 m gate at environmental temperature of 20° C. The value shown is not the maximum value.
4.1 Product label (example)
The technical data shown in this manual do not replace those shown on the product label.
The product label is applied to the motor, by opening the release handle (see gure).
Labels must not be removed, damaged, dirty or concealed.
MADE IN ITALY
AUTOMAZIONE PER ANTE SCORREVOLI
ROGER TECHNOLOGY S.R.L.
Via S. Botticelli 8 - 31021
Bonisiolo di Mogliano
Veneto (TV) - ITALIA
P.CODE:
BH30/603/HS
V ~230
W 140
N 150
S3 35%
IP 44
LOTTO/BC TL40
IN 0001
PM OCT 2018
+55°C
-20° C
