A2,B2
Not used
NO1, COM1, NC1
30V/1,5A DC/AC relay (REL1)
NO2, COM2, NC2
30V/1,5A DC/AC relay (REL2)
Table 3. LED indicators
Name
Description
LED1
Normal mode
LED2
ON: Service mode (low level configuration)
Pulsing: RAM or Flash SPI memory error
LED3
ON: High level configuration error
Pulsing: Low level configuration error
LED4
No card or memory card error
LED5
Event log error
LED6
License error
LED7
Not used
LED8
Pulsing: Proper functioning

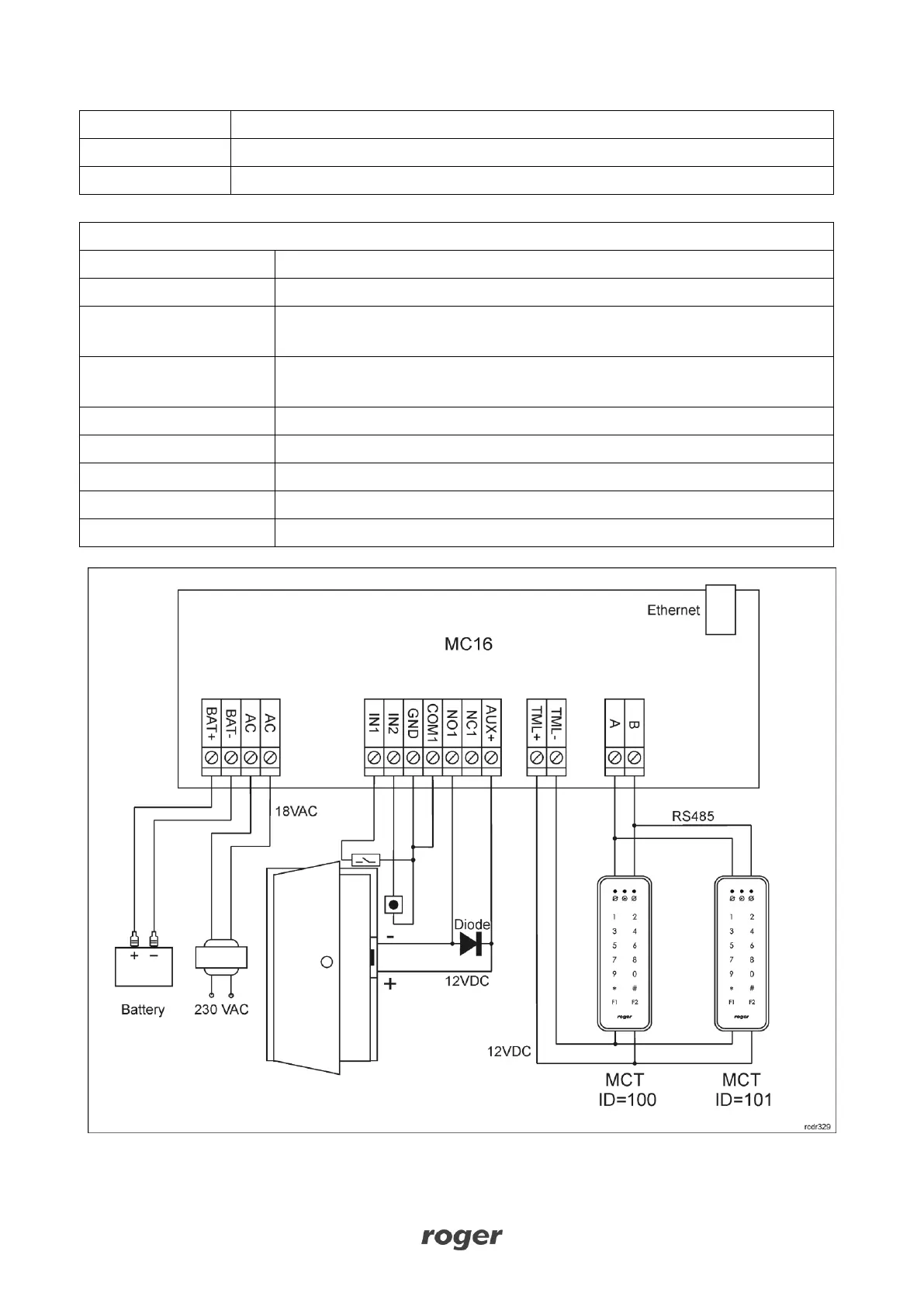

Fig. 3 Typical connection diagram for MC16-PAC-1 controller with MCT readers
