MC16 Operating Manual 09.01.2020
Outputs
The controller offers 6 transistor open collector type outputs (15V/150mA rated) and 2 relay outputs with
NO/NC contacts (30V/1.5A DC/AC rated). Additionally 2 transistor outputs CLK and DTA are available if
they are not used for RACS CLK/DTA interface. Electric parameters such as polarity are configured within
low level configuration (RogerVDM). Function are assigned to outputs within high level configuration (VISO).
Multiple functions with different priorities can be assigned to the same output at the same time.
The controller can activate not only outputs on its board but also outputs located at peripheral devices
(MCT, MCX).
Memory card and license
The controller is equipped with FLASH memory card which among others offers event buffer (8 million) and
it stores license file and configuration of the controller. Memory card and adequate license are necessary for
controller functioning. If needed, the license.cfg file can be copied manually into memory card by means of
memory card reader or in case of license upgrade it can be uploaded from VISO software by right clicking
the controller and then selecting Commands->Upload license file.
2. INSTALLATION

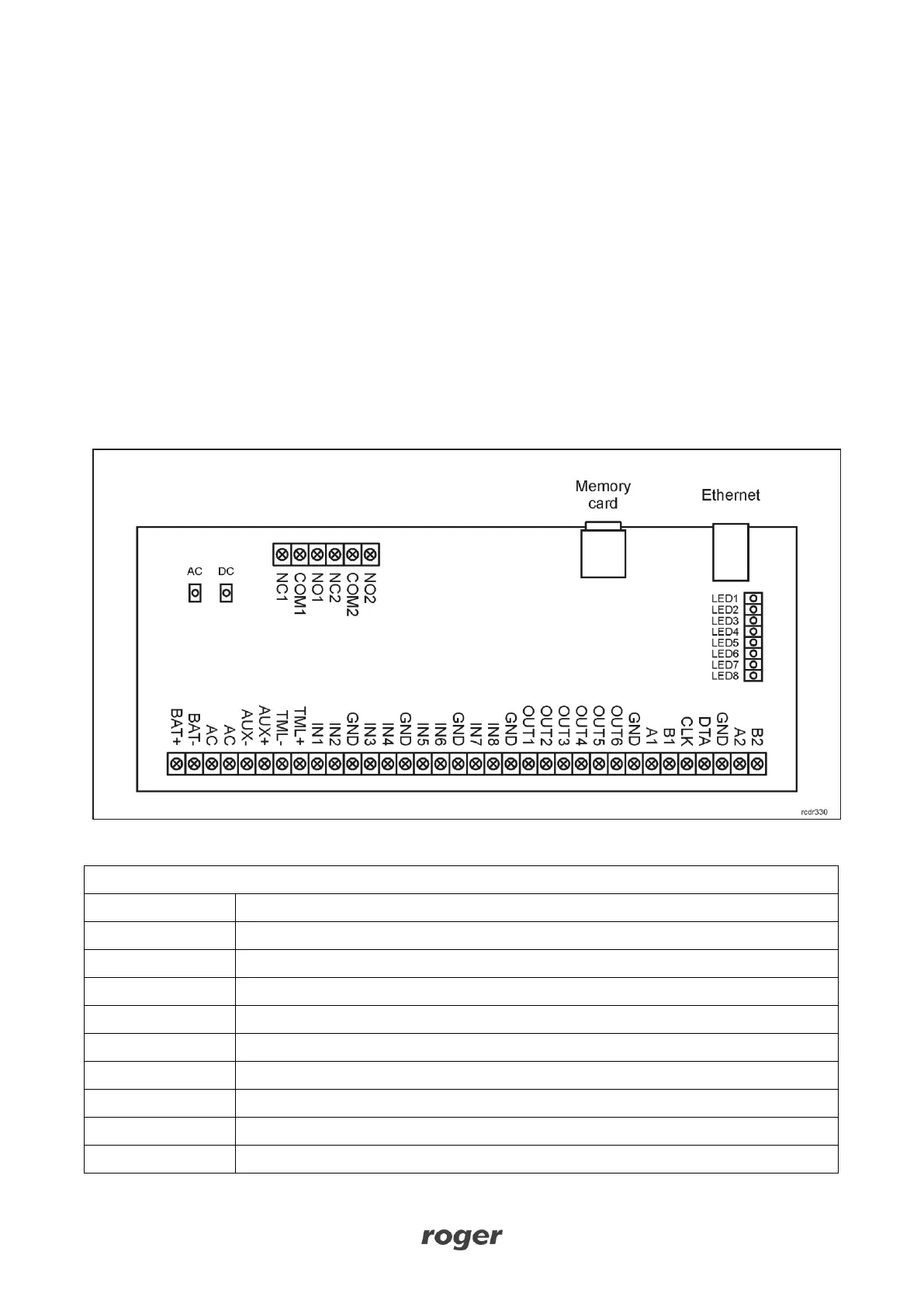

Fig. 2 MC16 controller board
Table 2. MC16 screw terminals
18VAC or 24VDC input supply
12VDC/1,0A output supply (door lock)
12VDC/0,2A output supply (readers)
15VDC/150mA transistor output lines
