Setup
1MA236_0e Rohde & Schwarz Remote Operation of Windows Based T&M Instruments with Android Tablets 10
Wireless Settings:

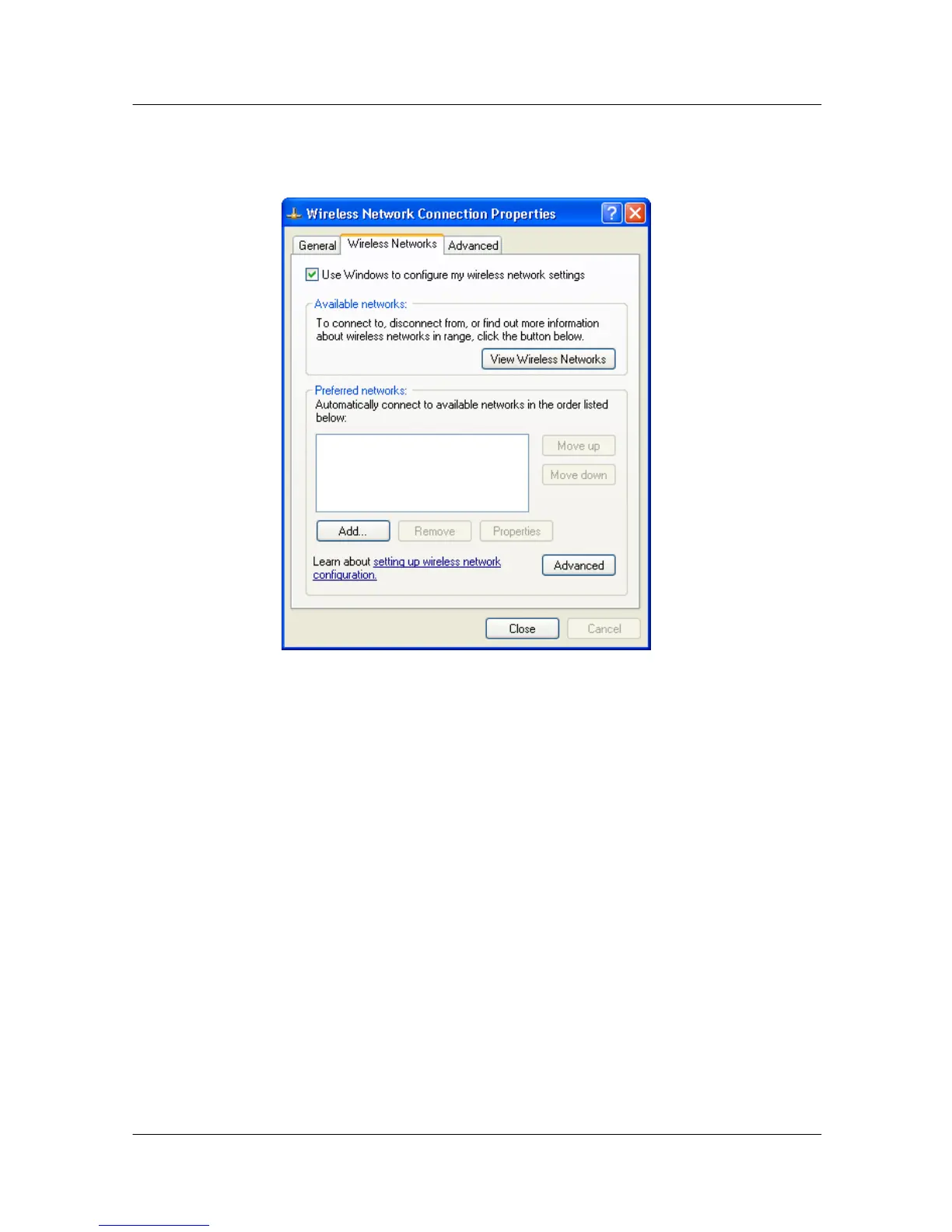

Fig. 6: Wireless network connection properties
5. In the " Wireless Network Connection Properties" window select the "Wireless
Networks" tab.
6. Make sure the top box is checked ("Use Windows to configure my wireless network
settings").
7. Click on the "Advanced" button which opens another window.
8. Select "Computer-to-computer (ad hoc) networks only" mode and then "Close" the
window.
9. Click on the "Add…" button which opens another window.
10. Configure the "Wireless network properties" on the "Association" tab.
Enter the desired network name (e.g. "SFC-100123").
This network name will appear in the list of Wi-Fi networks on the tablet.
Check "Connect even this network is not broadcasting".
Select the appropriate network authentication and encryption method for the
connection, e.g. "Open" and "WEP".
Uncheck “The key is provided for me automatically”.
Enter a password consisting of exactly 13 characters in the "Network key" field.
You will have to enter this password at the tablet during establishment of the
WLAN connection.
11. Click "OK" and "OK" to complete the configuration and close the configuration win-
dows.
