Applications
R&S
®
RTM3000
171User Manual 1335.9090.02 ─ 09

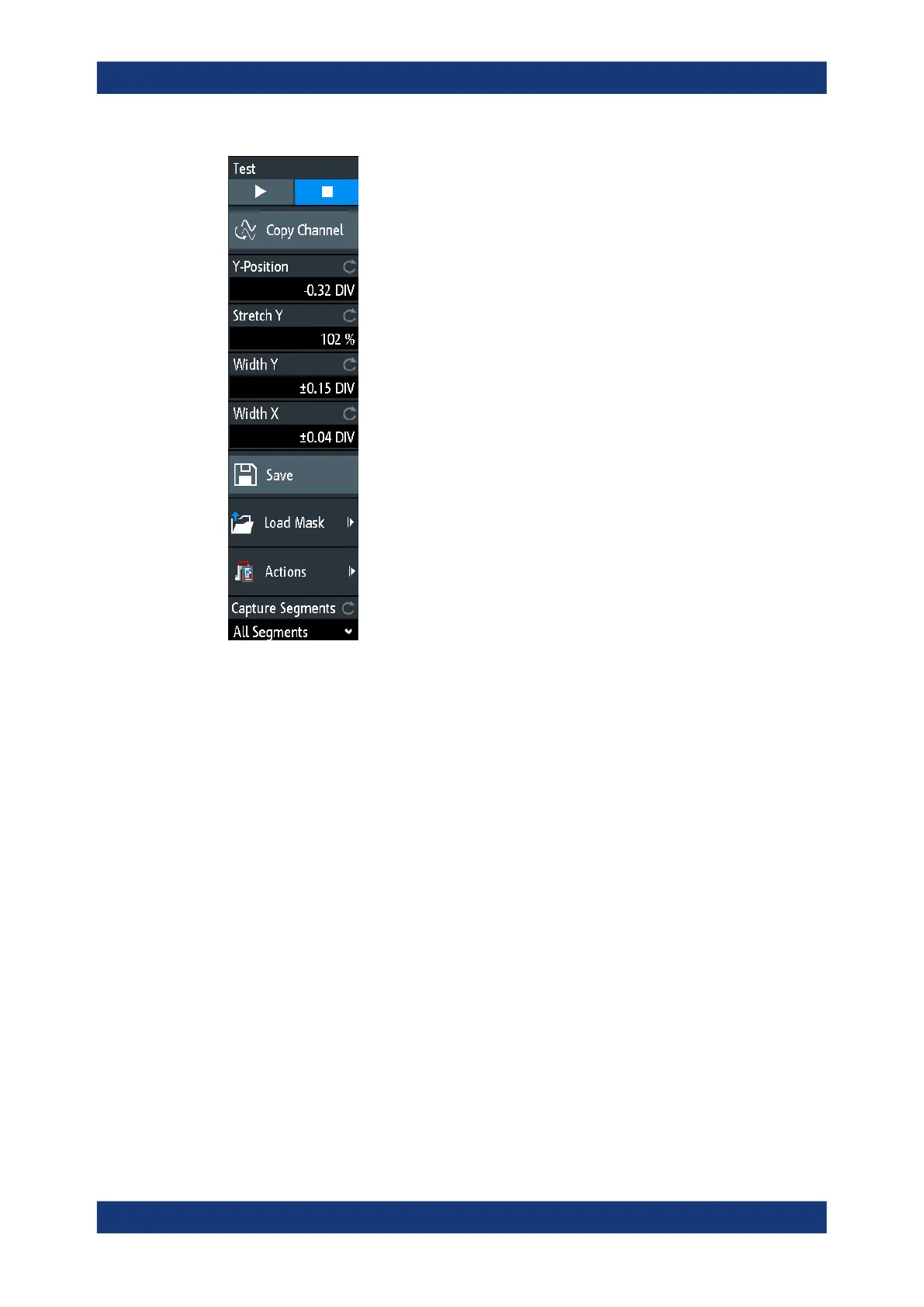

Test
Performs a mask test for the selected signal, i.e. the signal amplitudes are compared
with the specified mask. If the amplitude exceeds the limits of the mask, a violation is
detected.
Remote command:
MASK:TEST on page 541
Copy Channel
Creates a mask from the envelope waveform of the selected channel and stores it in
the instrument.
Remote command:
MASK:SOURce on page 536
MASK:CHCopy on page 537
Y-Position
Moves the mask vertically within the display. The current position is given in divisions.
Remote command:
MASK:YPOSition on page 537
Stretch Y
Changes the vertical scaling to stretch or compress the mask in y-direction.
Remote command:
MASK:YSCale on page 537
Mask testing
