Serial bus analysis
R&S
®
RTM3000
306User Manual 1335.9090.02 ─ 09
The instrument captures and decodes the signal according to the protocol definition
and the configuration settings.
The color-coding of the various protocol sections and errors simplifies the interpretation
of the visual display. The decode information condenses or expands, depending on the
horizontal scale. Various data formats are available to show the result values.

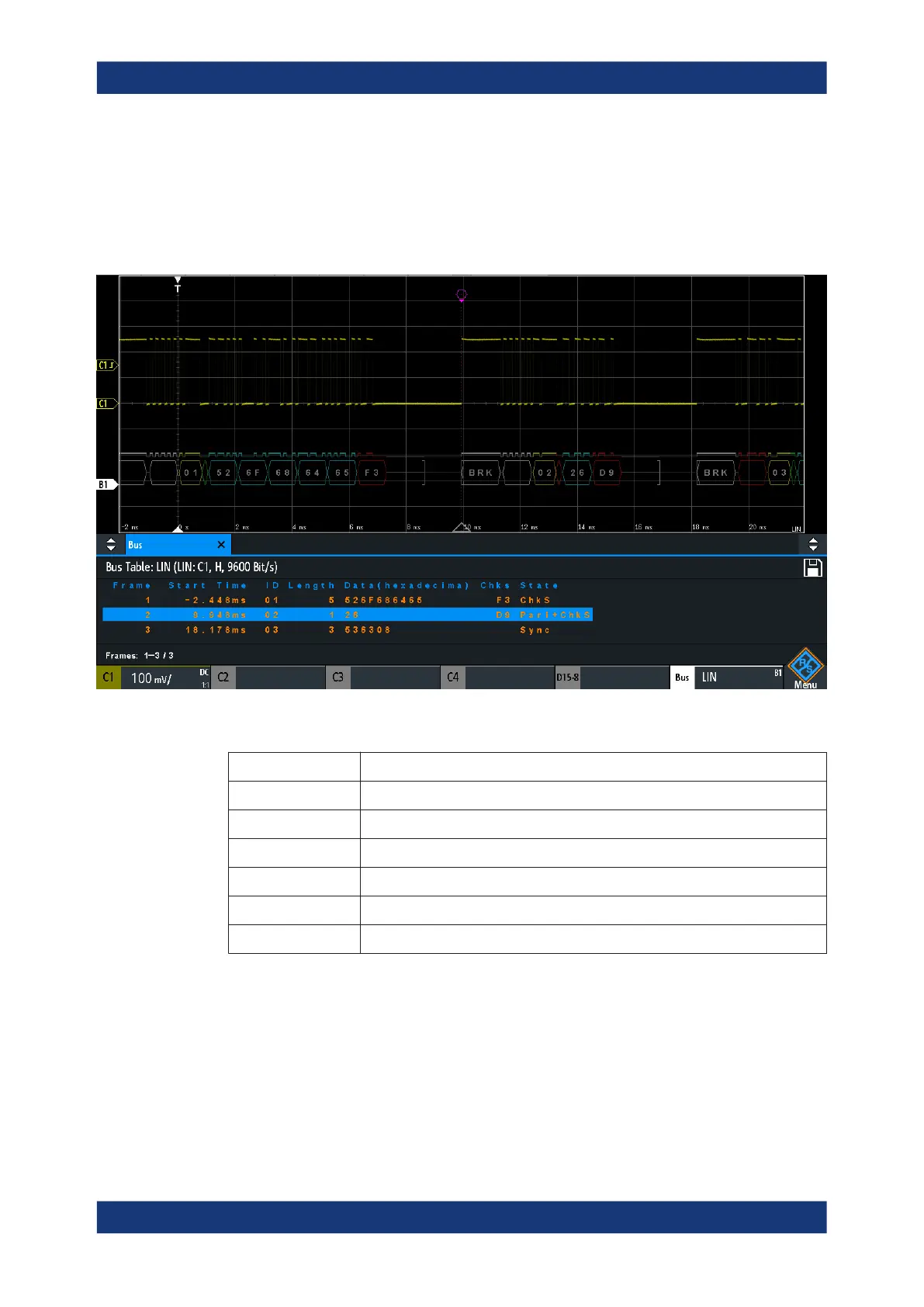

Figure 13-33: Decoded LIN signal with bus table, trigger on frame start
Table 13-5: Content of the LIN frame table
Column Description
Start time Time of frame start in relation to the trigger point
ID Identifier value, hexadecimal value
Length Number of data bytes
Data Hexadecimal values of the data bytes
Chks Checksum value
State Overall state of the frame.
Remote commands are described in Chapter 17.11.6.3, "LIN - decode results",
on page 658.
13.6.5 Search on decoded LIN data
Using the search functionality, you can find the same events in the decoded data which
you also can trigger on. Unlike trigger, the search finds all events in an acquisition that
fulfill the search condition. The results are listed in a table and and can be saved to file.
