Serial bus analysis
R&S
®
RTM3000
257User Manual 1335.9090.02 ─ 09

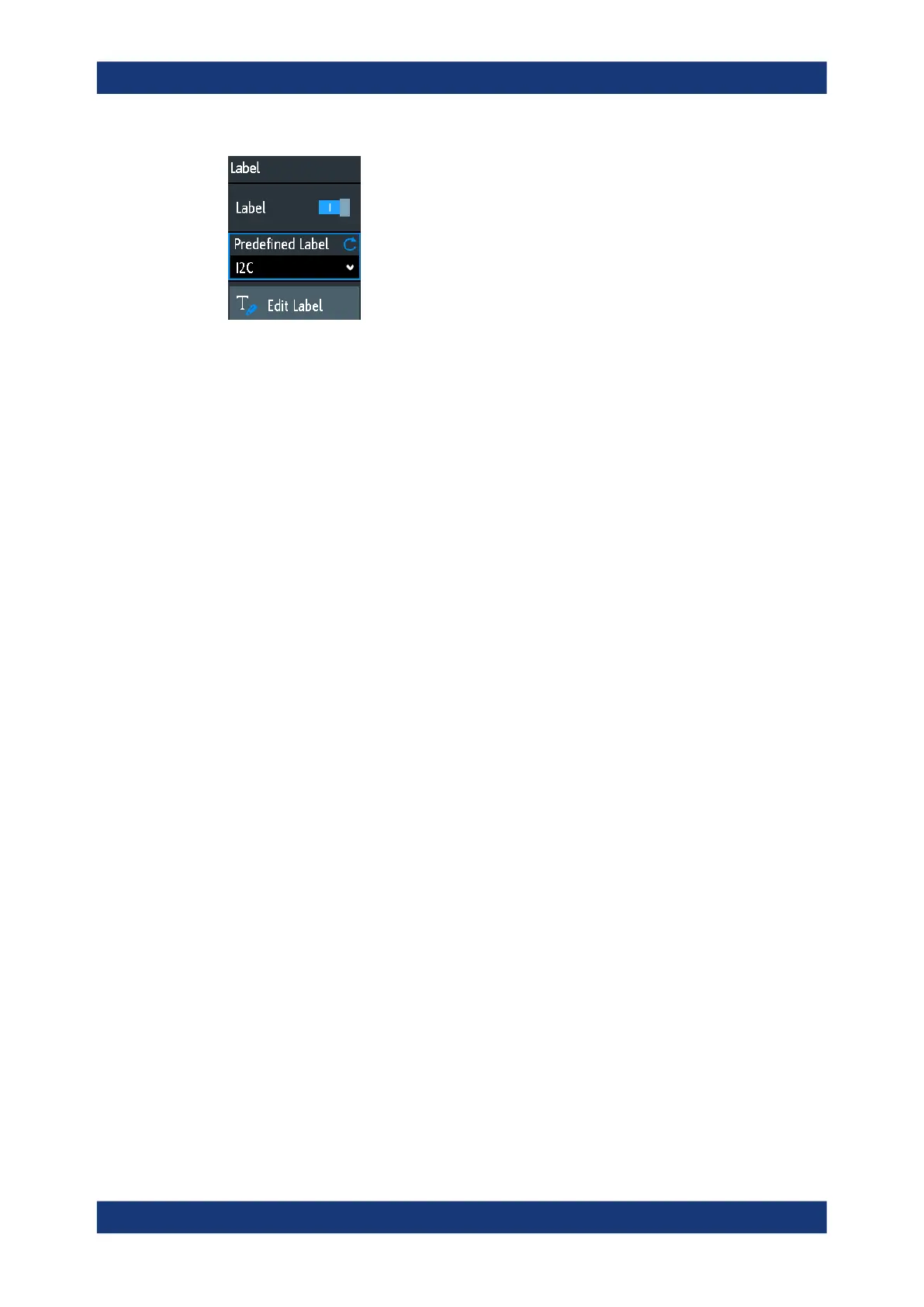

Label
Displays or hides the bus label. The bus label is shown on the right side of the display
at the bus signal, and in the bus table. The bus and its label are only visible, if
"Decode" is enabled.
You can enter a label text in several ways:
●
Select a string from the library list with "Predefined Label".
●
Enter a user-defined text using "Edit Label".
Remote command:
BUS<b>:LABel:STATe on page 605
Predefined Label
Selects a predefined label text. You can edit the text with "Edit Label".
Edit Label
Opens on-screen keypad to enter a label text. If you previously have selected a prede-
fined label, it is already written in the entry line, and you can modify it.
The maximum name length is 8 characters, and only ASCII characters provided on the
on-screen keypad can be used.
Remote command:
BUS<b>:LABel on page 605
13.1.5 Label list
For all protocols using ID or address identification, it is possible to create label lists
containing addresses or IDs, a symbolic name for each node (symbolic label), and
some protocol-specific information.
You can also use the label list to trigger on an identifier or address. Instead of entering
the value, you select the name, which is defined in the label list.
The format of label list files is PTT.
Label lists are protocol-specific. They are described in the corresponding protocol
chapters:
●
Chapter 13.5.6, "CAN label list", on page 296
●
Chapter 13.6.6, "LIN label list", on page 309
Basics of protocol analysis
