Logic analyzer (option R&S RTM-B1, MSO)
R&S
®
RTM3000
400User Manual 1335.9090.02 ─ 09

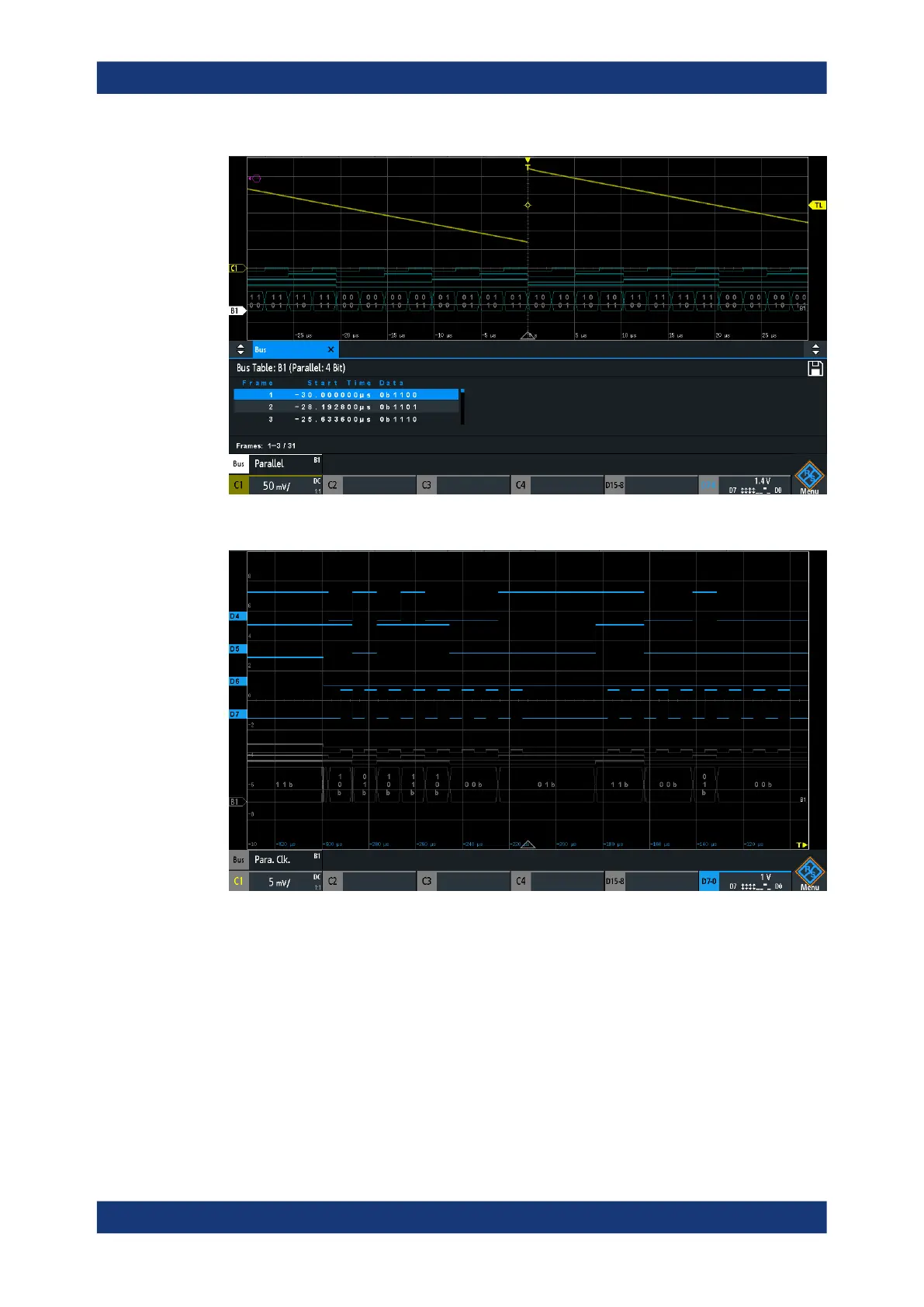

Figure 15-3: Decoded Parallel bus signal with bus table
Figure 15-4: Decoded Parallel clocked bus signal
The bus table shows the data of decoded frames and the corresponding start time.
Remote commands are described in Chapter 17.13.2.3, "Parallel buses - decode
results", on page 777.
Parallel buses
