CHECKMATE™
A series of > symbols will accumulate from left to right across the screen to indicate the
progression of the measurement function At the conclusion of the measurement function
(approximately 30 seconds) the CheckMate™ will display the probe Metal Loss (MLoss:)
in angstroms, the reading in divisions (Div:) and the simulated check reading (Chk:) of
800 divisions (TF5 and TF50 high-sensitivity probes do not provide a check reading). A

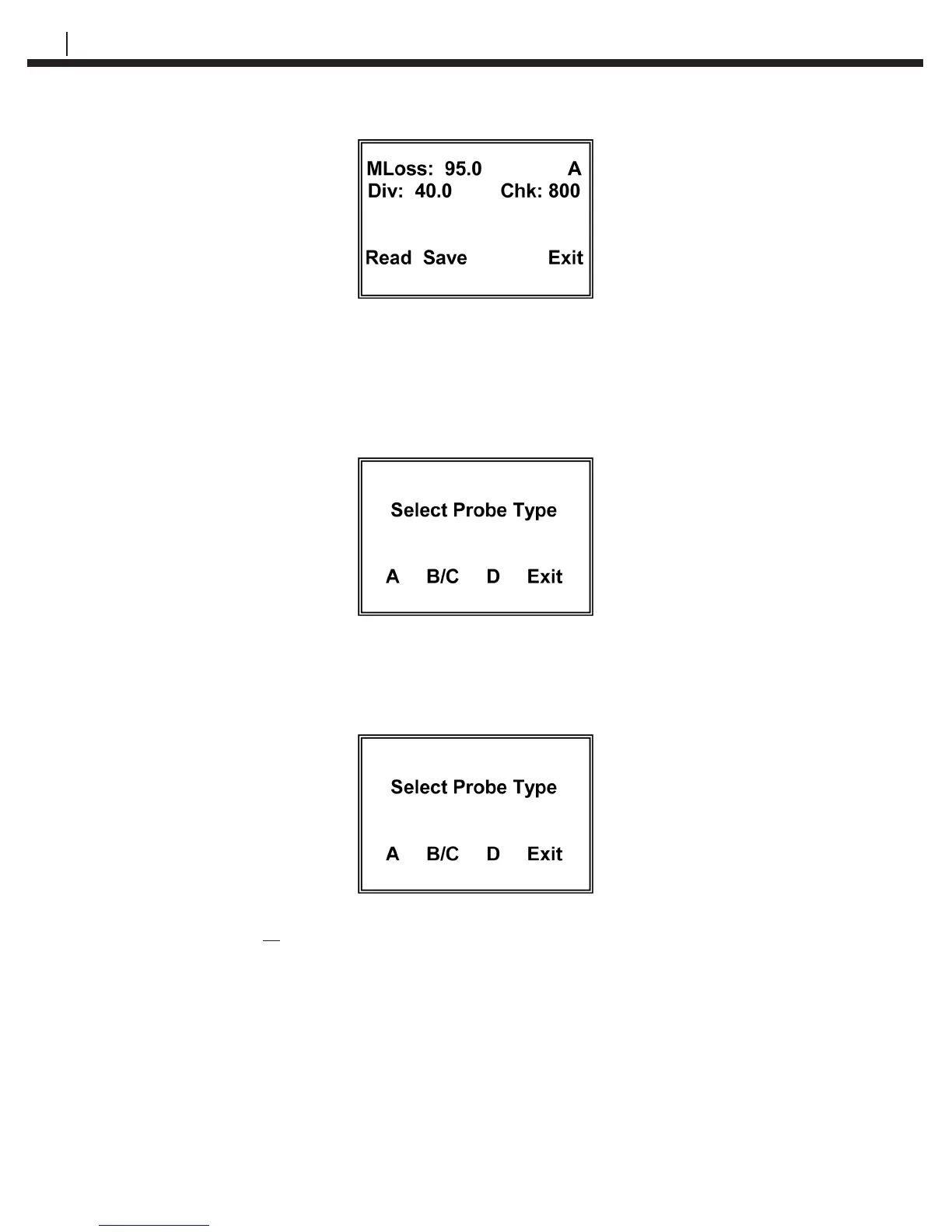

typical display is shown below:
If OTHER is selected from the probe type selections on the Select Probe Type display
the CheckMate™ will go to a second Select Probe Type display that allows the select
the specic probe element conversion equation required and enter specic probe spans
(in mils) that may be special. The display is shown below:
Select and press A (F1) for Wire Loop type probes or press B/C (F2) for Tube Loop/Strip
Loop type probes or D (F3) for Cylindrical type probes. If you are unsure of the element
type, this information can be found on the probe packaging, etched on the probe body
adjacent to the connector or in Table 5.1 Probe Type Identication.
