Plastic Cover
Vertical Support

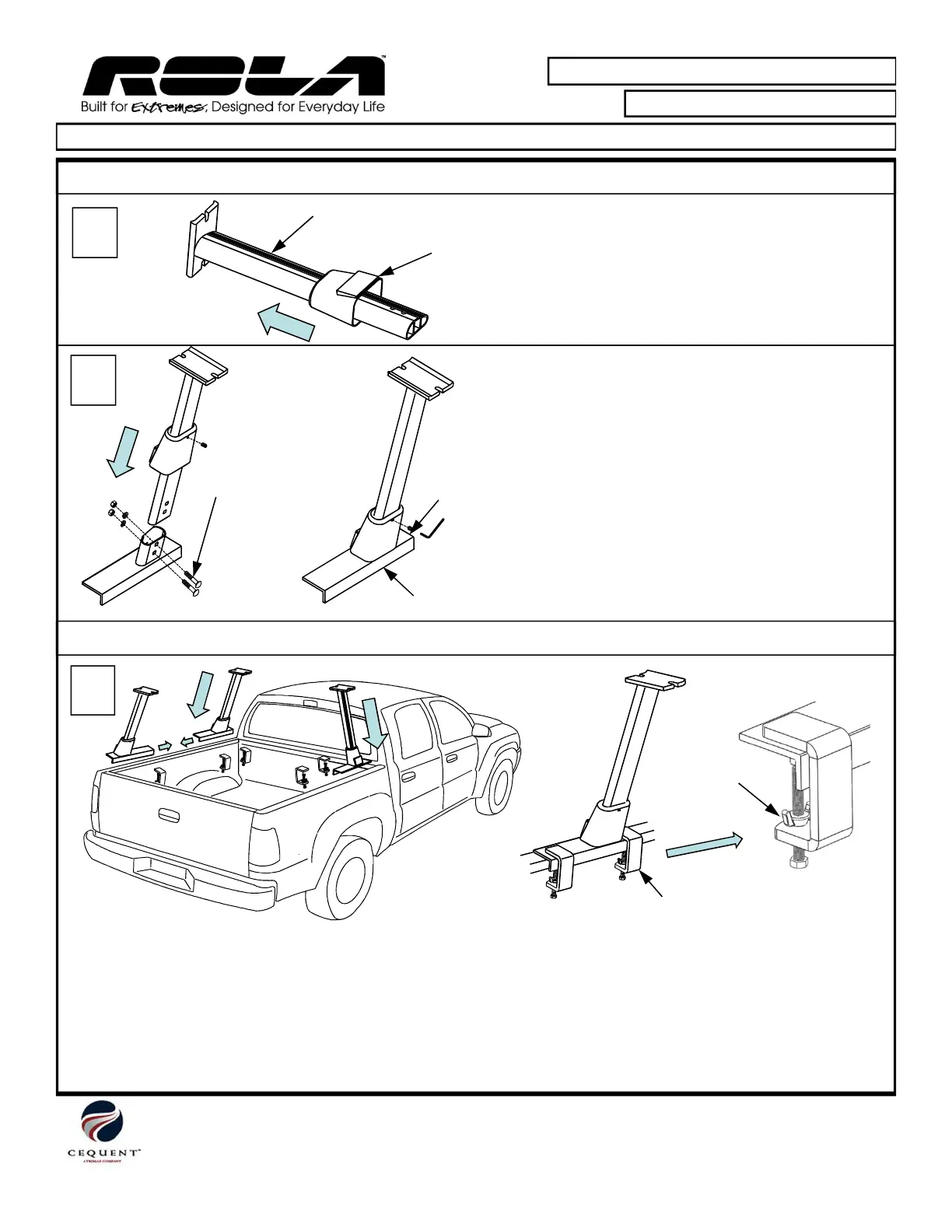

• Slide plastic cover over vertical support
as shown.
1
2
Please read all instructions carefully before assembly, installation and/or use of this product.
• Slide vertical support and cover into Support
Base.
• Install two 3/8-16 x 2” long carriage bolts
through the two square holes in back of base
and through vertical support.
• Install the 3/8 lock washers and hex nuts onto
carriage bolts.
• Securely tighten all 3/8-16 fasteners
(approximately 25 Lb.-Ft. )
• Slide cover into position and secure with
¼-20 set screw using a 1/8” hex key wrench.
DO NOT over tighten.
• Repeat steps for all four supports.
3/8-16 x 2” carriage bolt
3/8 Lock washer
3/8 Hex nut
(2) Places
¼-20 set screw
Support Base
Assembly of Vertical Supports
59742
Pick-Up-Rack™
Cequent Performance Products, Inc.
Plymouth, MI 48170
Technical Service: (888) 521-0510
59742N Rev D 4-24-13
Printed in China
Page 3 of 6
3
Vehicle Installation
• Clean bed rails.
• Place Vertical Supports onto bed rail in desired location.
The long end of base must point towards the inside of
truck bed.
TIP: Mounting location is different for each bed design and
may require adjustment to avoid interference with
mounting hardware.
• Attach clamps and hand tighten.
• Ensure both support bases are aligned front to
back on bed rail, both sides.
• Confirm position of supports on bed and securely
tighten clamps.
• Tighten wing nut against bottom of clamp.
Clamp
Wing nut
** Note: Some bed liners or bedrail covers may require alteration. It may be necessary to cut away a section of the liner on the underside
of the bedrail.
