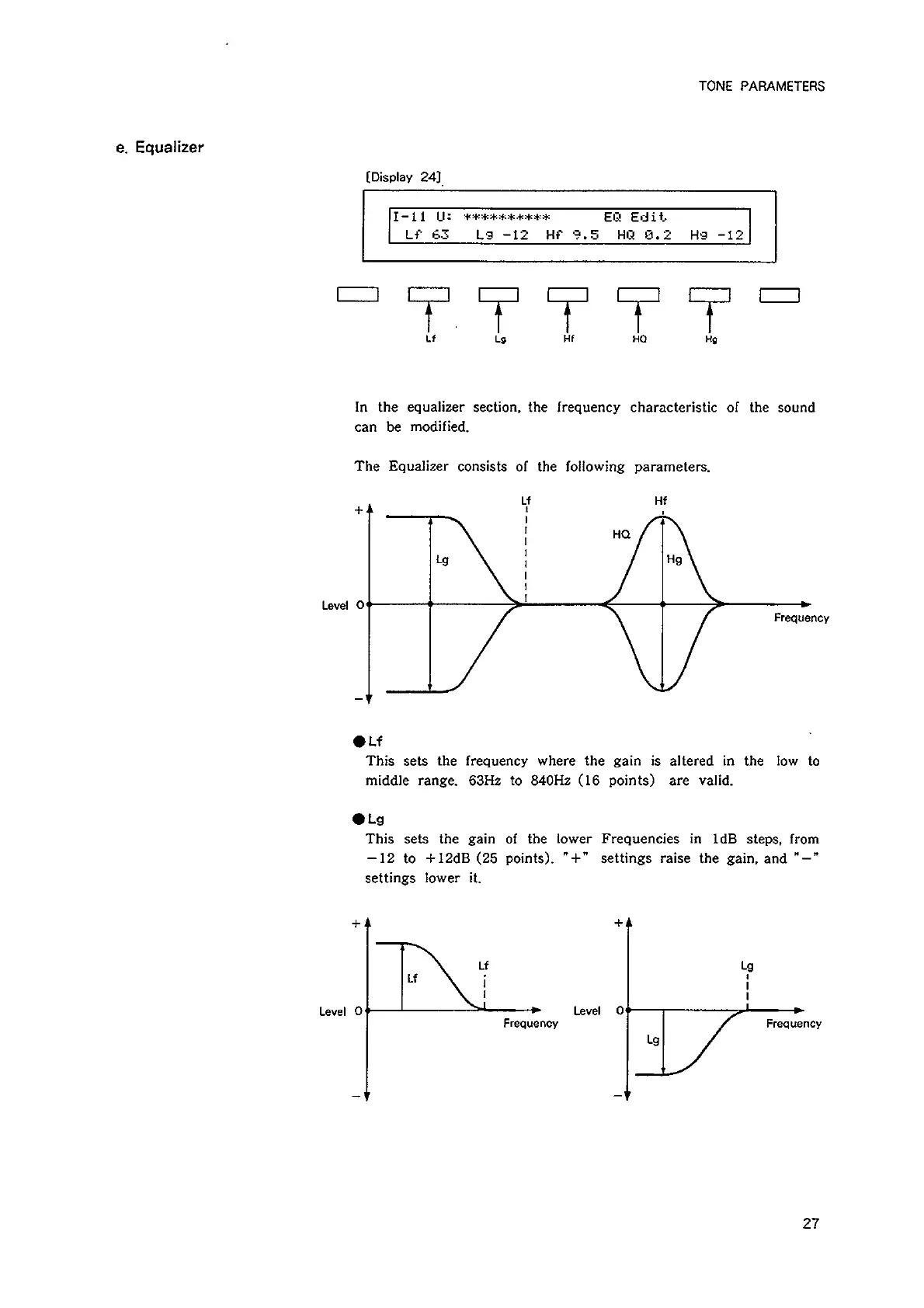

e, Equalizer
TONE PARAMETERS
(Display 24),
a
In the equalizer section, the frequency characteristic of the sound
can be modified,
The Equalizer consists of the following parameters.
u
i
|
I
|
1
q
1
i}
i
qo Hf
Level 0
Frequency
@Lf
This sets the frequency where the gain is altered in the low to
middle range. 63Hz to 840Hz (16 points) are valid.
@lg
This sets the gain of the lower Frequencies in 1dB steps, from
—12 to +12dB (25 points), "+" settings raise the gain, and "—-”
settings lower it.
+ +
Lf Lg
i i
1 i}
Level O Level 0
Frequency Frequency
lg
27
