You can prepare two R-44 units and connect them with control sync to record with up to 8 channels.
● Connections
Connect both R-44 units via the Control sync connector. A stereo mini cable is required to connect R-44
units via the R-44 Control sync connector. Please purchase separately.
● System settings
Transmission Side Setup
1. Press the R-44 [MENU] button.
2. In 5 System Setup, set Sync Mode to Master.
* For more about system settings, refer to “System setup” (p. 60).
Receiving Side Setup
1. Press the R-44 [MENU] button.
2. In 5 System Setup, set Sync Mode to Slave.
* For more about system settings, refer to “System setup” (p. 60).
This completes the setting for remote linking.
● Recording
Press the [REC] button on the transmitting R-44 to start the recording.
See “Recording” (p. 29) for information about recording settings.
Recording standby can also be linked remotely.
See “Recording standby” (p. 31) for information about recording standby.
* When using remotely linked recording, be sure that Rec Freq. in Recording Setup is the same for both R-44 units.
* Remote linking does not guarantee the exact same REC start time
* The receiving R-44 cannot record from digital input.

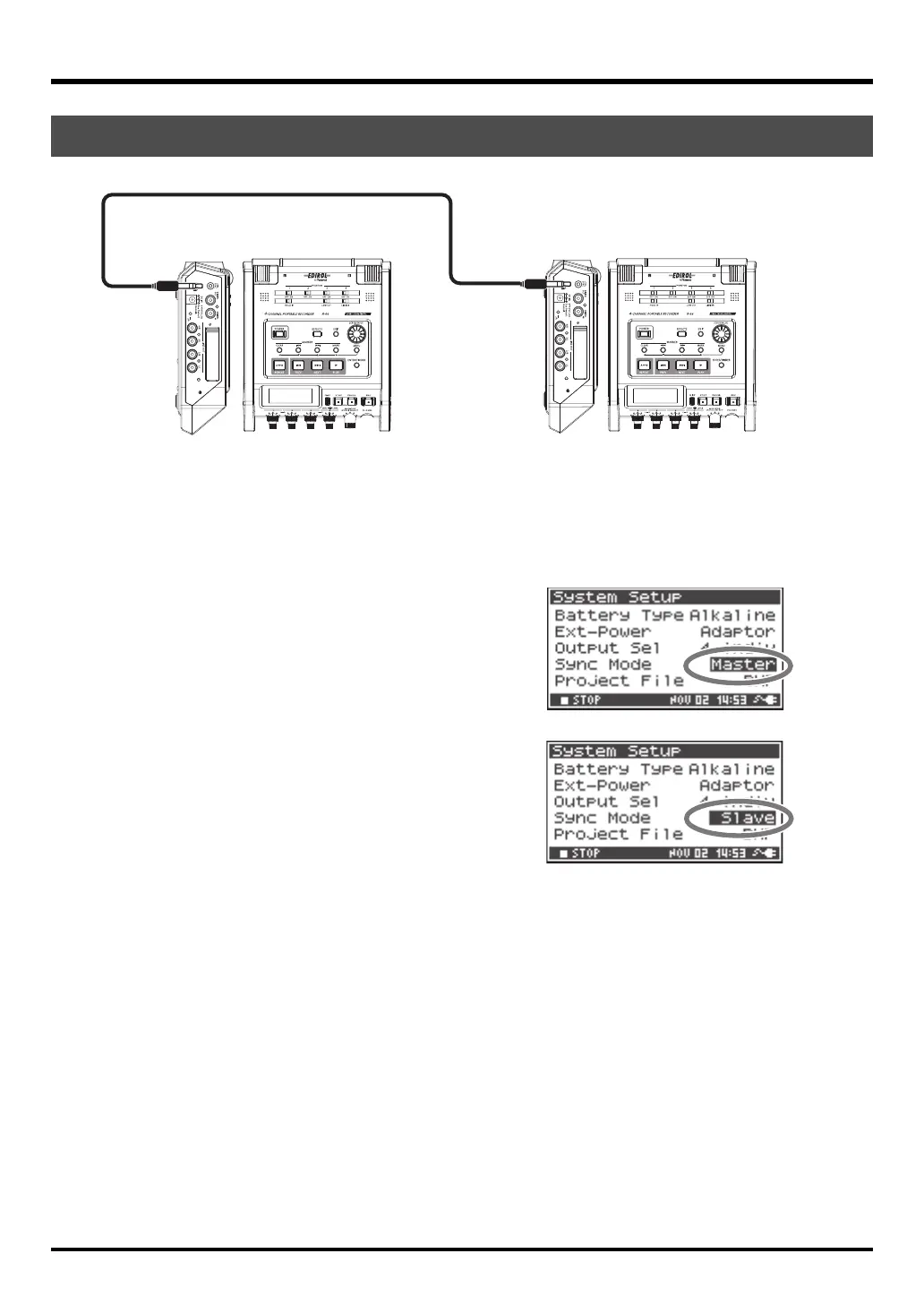

Remotely linking two connected R-44 units
Transmission Side
Receiving Side
CTRL SYNC
CTRL SYNC
