19
Jul. 2015 JD-XA

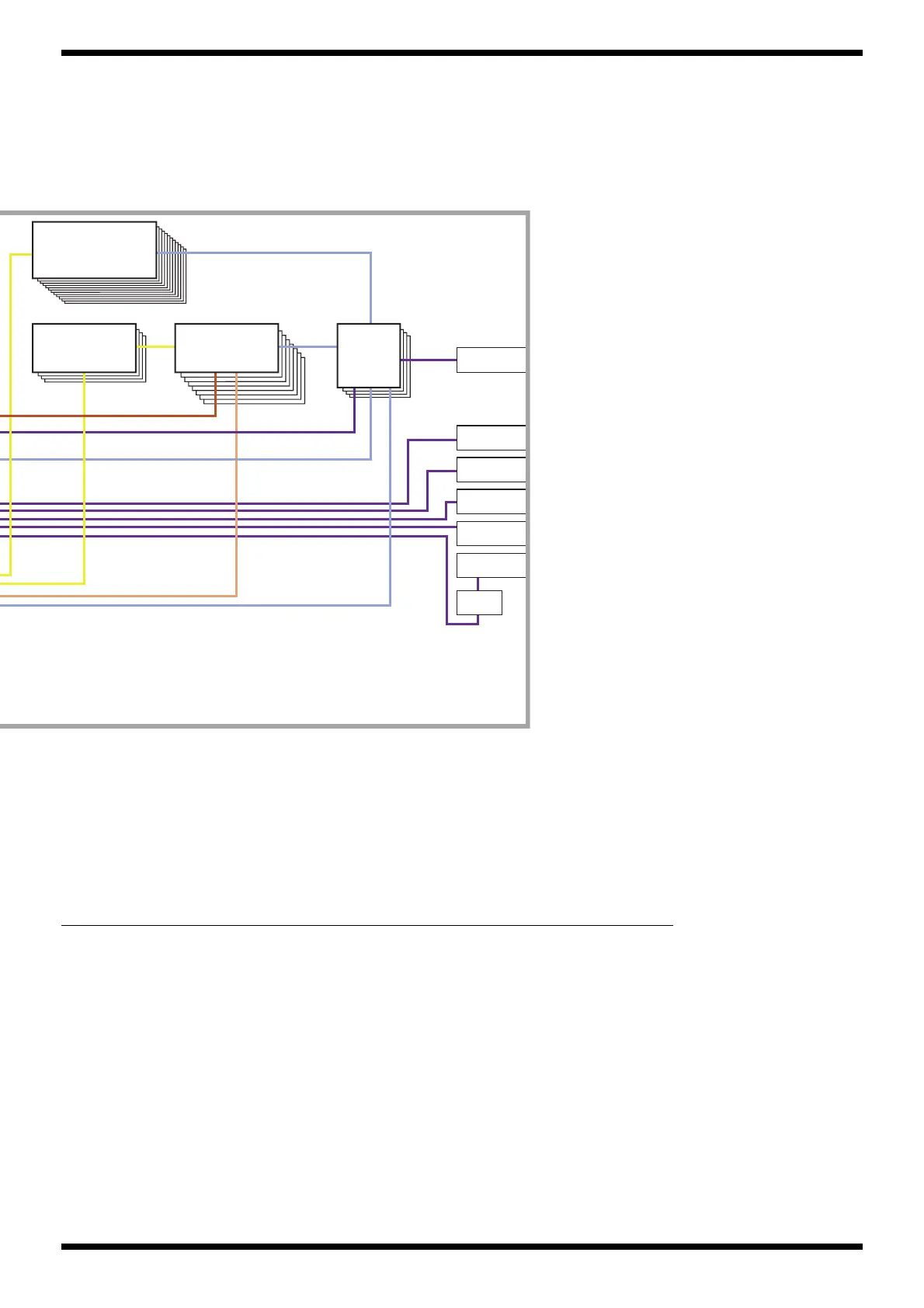

fig.WIRING-BLOCK.eps@R
ANALOG JACKBOARD
ANALOG DRY
OUT JK7
MAIN OUT L
JK3
MAIN OUT R
JK4
PHONSE OUT
JK6
CLICK OUT
JK5
MIC IN
JK2
VR1
SHIFT RESISTOR x4
TC74VHC9595FK
IC45/53/54/55
MPX x8
TC74VHC4051AFK
IC44/46/47/48/49
/50/51/52
ANALOG
SYNTH
CIRCIT x4
SHIFT RESISTOR x12
TC74VHC9595FK
IC300/301/302/304/305/306
/308/309/310/312/313/314
No. Part Code Part Name Description Q’ty
1 04569890 WIRING CA ASSY 26WAY 400MM W/2 HX2 1
2 5100045471 WIRING 1061#28 4X100-PHR-PHR-F 1
3 5100046507 FLAT CABLE SML2CD-24X360-BDX8(BL)-P1.0-S 1
4 5100046508 FLAT CABLE SML2CD-22X550-BDX8(BL)-P1.0-S 1
5 5100046512 WIRING 1061#28 14X450-PHR-PHR-F 1
6 5100022474 FLAT CABLE SML2CD-20X40-BDX8(BL)-P1.0 1
7 5100046509 FLAT CABLE SML2CD-24X40-BDX8(BL)-P1.0-S4 1
8 5100046506 FLAT CABLE SML2CD-38X40-BDX8(BL)-P1.0-S4 1
9 5100046511 WIRING 1061#28 8X40-PHR-PHR-F 1
10 5100046513 WIRING 1061#28 8X450-PHR-PHR-F 1
11 5100046504 FLAT CABLE SML2CD-14X70-BDX8(BL)-P1.0-S4 4
12 5100043932 WIRING 1061#28 4X60-PHR-PHR-F 2
13 5100046505 FLAT CABLE SML2CD-14X80-BDX8(BL)-P1.0-S4 1
14 5100046510 WIRING 1061#28 7X110-PHR-PHR-F 1
15 5100039038 WIRING 1061#28 3X80-PHR-PHR-F 1
