Jul. 2015 JD-XA

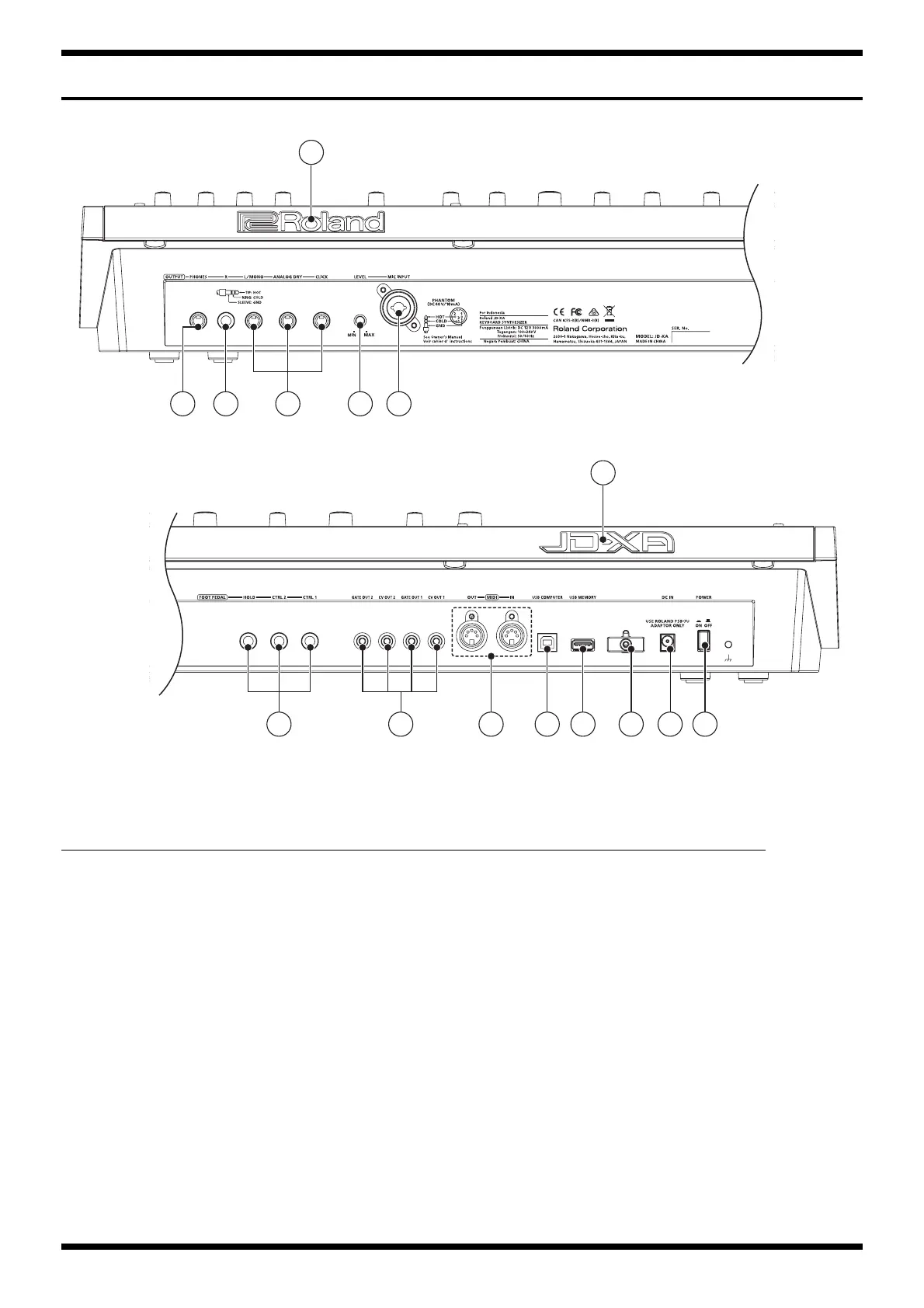

Location of Controls (Rear)
fig.Panel-rear.eps
fig.Panel-rear.eps
1
1310 12 1113
No. Part Code Part Name Description Q’ty
1 5100044791 ROLAND BADGE 1
2 5100044793 JD BADGE 1
3 5100037825 G S-BUTTON BLK (710-12058-15-00) 1
04904123 PUSH SWITCH AC POWER SUPPLY 400-07040-01-00(PWL-2P2T-6SBP 1
4 02900312 DC JACK HEC0470-01-640 1
5 5100027106 CORD HOOK 40516-014 1
6 04459190 USB CONNECTOR A TYPE FEMALE YKF45-0033N 1
7 5100010665 USB CONNECTOR B TYPE FEMALE 2549A-04G2T(610-02001-04-00) 1
8 13429676 MIDI CONNECTOR YKF51-5048V(TWIN) 1
9 02456390 3.5MM JACK STEREO YKB21-5290 4
10 13449252 6.5MM JACK YKB21-5006 (STEREO W/SW) 4
11 5100014678 CANNON CONNECTOR CT/PJ-02-EP 1F
12 04901712 ROTARY POTENTIOMETER RK09K1110D4S 1
13 13449275 6.5MM JACK YKB21-5074 4
2
345678910
