Roland JD-XA - Location of Controls (Panel L)

4
Jul. 2015 JD-XA

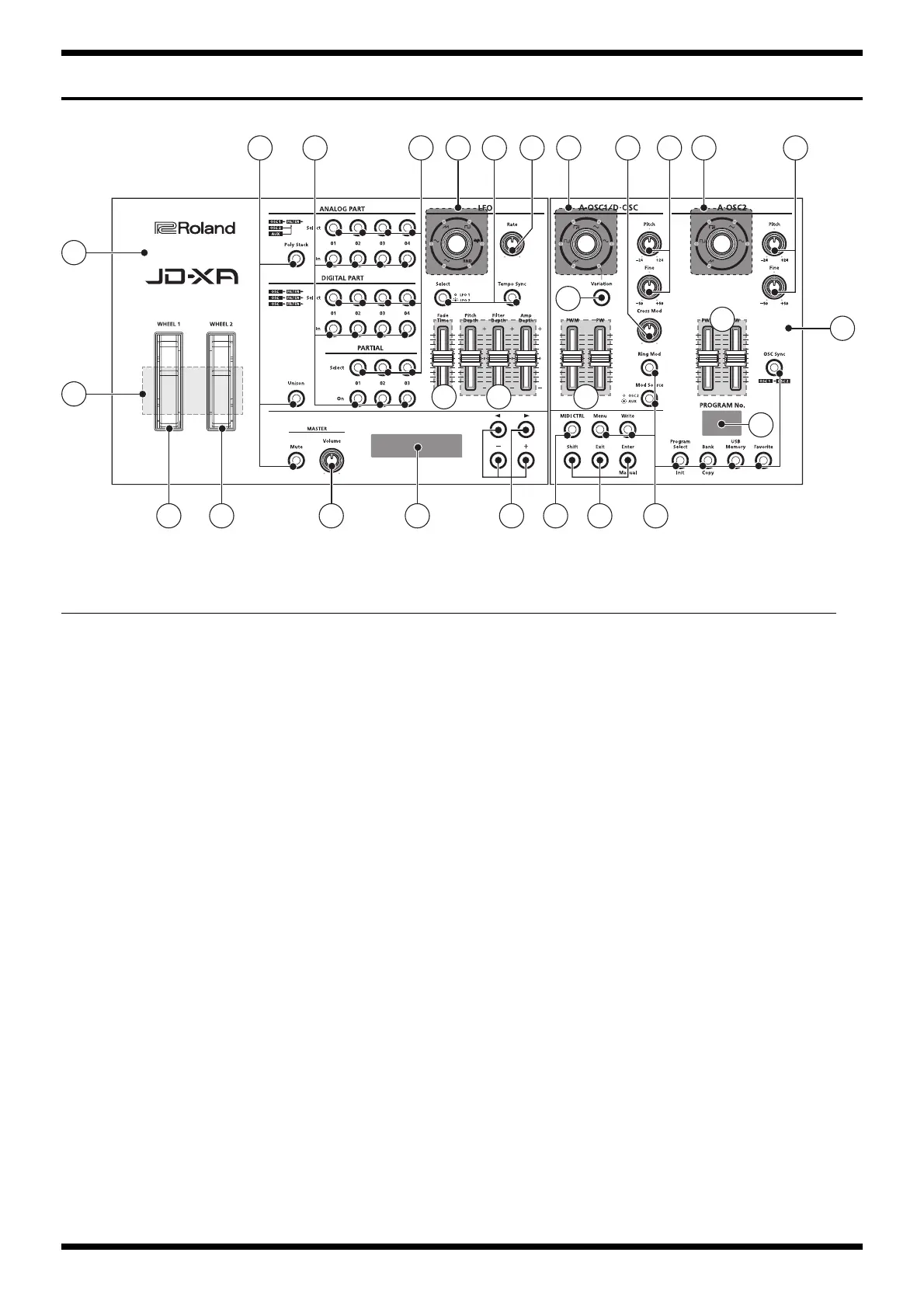

Location of Controls (Panel L)
fig.Panel-L.eps
8 9 10
19
1
5
11
16 16
16
17
143 4
2
12
18
5
15 15145
12 1213
1476
No. Part Code Part Name Description Q’ty
1 5100042388 PANEL SHEET A 1
2 5100042391 PANEL SHEET B 1
5100042659 BENDER WHEEL ASSY 1
* This unit includes the following parts.
3 ******** PITCH WHEEL ASSY 1
4 ******** MOD WHEEL ASSY 1
5 5100042395 ZT C-KEYTOP SD1H BLK/CLR 14
02781634 TACT SWITCH SKRGAED010 14
5100036720 LED WW-OR190TS-J 14
6 5100042395 ZT C-KEYTOP SD1H BLK/CLR 11
02781634 TACT SWITCH SKRGAED010 11
5100036720 LED WW-OR190TS-J 11
5100036498 LED WW-GIS190TS-G 11
7 5100042395 ZT C-KEYTOP SD1H BLK/CLR 11
02781634 TACT SWITCH SKRGAED010 11
5100041421 LED WW-BIS190TS-G 11
8 5100042401 ZT R-KNOB MF BLK/SLV 1
5100041025 ENCODER EC18AGA20402 1
5100036720 LED WW-OR190TS-J 6
9 5100042401 ZT R-KNOB MF BLK/SLV 1
5100041025 ENCODER EC18AGA20402 1
5100036720 LED WW-OR190TS-J 6
10 5100042401 ZT R-KNOB MF BLK/SLV 1
5100041025 ENCODER EC18AGA20402 1
5100036720 LED WW-OR190TS-J 5
11 5100041314 LCD 221-1162-2123 1
5100010674 DISPLAY CUSHION 1
5100044220 LCD SHIELD SHEET 1
40122534 DOUBLE-FACED TAPE #500 W3MM 20M 136P -
12 5100042396 ZT C-KEYTOP SX1H BLK 8
02781634 TACT SWITCH SKRGAED010 8
13 5100042395 ZT C-KEYTOP SD1H BLK/CLR 1
02781634 TACT SWITCH SKRGAED010 1
5100036498 LED WW-GIS190TS-G 1
14 5100042398 ZT R-KNOB SF BLK/SLV 3
5100037792 R-KNOB ESCUTCHEON CLR 3
5100041032 ROTARY POTENTIOMETER XV09223NPV25F972Z10K/I 3
5100036720 LED WW-OR190TS-J 3
15 5100042398 ZT R-KNOB SF BLK/SLV 4
5100037792 R-KNOB ESCUTCHEON CLR 4
5100041031 ROTARY POTENTIOMETER XV09223NPV25F972Z10KCC/I 4
5100036720 LED WW-OR190TS-J 4
