Roland JD-XA - Page 5

5
Jul. 2015 JD-XA

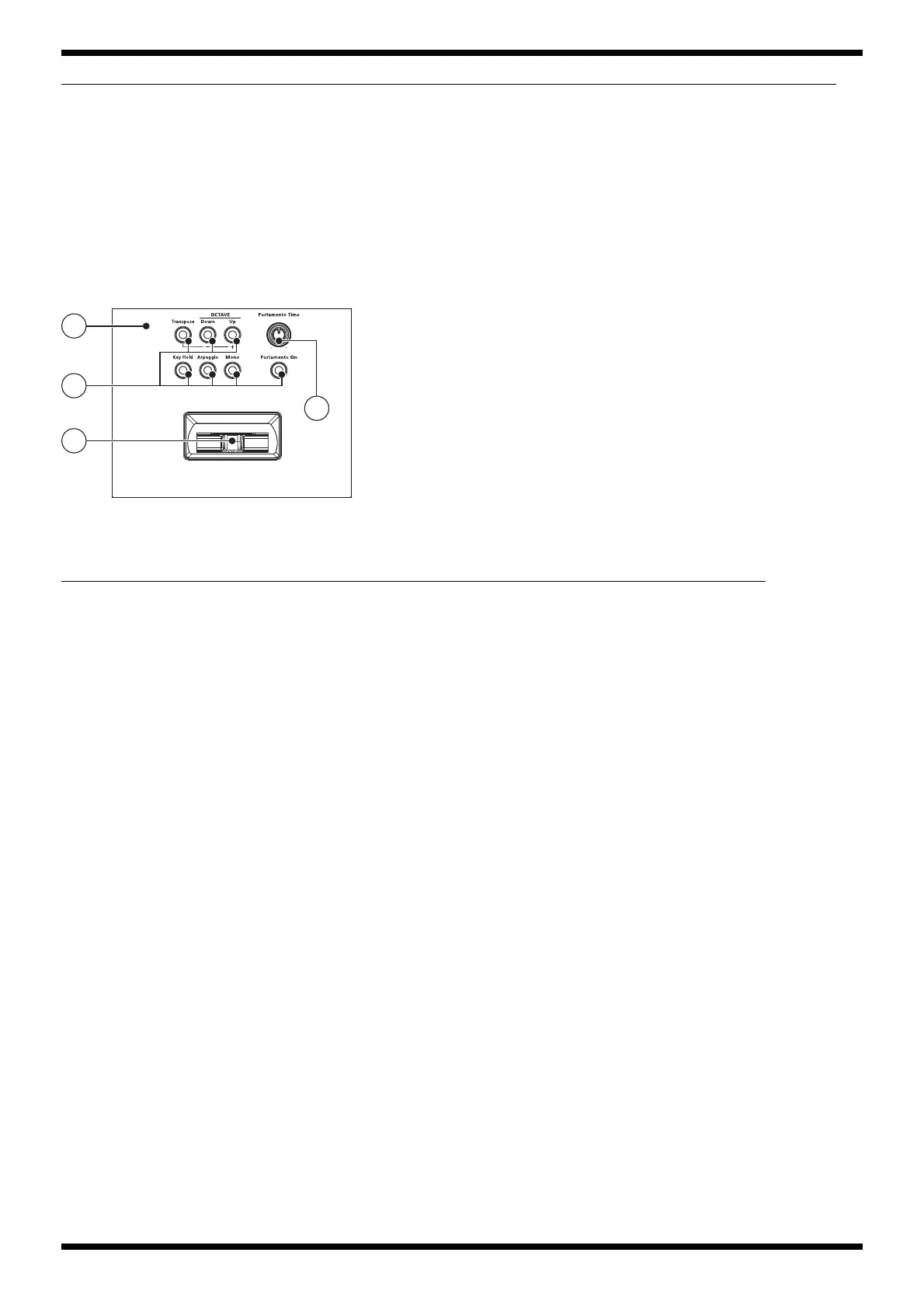

fig.Panel-LS.eps
16 5100044852 J S-KNOB M BLK/RED 5
5100037657 SLIDE POTENTIOMETER C3080G1AV1B103BA00B3 5
5100037876 S-KNOB ESCUTCHEON CLR 5
5100036720 LED WW-OR190TS-J 10
17 5100044852 J S-KNOB M BLK/RED 3
5100043757 SLIDE POTENTIOMETER C3080G1AV1B103BA01BF 3
5100037876 S-KNOB ESCUTCHEON CLR 3
5100036720 LED WW-OR190TS-J 6
18 5100019998 LED DKA13SR053G(F5229831R0) 3
19 5100036720 LED WW-OR190TS-J on WHEEL BOARD 8
No. Part Code Part Name Description Q’ty
23
20
21
22
No. Part Code Part Name Description Q’ty
20 5100042394 BENDER PANEL SHEET 1
21 5100042395 ZT C-KEYTOP SD1H BLK/CLR 7
02781634 TACT SWITCH SKRGAED010 7
5100036720 LED WW-OR190TS-J 7
22 5100042398 ZT R-KNOB SF BLK/SLV 1
5100037792 R-KNOB ESCUTCHEON CLR 1
5100041032 ROTARY POTENTIOMETER XV09223NPV25F972Z10K/I 1
5100036720 LED WW-OR190TS-J 1
23 5100035565 BENDER PB-H0301-BK 1
