Roland JV-1010 Service Notes

JV-1010 Feb. 1999
2
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
FRONT VIEW PARTS LIST
NO. PART CODE PART NAME DESCRIPTION
q 22480260 P R-KNOB MF BLK/LCG
01789523 9M/M ROTARY POT. RK0971214
w 22480260 P R-KNOB MF BLK/LCG
01785212 SWITCH (DIGITAL SW) SRRS1G-F0615-1
e 22480260 P R-KNOB MF BLK/LCG
01785212 SWITCH (DIGITAL SW) SRRS1G-F0615-1
r 22485307 M R-KNOB L BLK 248-307
01785790 ROTARY ENCODER RK09710EL-5R4611
t 01785423 DISPLAY COVER
y 00560745 LED (GREEN) SLR-325MCT31
u 00348490 LED (RED) SLR-325VCT31
i 00451423 LED LB-303VA
o 13449172 7SEG 6.5MM JACK HLJ7000-01-3010
!0 32490595 P S-KEY MX BLK
13129369 PUSH SWITCH SPUN19430A
!1 71345534 FRONT PANEL ASSY
REAR VIEW PARTS LIST
NO. PART CODE PART NAME DESCRIPTION
!2 13449720 DC JACK HEC2305-01-250
!3 22365714 CORD HOOK
!4 13429273 MIDI CONNECTOR YKF51-5046 (TRIPRET)
!5 00899223 SLIDE SWITCH SSSF124-S06N1
!6 13429911 DIN JACK TCS7927-28-401
!7 13449283 6.5MM JACK HLJ7101-01-3010
!8 01785401 BOTTOM CHASSIS
!9 71342178 TOP COVER ASSY

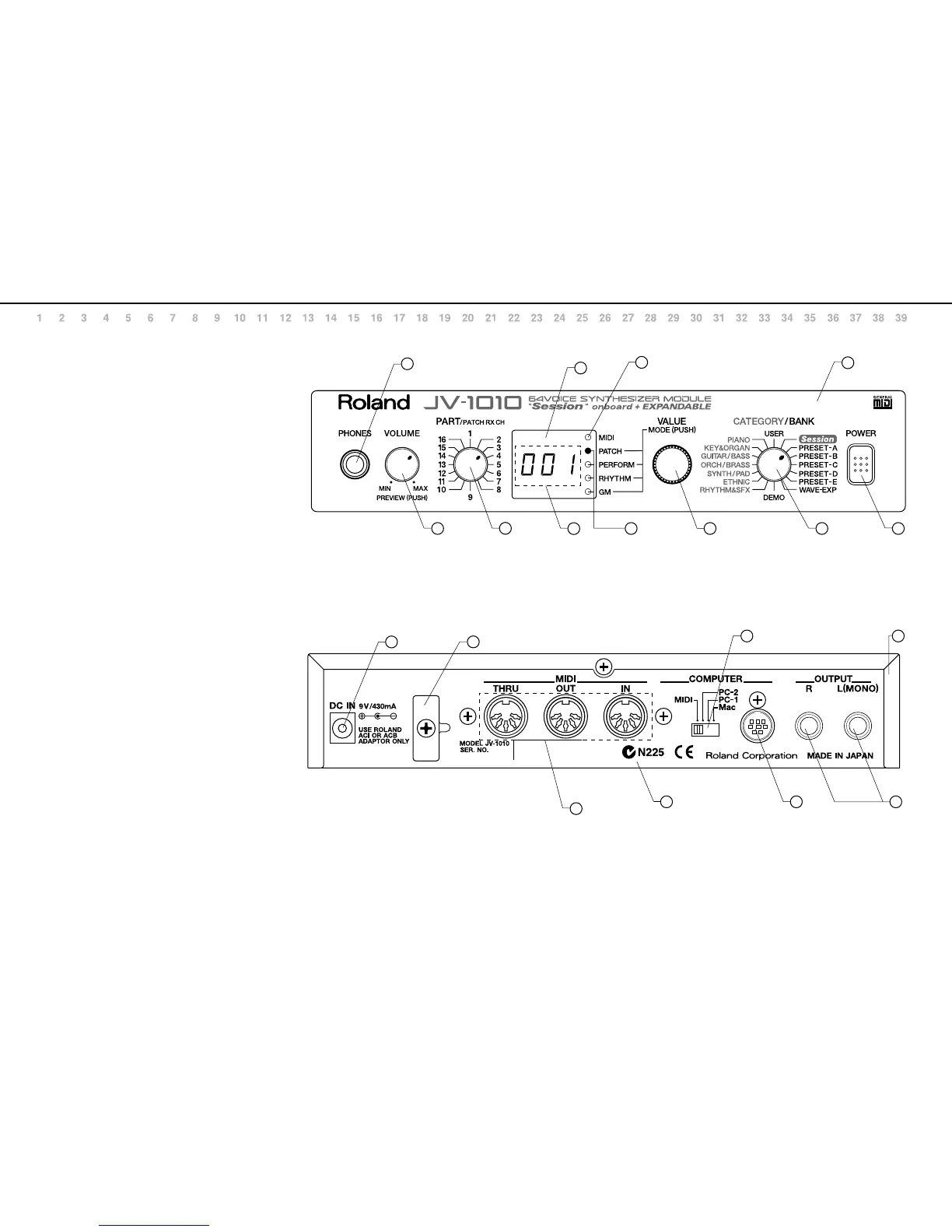

PANEL LAYOUT
12
1
2
34
5
7
8
9
6
11
13
10
14
15
16 1718
19
FRONT VIEW
REAR VIEW
/パネル配置図
/正面図 パーツリスト
/背面図 パーツリスト
/正面図
/背面図

Roland JV-1010 Specifications

General

Type	Synthesizer Module
Polyphony	28 voices
Multitimbral	16 parts
MIDI	In, Out, Thru
Effects	Reverb, Chorus, Delay
Expansion Slot	1 SR-JV80 series expansion board
Synthesis Type	PCM
Outputs	Stereo (L/Mono, R)
Sound Engine	JV-1080 Sound Engine
Presets	512
Headphones	1/4 inch stereo jack
Power Supply	DC 9V
Patches	640 patches (user: 128, preset: 512)
