Roland JV-1010 - Exploded View 分解図

JV-1010 Feb. 1999
3
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V

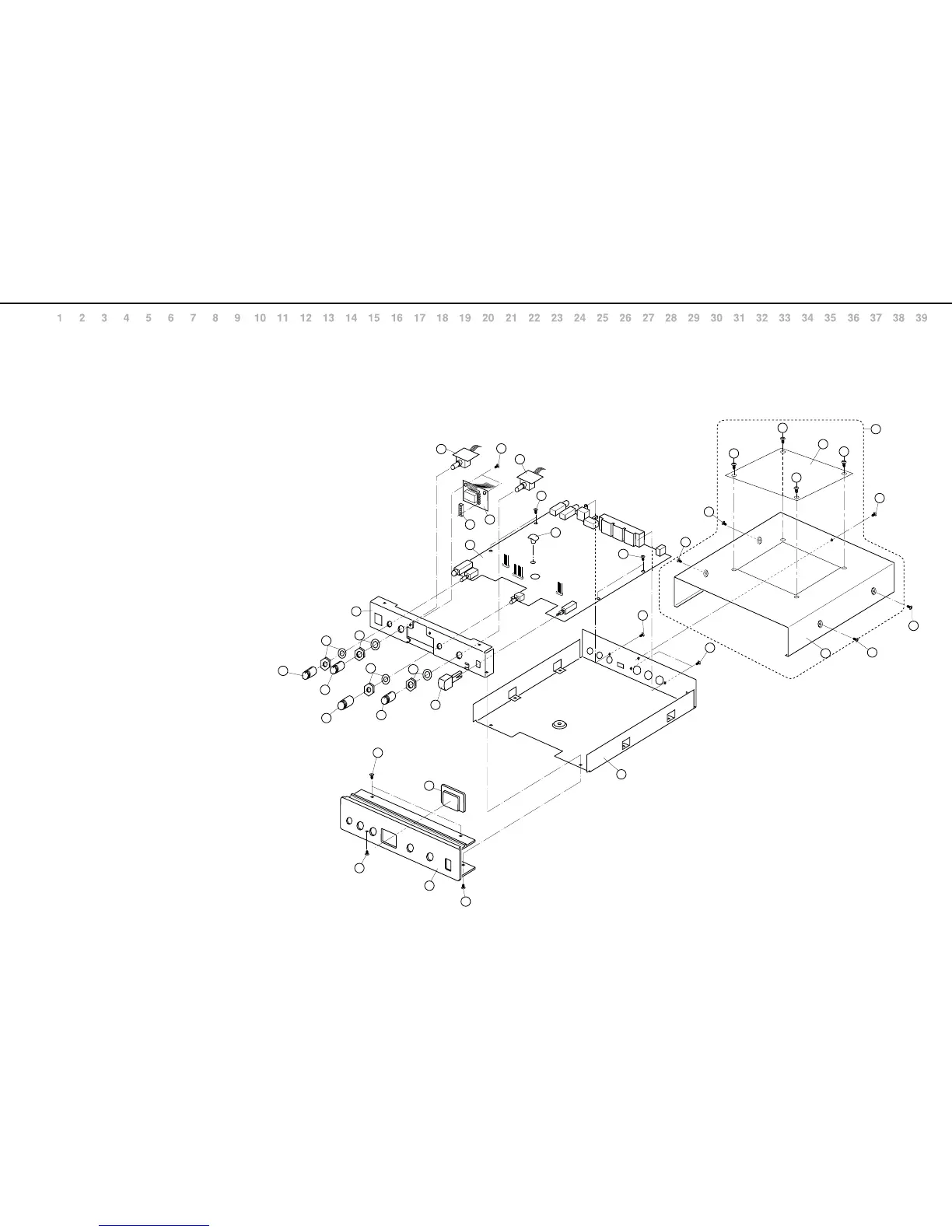

EXPLODED VIEW
[
PORTS
]
NO. PART CODE PART NAME DESCRIPTION
q 22480260 P R-KNOB MF BLK/LCG
w 22485307 M R-KNOB L BLK 248-307
e 32490595 P S-KEY MX BLK
r 01785412 FRONT HOLDER ESD-R-16C
t 71342189 MAIN BOARD ASSY (EXG)
y 71342201 D-SW BOARD ASSY
u 71342190 LED BOARD ASSY
i 01785467 ISOLATOR LED MASK
o 01789534 PWB SPACER RSPS-6L
!0 71345534 FRONT PANEL ASSY
!1 01785423 DISPLAY COVER
!2 01785401 BOTTOM CHASSIS
!3 71342178 TOP COVER ASSY
!4 01785445 TOP COVER
!5 22025583 EXP COVER 202-583
[
SCREW
]
NO. PART CODE PART NAME DESCRIPTION
a 40011090 SCREW M3×6 BINDING TAPTITE B BZC
b 40011145 SCREW M3×6 FLAT TAPTITE B FE BZC
c 40011056 SCREW M3×6 BINDING TAPTITE B ZC
d 40011490 SCREW M3×6 PAN MACHINE W/SW BZC
e 40011312 SCREW M3×6 BINDING P-TITE FE BZC
f This NUT and WASER are included in the #01789523 9M/M ROTARY POT.
g This NUT and WASER are included in the #01785212 SWITCH (DIGITAL SW)
h This NUT and WASER are included in the #01785790 ROTARY ENCODER.
1
1
1
2
3
4
5
6
6
7
8
9
10
11
12
15
13
a
a
a
a
a
a
a
a
a
a
a
b
a
c
c
d
e
14
f
h
g
g
/分解図
このナットとワッシャーは、017895239M/MROTARYPOTに含まれます。
このナットとワッシャーは、01785212SWITCH(DIGTALSW)に含まれます。
このナットとワッシャーは、01785790ROTARYENCODERに含まれます。
