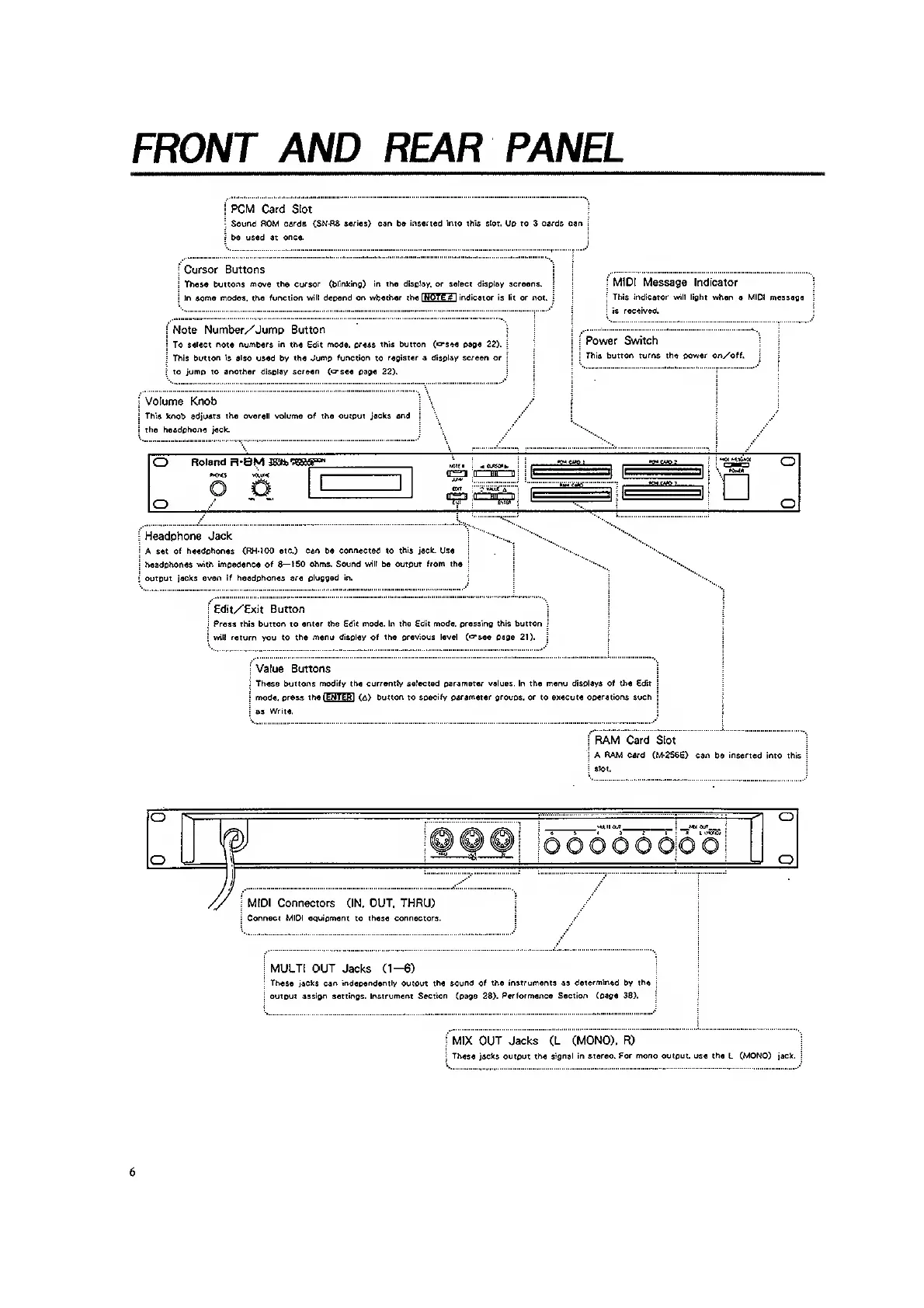

FRONT AND
REAR PANEL
PCM Card Slot
Sound ROM cards (SN-R8
series)
can be
inserted Into this slot.
Vo to 3 cards
car
be used at
once.
Cursor Buttons
These
buttons rnove the cursor (blinking) in the disolay. or select display screens,
in some modes, the function
will
depend
on wbother the I MOTE # I indicator is lit or not.
MIDI Message Indicator
This indicator mil li^ht when
a
MIDI
massage
is received.
Note Number/Jump
Button
To
select note numbers in the Edit mod». press this button
(crsee
page 22).
This
button is also
used by the Jumo
function
to
register a display screen or
to jump to another display
screen (crsee
page 22).
Power Switch
This button
turns
the oower on/off.
Volume Knob
This knob adjusts the overall volume of the output jacks
and
the headphone jack.
o
Roland
R-BM J83!b raSiP"
JJ-V
^
"TTi
in iiM"
~
o
o
Headphone
Jack
A set
of headphones (FtH-lOO etc.) can be
connected
to
this jack.
Use
headphones
mth impedance of S—ISO ohms. Sound
will
be output
from the
output jacks
even if headphones are plugged
in.
'
Edit/Exit Button
Press this button to
enter the Edit mode. In the Edit mode, pressing this button
i
vaII return
you to
the menu display of the previous level
(crsee
page 21).
i
Value Buttons
: These buttons modify the currently selected parameter values. In the menu displays of
the
Edit
I mode, press the lEMTEffl
(A)
button
to
specify parameter groups, or
to execute
operations such
i
as
Write.
I
RAM Card Slot
I
A RAM card CM-ZSSG) can
be
inserted
into this
i
slot.
©^©1
166666c
.-aa
tt
I
MIDI Connectors
(IN. OUT. THRU)
I
Connect MIDI equipment
to
these connectors.
o
o
MULTI OUT
Jacks
(1-6)
These jacks can independently
outout
the sound of the instruments as
determined
by
the
output
assign settings. Instrument Section
(pas*
28).
Performance Section (page 38).
I
MIX OUT Jacks (L
(MONO). R)
:
These
jacks output
the signal in stereo.
For mono
output, use
the
L
(MONO)
jack.
