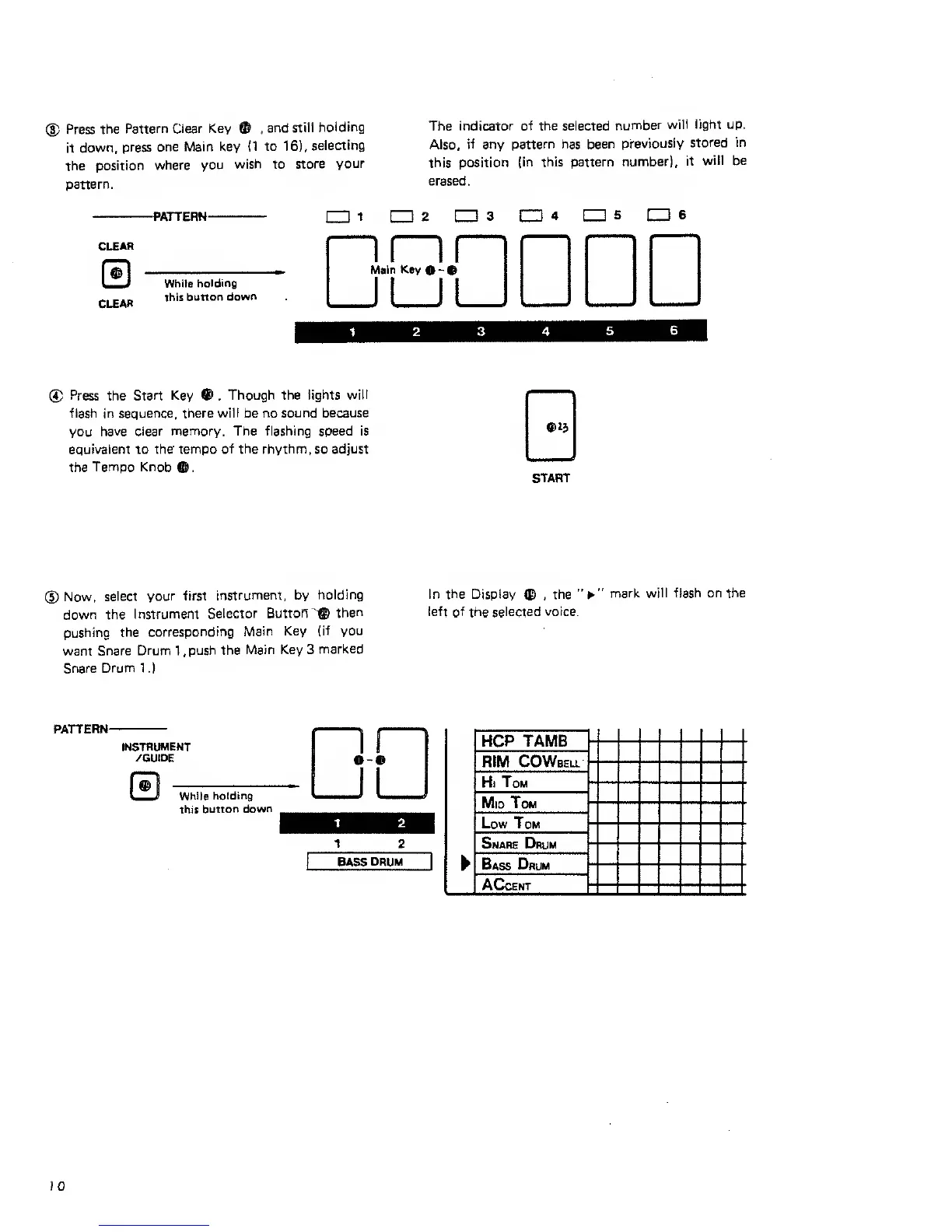

Press the
Pattern Clear Key
©
,
and still
holding
it
down, press
one Main
key (1 to 16),
selecting
the
position
where you
wish
to
store
your
pattern.
-PATTERN-
CLEAR
The indicator of the selected
number
will light up.
Also, if any pattern has been
previously
stored
in
this position
(in this
pattern number),
it
will be
erased.
CLEAR
While
holding
this
button
down
Di
E=3
2
CZ3
3
04 CDS
O
6
rnrnrn
I
Main Key©-©
I
II
IL_
<D
Press the Start Key
©
.
Though the fights will
flash in sequence,
there will
be
no sound because
you
have dear memory. The flashing speed is
equivalent to
the' tempo of the rhythm,
so
adjust
the Tempo Knob
©
,
©13
START
1
Now,
select
your first
instrument, by
holding
down the
Instrument
Selector
Button
©
then
pushing
the
corresponding
Main Key
(if you
want
Snare
Drum
1
.push
the Main Key 3
marked
Snare
Drum 1.)
In the Display
©
,
the
'
left of
the
selected
voice.
"
mark will flash on the
PATTERN-
INSTRUMENT
/GUIDE
While
holding
this
button down
©-©
BASS DRUM
HCP TAMB
RIM COWbell
Hi
Tom
Mid Tom
Low
Tom
Snare Drum
Bass Drum
ACcent
10
