c.
Sync using Tape
Recorder
The Tape
Sync
jacks on
the back
panel (the
same
jacks
used
for saving and
loading
onto cassette)
can
be used to
run
the Composer
from a Sync
signal
recorded on a
tape.
1)
Recording the
Sync signal
(D

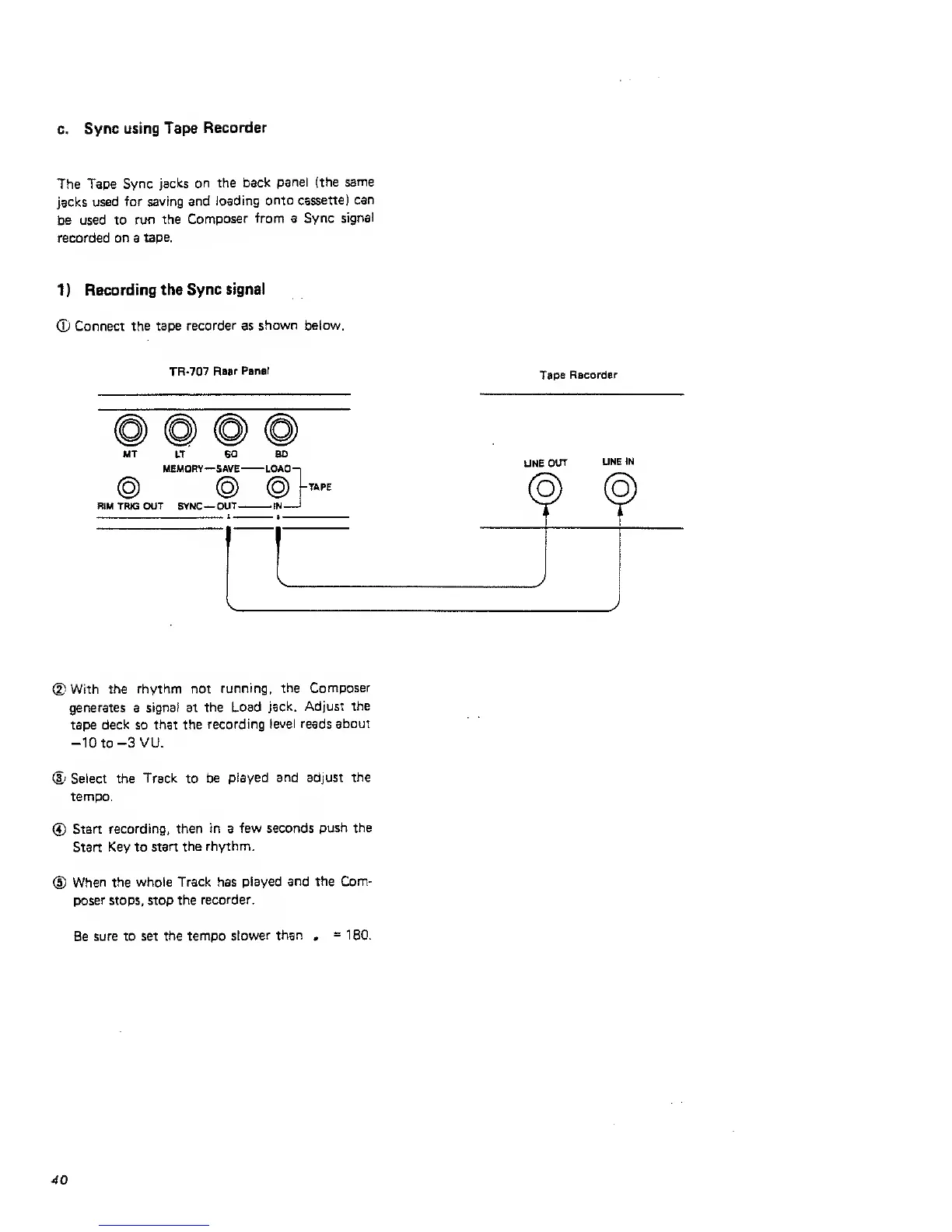

Connect the tape
recorder as
shown
below.
TR-707
Rear
Panel
y>
H
(y) (y)
MT
IT
SD BD
MEMORY—SAVE LOAD-i
RIM
TRK3
OUT
SYNC—
OUT
-
-IN-
-TAPE
(D
With
the rhythm not
running,
the Composer
generates a
signal
at
the Load
jack. Adjust
the
tape deck
so
that
the recording
level reads about
-10
to
-3
VU.
(D
Select
the Track
to
be
played
and
adjust
the
tempo.
<J)
Start recording, then
in a
few seconds push the
Start
Key
to
start the
rhythm.
(D
When the whole
Track has
piayed and the Com-
poser stops, stop
the
recorder.
Be
sure
to set the tempo
slower than
.
= 180.
Tape
Recorder
UNE
OUT
UNE
IN
® ©
40
