VA-7
July, 2000
7
CASING Q.ty
# 7770126000 VARN.+SILK. TOP CBNT VA-7 1
# 7770127000 VARN.+SILK. CONDUCTIVE BOTTOM CBNT VA-7 1
# 7770128000 VARN. COVER F/LCD VA-7 1
# 7770129000 VARN.+SILK. RIGHT TEMPLATE F/TOP CBNT 1
# 7770130000 VARN.+SILK. LEFT TEMPLATE F/TOP CBNT 1
# 02126390 TOUCH SCREEN SENSOR EMU601A2MA16 1
# K2248153 RIGHT LOUDSPEAKER GRILL (BLACK) VA-7 1
# K2248154 LEFT LOUDSPEAKER GRILL (BLACK) VA-7 1
# K2128126 BLACK MUSIC REST VA-7 1
22208320 MUSIC SCORE HOLDER 1
KNOB BUTTON
22485303 D-RK KNOB BLK 1
# K2478291 BLACK KNOB W/IVORY POINTER D.12 H.18.5 3
K2478258 POWER SWITCH KNOB (BLACK) 1
# K2478334 BUTTON 12X8 WHITE (MONO) 1
# K2478292 BUTTON 12X8 WHITE (STEP) 1
# K2478293 BUTTON 12X8 WHITE (ENCODE) 1
# K2478294 BUTTON 12X8 WHITE (CAPTURE) 1
# K2478295 BUTTON 12X8 DARK GREY (GROUP) 1
# K2478296 BUTTON 12X8 WHITE (1) 3
# K2478297 BUTTON 12X8 WHITE (2) 3
# K2478298 BUTTON 12X8 WHITE (3) 3
# K2478299 BUTTON 12X8 WHITE (4) 3
# K2478300 BUTTON 12X8 WHITE (5) 3
# K2478301 BUTTON 12X8 WHITE (6) 3
# K2478302 BUTTON 12X8 WHITE (7) 3
# K2478303 BUTTON 12X8 WHITE (8) 3
# K2478304 BUTTON 12X8 WHITE 2
# K2478305 BUTTON 12X8 DARK GREY 2
# K2478306 BUTTON 16X10 WHITE 5
# K2478307 BUTTON 16X10 WHITE (MELODY INTELL) 1
# K2478308 BUTTON 16X10 WHITE (ON/OFF) 2
# K2478309 BUTTON 16X10 WHITE (OTHER) 1
# K2478310 BUTTON 16X10 WHITE (SYNC) 1
# K2478311 BUTTON 16X10 DARK GREY (DOWN) 1
# K2478312 BUTTON 16X10 DARK GREY (UP) 1
# K2478313 BUTTON 20X10 WHITE 1
# K2478314 BUTTON 20X10 DARK GREY 2
# K2478315 BUTTON 20X10 WHITE (ARRANGER) 1
# K2478316 BUTTON 20X10 WHITE (PIANO) 1
# K2478317 BUTTON 20X10 WHITE (BACKGROUND) 1
# K2478318 BUTTON 20X10 WHITE (MELODIC) 1
# K2478319 BUTTON 20X10 WHITE (RHYTHMIC) 1
# K2478320 BUTTON 20X10 WHITE (USER) 1
# K2478321 BUTTON 20X10 WHITE (1) 1
# K2478322 BUTTON 20X10 WHITE (2) 1
# K2478323 BUTTON 20X10 WHITE (3) 1
# K2478324 BUTTON 20X10 WHITE (4) 1
# K2478325 BUTTON 20X10 WHITE (5) 1
# K2478326 BUTTON 20X10 WHITE (ONE TOUCH) 1
# K2478327 BUTTON 20X10 WHITE (STYLE) 1
# K2478328 BUTTON 20X10 WHITE (TONE) 1
# K2478329 BUTTON 20X10 WHITE (USER PROGRAM) 1
# K2478330 BUTTON 20X10 DARKGREY (ORCHESTRATOR) 1
# K2478331 BUTTON 20X10 DARK GREY (VIRTUAL BAND) 1
# K2478332 BUTTON 20X10 DARK GREY (SONG COMPOS.) 1
# K2478333 BUTTON 20X10 DARK GREY (FUNCTION M.) 1
SWITCH
J3169105 SWITCH TP-1101A / EVQ-PAE 05 R SW1=>23, 42, 44, 45=>62 on CB / SW25=>41, SW65=>69 on CVP / 67
SW43 on PB / SW24 on CDBM
# 13159180 SLIDE SWITCH SSSF11209K SW1 on AB 1
JACK, SOCKET
13449252 JACK SOCKET YKB 21-5006 YK1, 2 on PHB / YK6 on AB 3

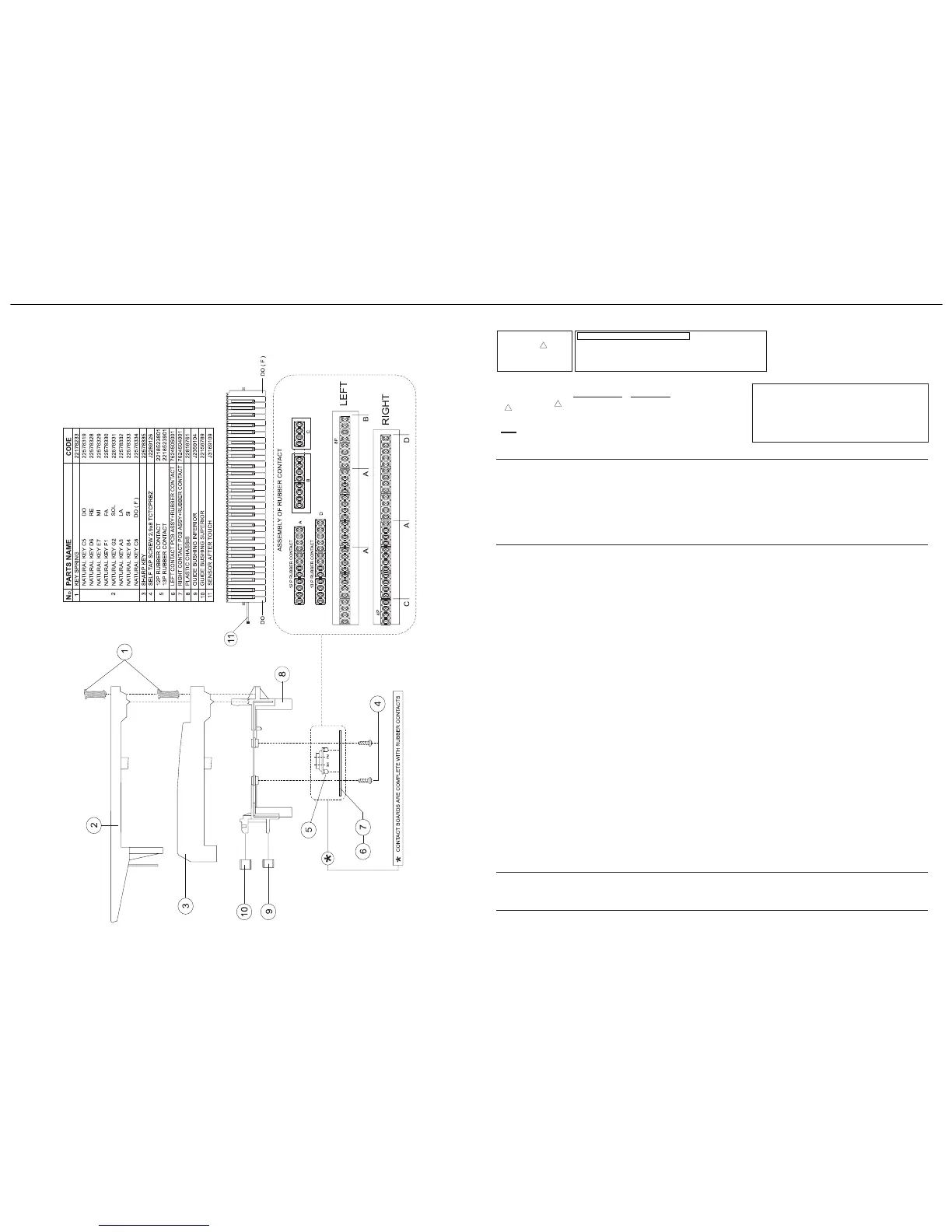

PARTS LIST VA-7 (100V/117V/230V/230VE/240VA)
When ordering any parts listed in the parts list,please specify the following items in the order sheet.
QTY PART NUMBER DESCRIPTION MODEL NUMBER
Ex. 10 22575241 Sharp Key C-20/50
15 2247017300 Knob (orange) DAC-15D
Failure to completely fill the above items with correct number and description will result in delayed or
even undelivered replacement.
CONSIDERATION ON PARTS ORDERING
AB = Audio Board
AFT = Bounce to AFT B.
AMP B = Amplifier Board
CB = Control Board
CVP = Control Variphrase B.
DBM = D-Beam Board
EQ B = Equalizer Board
FC7 = FC7 Board
I B = Inverter Board
LB = Left Contact B.
LCD = LCD Control Board
MB = Main Board
MIDI = Midi Board
PAB = Power Amp. Board
PB = Potentiometer Board
PHB = Phones Board
RB = Right Contact B.
NOTE:
# The parts marked " # '' are new (Initial Parts).
A The parts marked " A '' are new (Initial Parts).for RES but already used by RJA
The parts marked have Safety - Related characteristics.
Use only listed parts for replacement.
<< EMI >> Component for EMC.
NNoottee
:: Replacement should be made on a unit basis. No replacements available for individual parts.
Replacement only be a unit.
