Schematics
The Quantum Marina Pedestal is available in 4 heights and 4 different configurations:
x Socket(s) only
x Socket(s) + kWh Meter
x Socket(s) + Tap
x Socket(s) + kWh Meter + Tap
Refer to the 4-socket schematic for wiring of the 2 and 3 socket models.

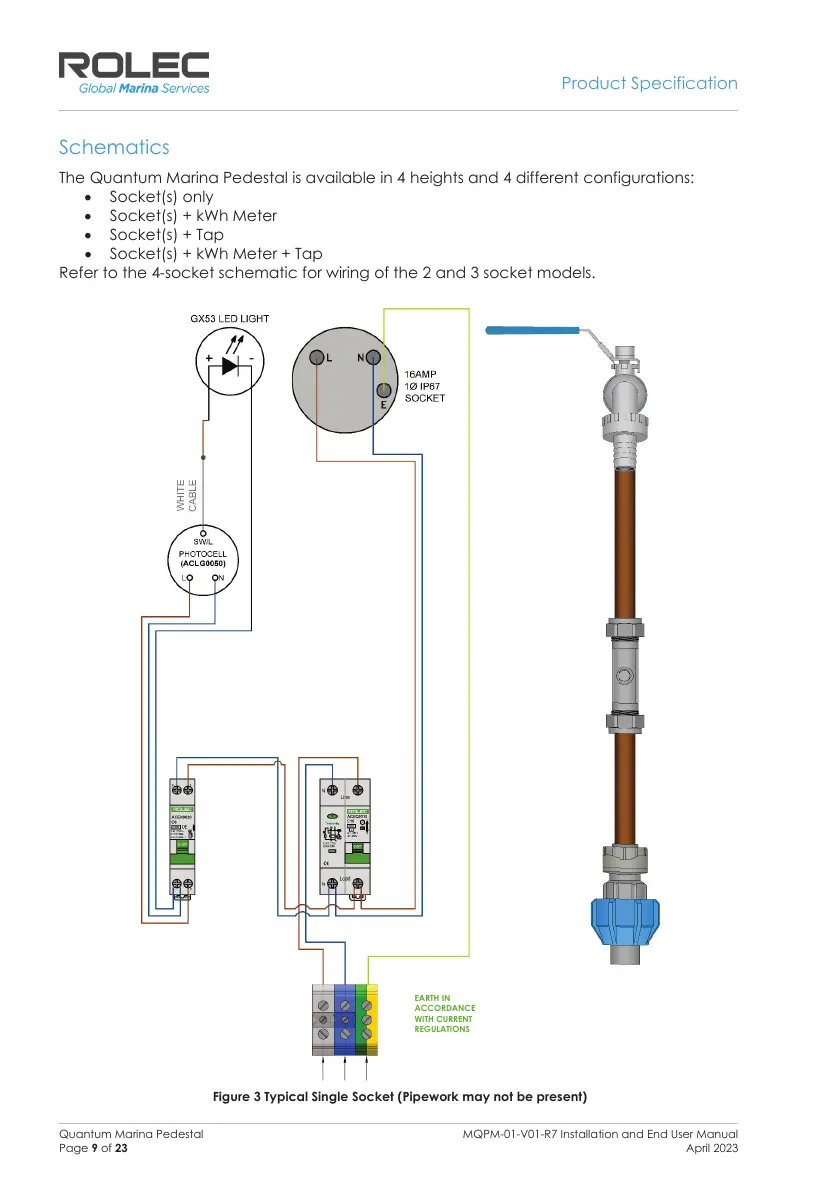

Figure 3 Typical Single Socket (Pipework may not be present)
EARTH IN
ACCORDANCE
WITH CURRENT
REGULATIONS
