Installation
WARNING: Potable Water
Equipment equipped with potable (drinking) water systems must be
installed in accordance with the appropriate legislation in the region of
installation.
IMPORTANT: Installers and End Users must read and understand the content
of this manual before installation/use.
Installation must only be performed by someone who is properly qualified and
competent to do so in accordance with the appropriate legislation in the region of
installation.
x Rolec Services Ltd cannot accept any responsibility for improper installation or any
problems arising from improper installation.
NOTE: Damage to the equipment, connected systems or to property caused by
improper installation/use are the responsibility of the installer/user.
Before Installation
1. Establish a suitable site location for the unit that is both secure and environmentally
safe.
2. Make sure the location meets current legislation (if applicable).
3. Make sure there is a suitable mains power supply available at the installation site.
4. Make sure there is a suitable water supply available at the installation site (if
required).
x It is important to ensure the water supply is clean and flowing freely.
x Make sure the pipework is thoroughly flushed to remove any debris or stale
water before connecting to the pedestal.
x Clean or replace filters as appropriate
5. Make sure that the unit and any accessories have not been damaged in transit.
NOTE: Items damaged in transit must first be reported to the courier and then to the
supplier.
Where possible, photographic evidence of package and/or unit damage should be
provided.
6. Make sure the unit model is correct and matches the order.
NOTE: Incorrect or damaged units must NOT be installed. Contact your supplier to
discuss rectification.
NOTE: If the pedestal is not going to be sited on a pontoon or similar decking type
location, a firm mounting point will be needed in/on the ground. Refer to the two
sections immediately below on setting up a base location.
Installation
MQPM-01-V01-R7 Installation and End User Manual Quantum Marina Pedestal
April 2023 Page 16 of 23

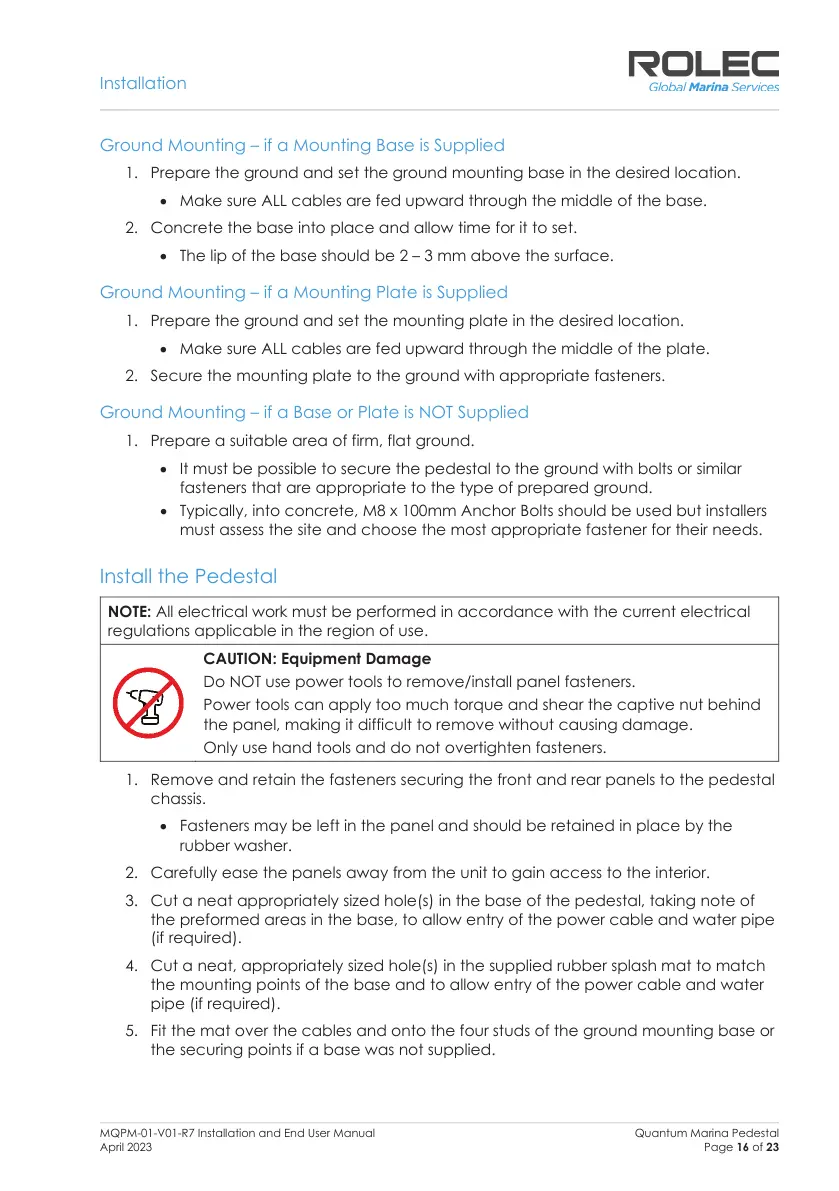

Ground Mounting – if a Mounting Base is Supplied
1. Prepare the ground and set the ground mounting base in the desired location.
x Make sure ALL cables are fed upward through the middle of the base.
2. Concrete the base into place and allow time for it to set.
x The lip of the base should be 2 – 3 mm above the surface.
Ground Mounting – if a Mounting Plate is Supplied
1. Prepare the ground and set the mounting plate in the desired location.
x Make sure ALL cables are fed upward through the middle of the plate.
2. Secure the mounting plate to the ground with appropriate fasteners.
Ground Mounting – if a Base or Plate is NOT Supplied
1. Prepare a suitable area of firm, flat ground.
x It must be possible to secure the pedestal to the ground with bolts or similar
fasteners that are appropriate to the type of prepared ground.
x Typically, into concrete, M8 x 100mm Anchor Bolts should be used but installers
must assess the site and choose the most appropriate fastener for their needs.
Install the Pedestal
NOTE: All electrical work must be performed in accordance with the current electrical
regulations applicable in the region of use.
CAUTION: Equipment Damage
Do NOT use power tools to remove/install panel fasteners.
Power tools can apply too much torque and shear the captive nut behind
the panel, making it difficult to remove without causing damage.
Only use hand tools and do not overtighten fasteners.
1. Remove and retain the fasteners securing the front and rear panels to the pedestal
chassis.
x Fasteners may be left in the panel and should be retained in place by the
rubber washer.
2. Carefully ease the panels away from the unit to gain access to the interior.
3. Cut a neat appropriately sized hole(s) in the base of the pedestal, taking note of
the preformed areas in the base, to allow entry of the power cable and water pipe
(if required).
4. Cut a neat, appropriately sized hole(s) in the supplied rubber splash mat to match
the mounting points of the base and to allow entry of the power cable and water
pipe (if required).
5. Fit the mat over the cables and onto the four studs of the ground mounting base or
the securing points if a base was not supplied.
