Physical Specification
Materials Anodised Aluminium Chassis, Optional Aluminium Composite
Panels, Polycarbonate Lighting Dome
Mass 16-25kg (1000mm Unit – depending on installed options)
Environmental
x -30°C to +60°C operating temperature range
x IP66 Weather resistance
x IK10 Impact resistance
x Flame retardant to UL94 Flame Rating at V2
Figure 2 Quantum Pedestal Dimensions
A: 750mm, 1000mm, 1250mm, 1500mm
B: 940mm, 1190mm, 1440mm, 1690mm
C: 360mm
D: 382.5mm
E: 175mm
F: 260mm
G: 262.5mm
NOTE:
1. Heights A and B depend on the model selected.
2. Additional power outlets and water taps may be fitted depending on requirements.
C
A
B
D
F
G
E
Product Specification
MQPM-01-V01-R7 Installation and End User Manual Quantum Marina Pedestal
April 2023 Page 8 of 23

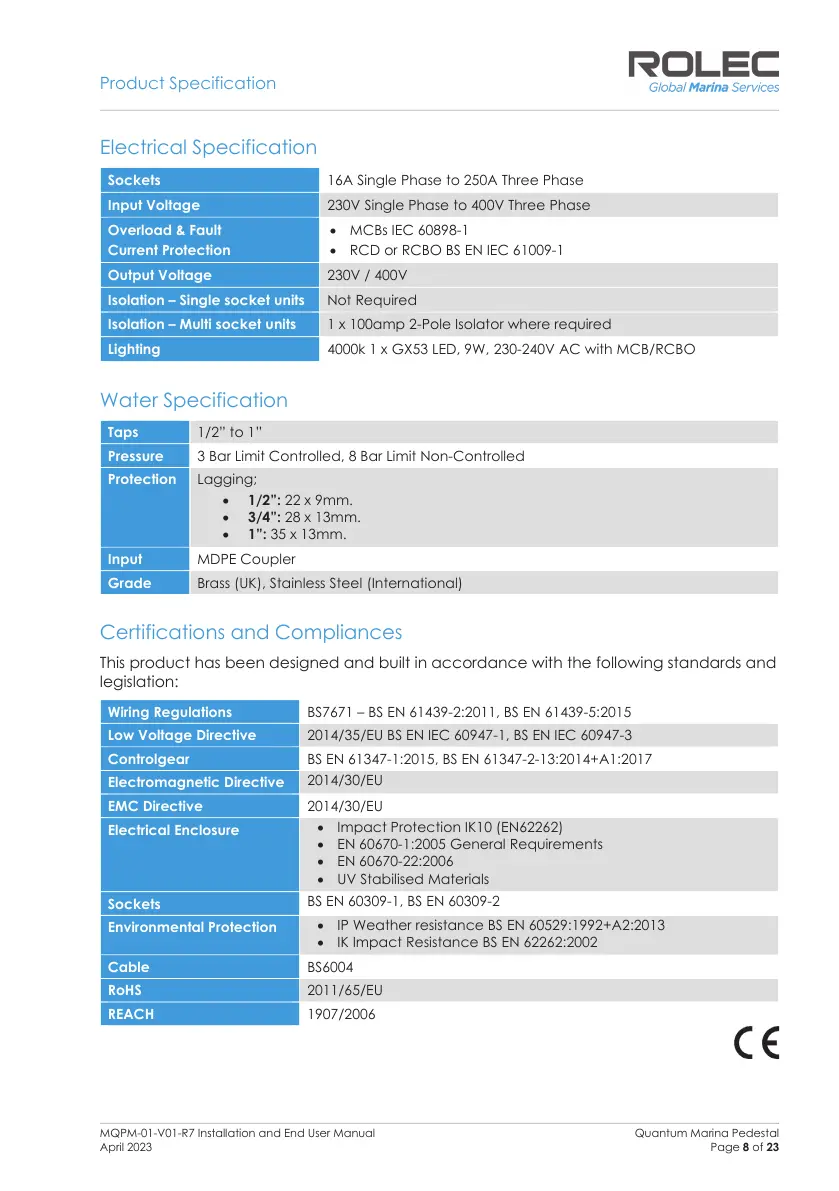

Electrical Specification
Sockets 16A Single Phase to 250A Three Phase
Input Voltage 230V Single Phase to 400V Three Phase
Overload & Fault
Current Protection
x MCBs IEC 60898-1
x RCD or RCBO BS EN IEC 61009-1
Output Voltage 230V / 400V
Isolation – Single socket units Not Required
Isolation – Multi socket units 1 x 100amp 2-Pole Isolator where required
Lighting 4000k 1 x GX53 LED, 9W, 230-240V AC with MCB/RCBO
Water Specification
Taps 1/2” to 1”
Pressure 3 Bar Limit Controlled, 8 Bar Limit Non-Controlled
Protection Lagging;
x 1/2”: 22 x 9mm.
x 3/4”: 28 x 13mm.
x 1”: 35 x 13mm.
Input MDPE Coupler
Grade Brass (UK), Stainless Steel (International)
Certifications and Compliances
This product has been designed and built in accordance with the following standards and
legislation:
Wiring Regulations BS7671 – BS EN 61439-2:2011, BS EN 61439-5:2015
Low Voltage Directive 2014/35/EU BS EN IEC 60947-1, BS EN IEC 60947-3
Controlgear BS EN 61347-1:2015, BS EN 61347-2-13:2014+A1:2017
Electromagnetic Directive
2014/30/EU
EMC Directive 2014/30/EU
Electrical Enclosure
x Impact Protection IK10 (EN62262)
x EN 60670-1:2005 General Requirements
x EN 60670-22:2006
x UV Stabilised Materials
Sockets
BS EN 60309-1, BS EN 60309-2
Environmental Protection
x IP Weather resistance BS EN 60529:1992+A2:2013
x IK Impact Resistance BS EN 62262:2002
Cable BS6004
RoHS 2011/65/EU
REACH 1907/2006
