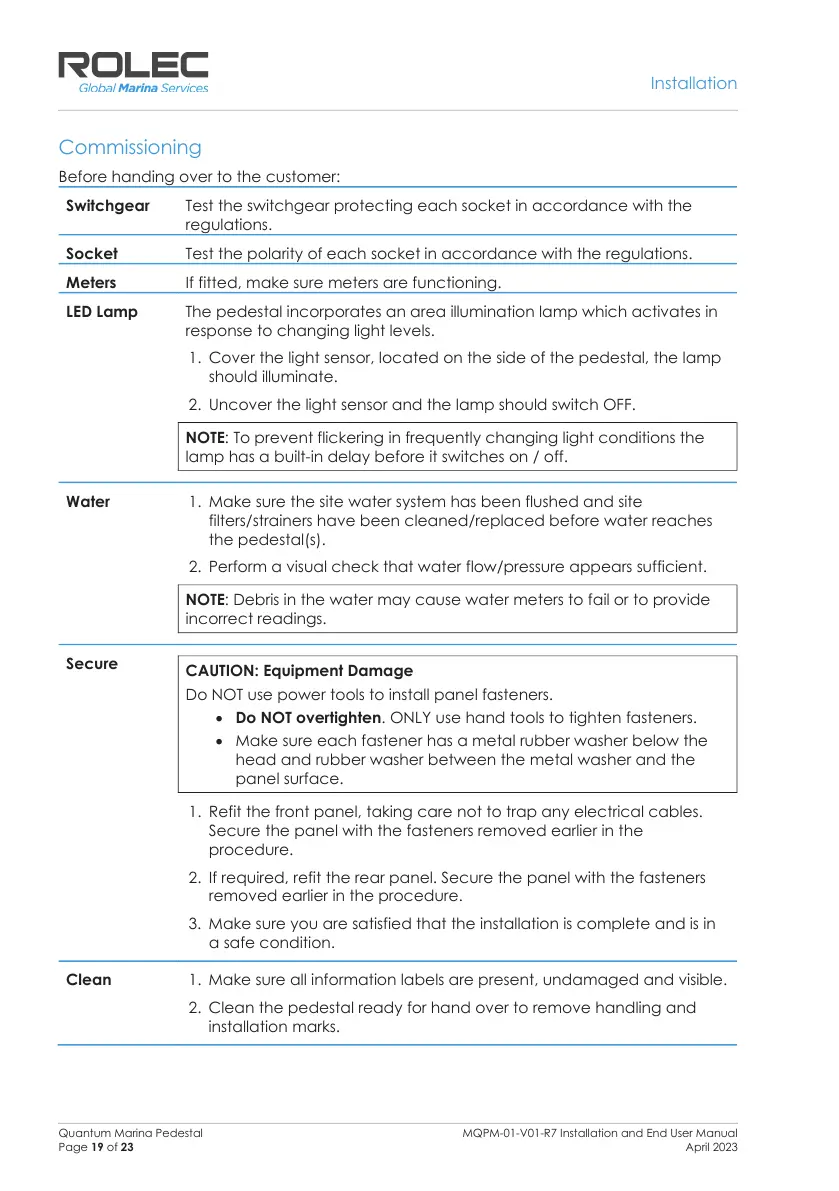

Installation
Quantum Marina Pedestal MQPM-01-V01-R7 Installation and End User Manual
Page 19 of 23 April 2023
Commissioning
Before handing over to the customer:
Switchgear Test the switchgear protecting each socket in accordance with the
regulations.
Socket Test the polarity of each socket in accordance with the regulations.
Meters If fitted, make sure meters are functioning.
LED Lamp The pedestal incorporates an area illumination lamp which activates in
response to changing light levels.
1. Cover the light sensor, located on the side of the pedestal, the lamp
should illuminate.
2. Uncover the light sensor and the lamp should switch OFF.
NOTE: To prevent flickering in frequently changing light conditions the
lamp has a built-in delay before it switches on / off.
Water 1. Make sure the site water system has been flushed and site
filters/strainers have been cleaned/replaced before water reaches
the pedestal(s).
2. Perform a visual check that water flow/pressure appears sufficient.
NOTE: Debris in the water may cause water meters to fail or to provide
incorrect readings.
Secure
CAUTION: Equipment Damage
Do NOT use power tools to install panel fasteners.
x Do NOT overtighten. ONLY use hand tools to tighten fasteners.
x Make sure each fastener has a metal rubber washer below the
head and rubber washer between the metal washer and the
panel surface.
1. Refit the front panel, taking care not to trap any electrical cables.
Secure the panel with the fasteners removed earlier in the
procedure.
2. If required, refit the rear panel. Secure the panel with the fasteners
removed earlier in the procedure.
3. Make sure you are satisfied that the installation is complete and is in
a safe condition.
Clean 1. Make sure all information labels are present, undamaged and visible.
2. Clean the pedestal ready for hand over to remove handling and
installation marks.
Operation
MQPM-01-V01-R7 Installation and End User Manual Quantum Marina Pedestal
April 2023 Page 20 of 23
Handover 1. Make sure the pedestal is NOT covered and all plastic packaging
has been removed. Even in temperate climates, plastic packaging
can cause localised heating of the pedestal that may result in
temporary or permanent component failures.
2. Make sure this manual is given to the customer along with copies of
any installation paperwork.
Operation
Operators who have chosen the BerthMaster option should refer to the BerthMaster
Operation Manual and the BerthMaster Management Portal Operation Manual as
appropriate:
Maintenance
NOTE: In the event of a hardware issue, always contact your installer first.
x Damage caused to the equipment by misuse, lack of maintenance, inappropriate
maintenance or modification is not covered by the manufacturer warranty.
NOTE: Water quality can vary greatly at different locations around the world, even when
it is classified as ‘drinking quality’. All water contains microscopic particles and dissolved
minerals which under certain conditions can accumulate within the water system.
Typically, this will be seen where there is a restriction in the flow in the water filter/strainer
for example but can also pass through these filters to accumulate within components.
Marina sites should consider the quality of their water supply and set their maintenance
schedules and tasks appropriately to their needs.
1. Regularly clean the external surfaces of the equipment by wiping with a damp
cloth.
CAUTION: Equipment Damage
To avoid damage to the surface finish, and/or internal components do NOT use:
x Abrasive materials.
x Mineral or petroleum solvents / degreasers.
x Hose pipes, Jet washers or Steam cleaners.
Cleaning using these methods will invalidate the warranty.
2. Regularly, visually inspect the exterior of the equipment for damage.
x If damage affects safety, isolate the equipment and prevent its use until
appropriate repairs have been completed.
