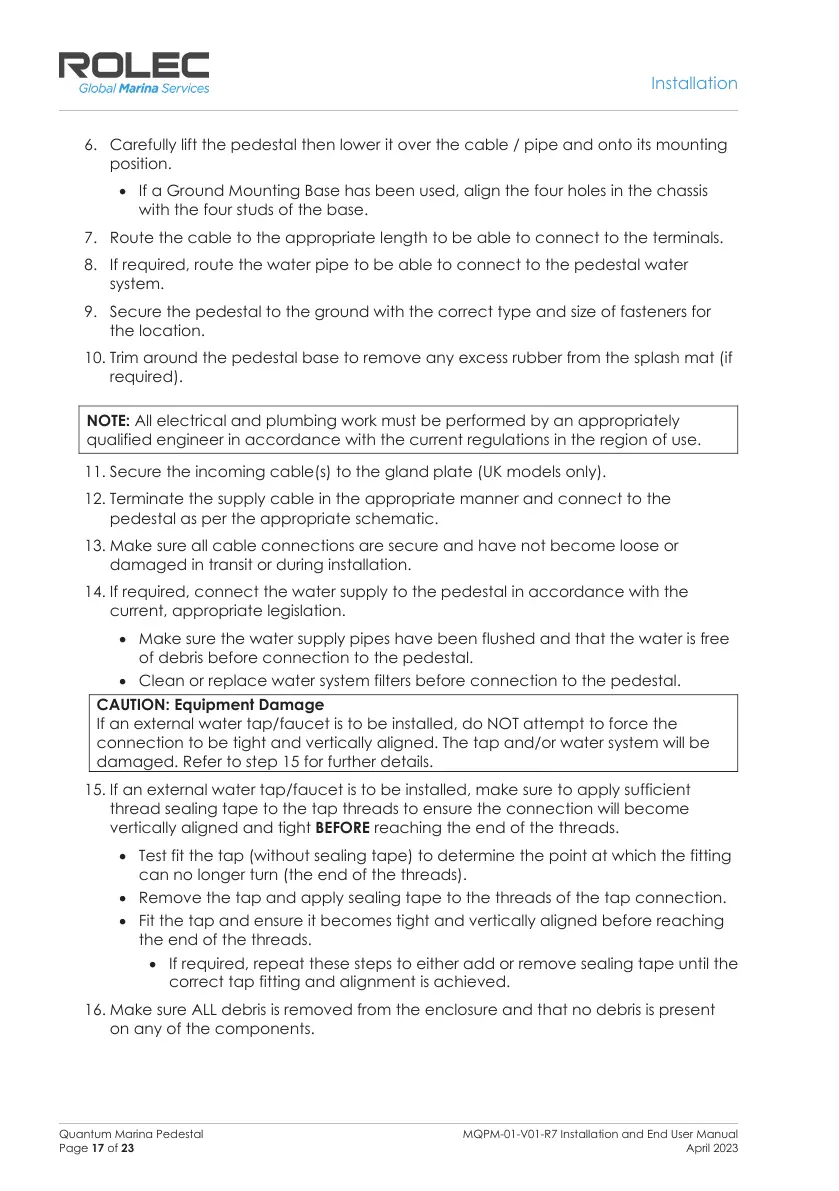

Installation
Quantum Marina Pedestal MQPM-01-V01-R7 Installation and End User Manual
Page 17 of 23 April 2023
6. Carefully lift the pedestal then lower it over the cable / pipe and onto its mounting
position.
x If a Ground Mounting Base has been used, align the four holes in the chassis
with the four studs of the base.
7. Route the cable to the appropriate length to be able to connect to the terminals.
8. If required, route the water pipe to be able to connect to the pedestal water
system.
9. Secure the pedestal to the ground with the correct type and size of fasteners for
the location.
10. Trim around the pedestal base to remove any excess rubber from the splash mat (if
required).
11. Secure the incoming cable(s) to the gland plate (UK models only).
12. Terminate the supply cable in the appropriate manner and connect to the
pedestal as per the appropriate schematic.
13. Make sure all cable connections are secure and have not become loose or
damaged in transit or during installation.
14. If required, connect the water supply to the pedestal in accordance with the
current, appropriate legislation.
x Make sure the water supply pipes have been flushed and that the water is free
of debris before connection to the pedestal.
x Clean or replace water system filters before connection to the pedestal.
CAUTION: Equipment Damage
If an external water tap/faucet is to be installed, do NOT attempt to force the
connection to be tight and vertically aligned. The tap and/or water system will be
damaged. Refer to step 15 for further details.
15. If an external water tap/faucet is to be installed, make sure to apply sufficient
thread sealing tape to the tap threads to ensure the connection will become
vertically aligned and tight BEFORE reaching the end of the threads.
x Test fit the tap (without sealing tape) to determine the point at which the fitting
can no longer turn (the end of the threads).
x Remove the tap and apply sealing tape to the threads of the tap connection.
x Fit the tap and ensure it becomes tight and vertically aligned before reaching
the end of the threads.
x If required, repeat these steps to either add or remove sealing tape until the
correct tap fitting and alignment is achieved.
16. Make sure ALL debris is removed from the enclosure and that no debris is present
on any of the components.
NOTE: All electrical and plumbing work must be performed by an appropriately
qualified engineer in accordance with the current regulations in the region of use.
