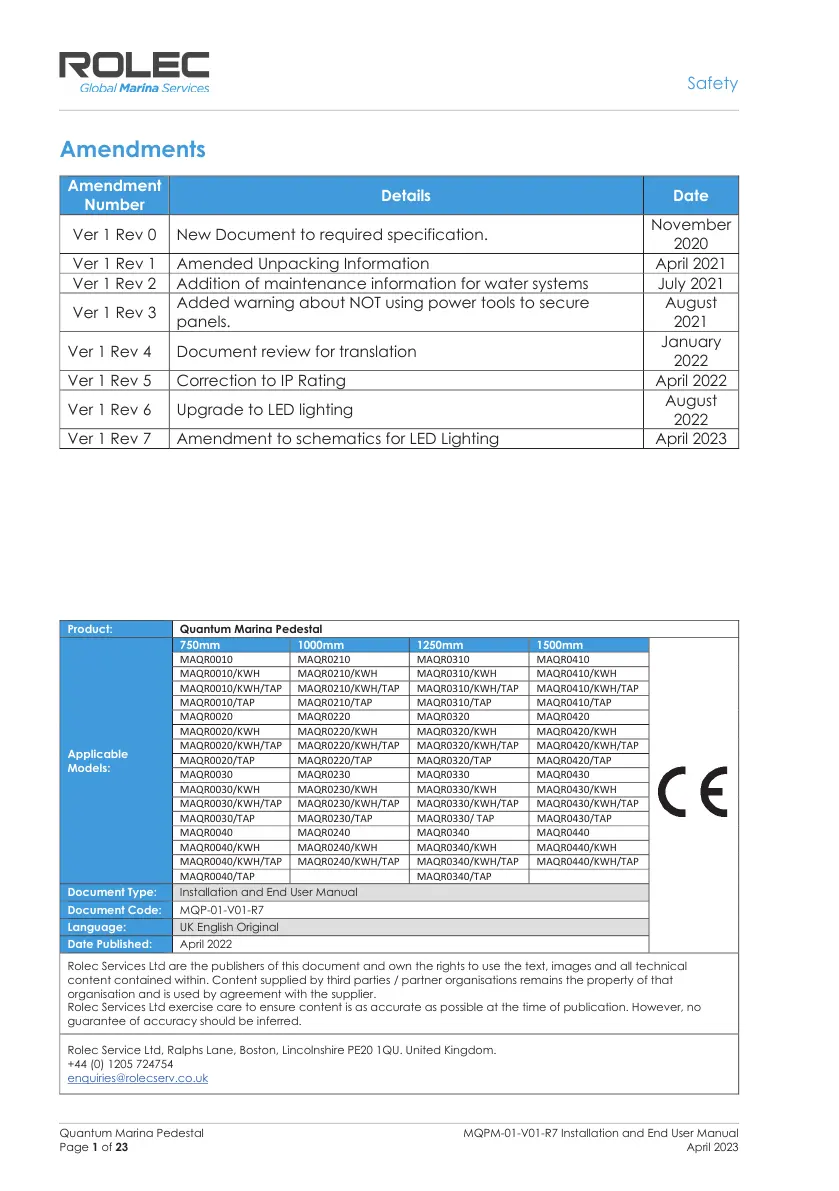

Safety
Quantum Marina Pedestal MQPM-01-V01-R7 Installation and End User Manual
Page 1 of 23 April 2023
Amendments
Amendment
Number
Details Date
Ver 1 Rev 0 New Document to required specification.
November
2020
Ver 1 Rev 1 Amended Unpacking Information April 2021
Ver 1 Rev 2 Addition of maintenance information for water systems July 2021
Ver 1 Rev 3
Added warning about NOT using power tools to secure
panels.
August
2021
Ver 1 Rev 4 Document review for translation
January
2022
Ver 1 Rev 5 Correction to IP Rating April 2022
Ver 1 Rev 6 Upgrade to LED lighting
August
2022
Ver 1 Rev 7 Amendment to schematics for LED Lighting April 2023
Product: Quantum Marina Pedestal
Applicable
Models:
750mm 1000mm 1250mm 1500mm
MAQR0010 MAQR0210 MAQR0310 MAQR0410
MAQR0010/KWH MAQR0210/KWH MAQR0310/KWH MAQR0410/KWH
MAQR0010/KWH/TAP MAQR0210/KWH/TAP MAQR0310/KWH/TAP MAQR0410/KWH/TAP
MAQR0010/TAP MAQR0210/TAP MAQR0310/TAP MAQR0410/TAP
MAQR0020 MAQR0220 MAQR0320 MAQR0420
MAQR0020/KWH MAQR0220/KWH MAQR0320/KWH MAQR0420/KWH
MAQR0020/KWH/TAP MAQR0220/KWH/TAP MAQR0320/KWH/TAP MAQR0420/KWH/TAP
MAQR0020/TAP MAQR0220/TAP MAQR0320/TAP MAQR0420/TAP
MAQR0030 MAQR0230 MAQR0330 MAQR0430
MAQR0030/KWH MAQR0230/KWH MAQR0330/KWH MAQR0430/KWH
MAQR0030/KWH/TAP MAQR0230/KWH/TAP MAQR0330/KWH/TAP MAQR0430/KWH/TAP
MAQR0030/TAP MAQR0230/TAP MAQR0330/ TAP MAQR0430/TAP
MAQR0040 MAQR0240 MAQR0340 MAQR0440
MAQR0040/KWH MAQR0240/KWH MAQR0340/KWH MAQR0440/KWH
MAQR0040/KWH/TAP MAQR0240/KWH/TAP MAQR0340/KWH/TAP MAQR0440/KWH/TAP
MAQR0040/TAP MAQR0340/TAP
Document Type: Installation and End User Manual
Document Code: MQP-01-V01-R7
Language:
UK English Original
Date Published: April 2022
Rolec Services Ltd are the publishers of this document and own the rights to use the text, images and all technical
content contained within. Content supplied by third parties / partner organisations remains the property of that
organisation and is used by agreement with the supplier.
Rolec Services Ltd exercise care to ensure content is as accurate as possible at the time of publication. However, no
guarantee of accuracy should be inferred.
Rolec Service Ltd, Ralphs Lane, Boston, Lincolnshire PE20 1QU. United Kingdom.
+44 (0) 1205 724754
enquiries@rolecserv.co.uk
Safety
MQPM-01-V01-R7 Installation and End User Manual Quantum Marina Pedestal
April 2023 Page 2 of 23
Contents
Safety 3
Safety Advice within this Manual 3
Product Overview 4
Product Specification 7
Physical Specification 7
Electrical Specification 8
Water Specification 8
Certifications and Compliances 8
Schematics 9
Labelling 14
Options and Accessories 14
Unpacking 14
Typical Contents 14
Installation 15
Before Installation 15
Ground Mounting – if a Mounting Base is Supplied 16
Ground Mounting – if a Mounting Plate is Supplied 16
Ground Mounting – if a Base or Plate is NOT Supplied 16
Install the Pedestal 16
Commissioning 19
Operation 20
Maintenance 20
Replace the LED Bulb 22
