rollibot ROLLICOOL - Outdoor Unit and Window Kit Installation

12
RolliBot RolliCool Mini-Split AC User Manual

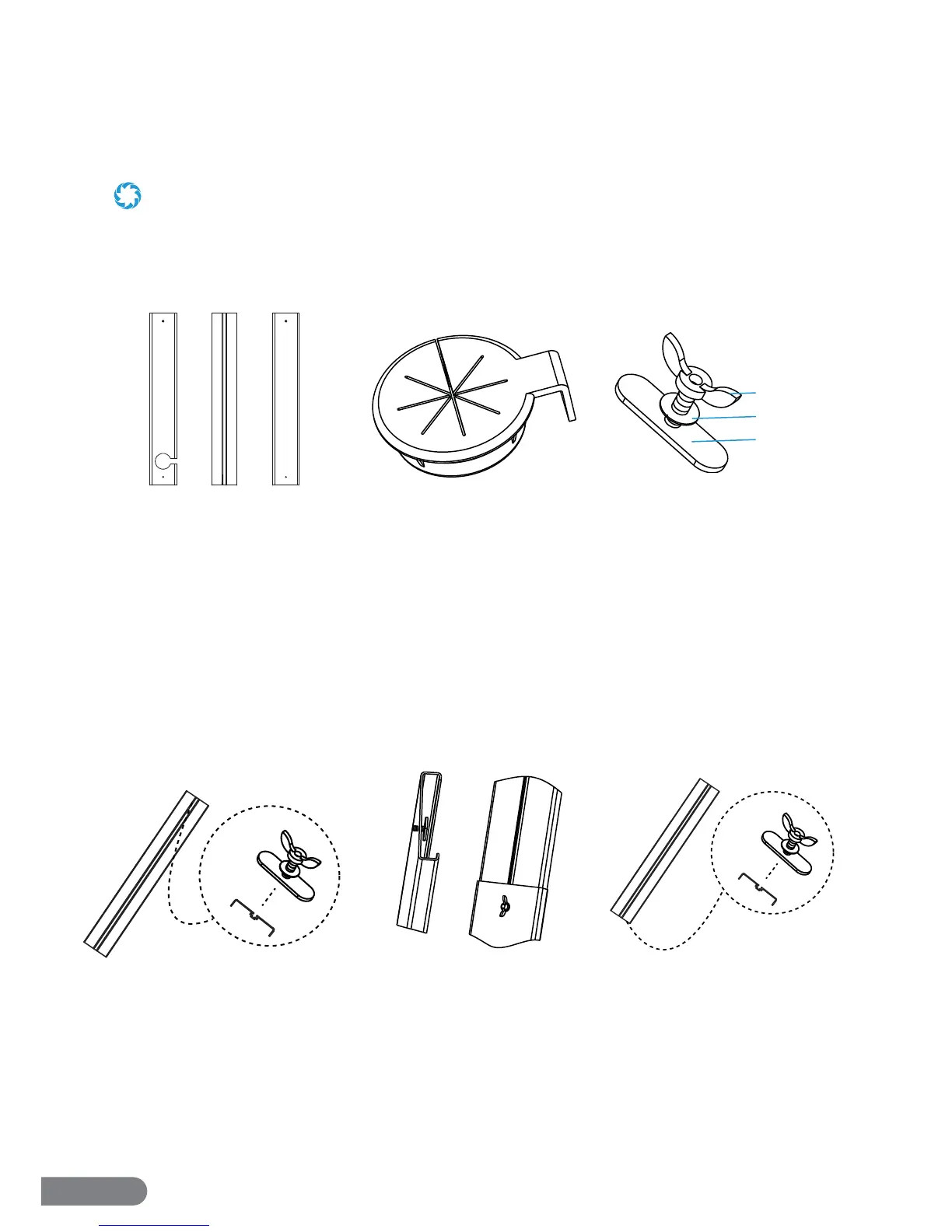

WINDOW KIT PARTS
SECTIONS
These sections thread into
one another and should be
placed within a window gap.
A may be  ipped so that the
opening is higher or lower.
CONNECTOR
This piece is later inserted into
the opening in Section A and
used to hold the Coolant Lines
in place.
SCREW FASTENER
These parts are used to secure
the sections together and
can be loosened or tightened
when adjusting the sections
according to window height.
ABC
Screw Head
Washer
Screw Base
B
A
B
INSTALLATION
Step 1.
Separate one Screw Fastener
and thread the Screw Base
into one end of Section B.
Step 2.
Thread Section A onto the
end of Section B and use the
Screw Head and Washer to
secure the sections together.
Step 3.
Repeat Step 1 one at the other
end of Section B.
B
3.2 – Installing the Outdoor Unit
In order to let o exhaust and hot air, the Outdoor Unit should be placed on level, stable ground
outdoors. The Coolant Lines must be used to connect the two units and may be routed through
a window with the help of the Window Kit.
Please read all installation steps and parts instructions and information before attempting to install.
