RolliBot RolliCool Mini-Split AC User Manual

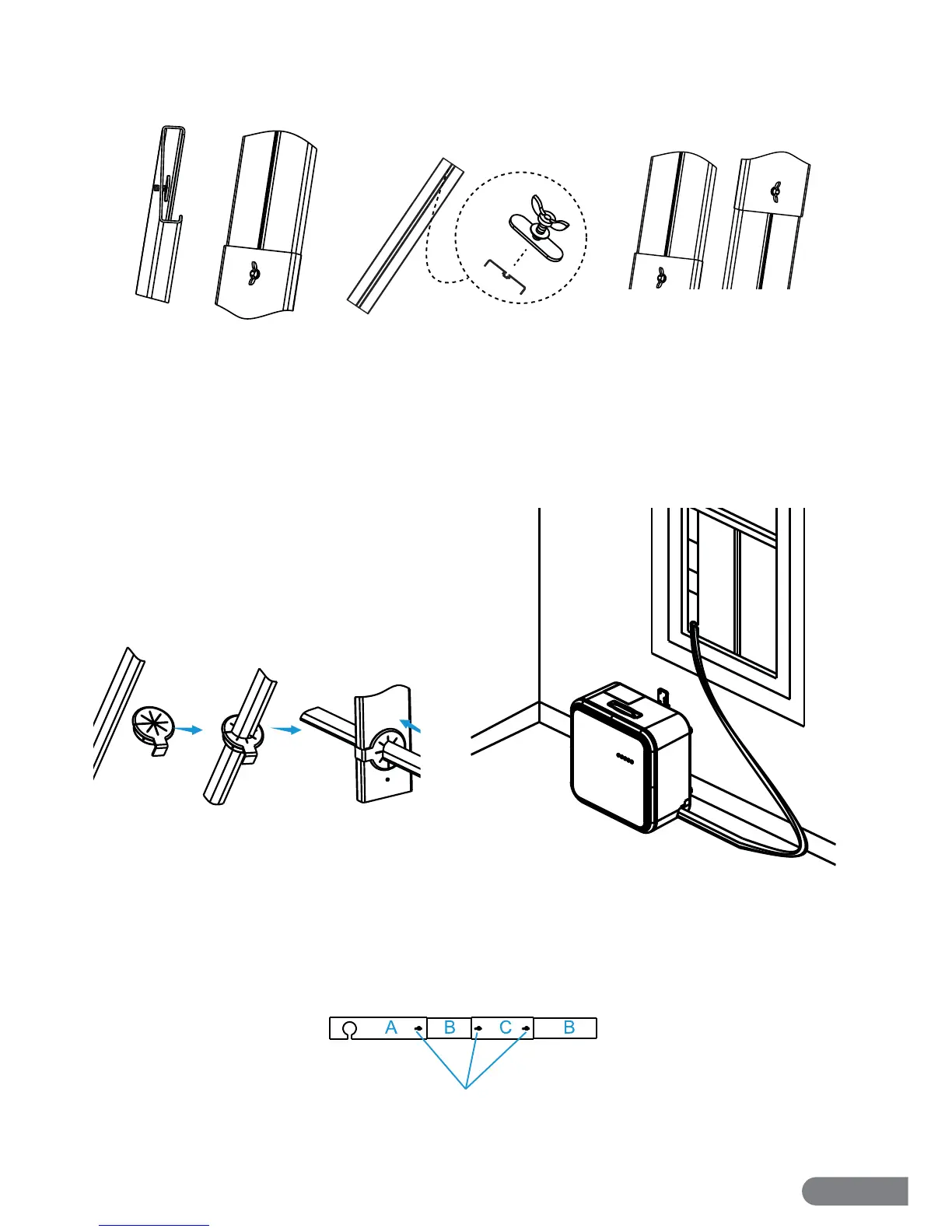

Step 9.
Install the assembled kit
into a window gap and push
the window nearly closed
to secure it in place. Use the
fasteners to adjust as needed.
Step 4.
Thread Section C onto the
other end of Section B and
use the Screw Head and
Washer to secure the sections
together.
Step 5.
Separate one Screw Fastener
and thread the Screw Base
into one end of the second
Section B.
Step 6.
Thread the second Section B
into the other end of Section
C and use the Screw Head and
Washer to secure the sections
together.
Step 7.
Thread the Coolant Lines into
the side of the Connector
then  t the Connector into
Section A making sure the
notch is in place.
Step 8.
Check that all Sections are
connected like so.
B
A
C
Screw Fasteners
A
B
C
B
B
B
C
