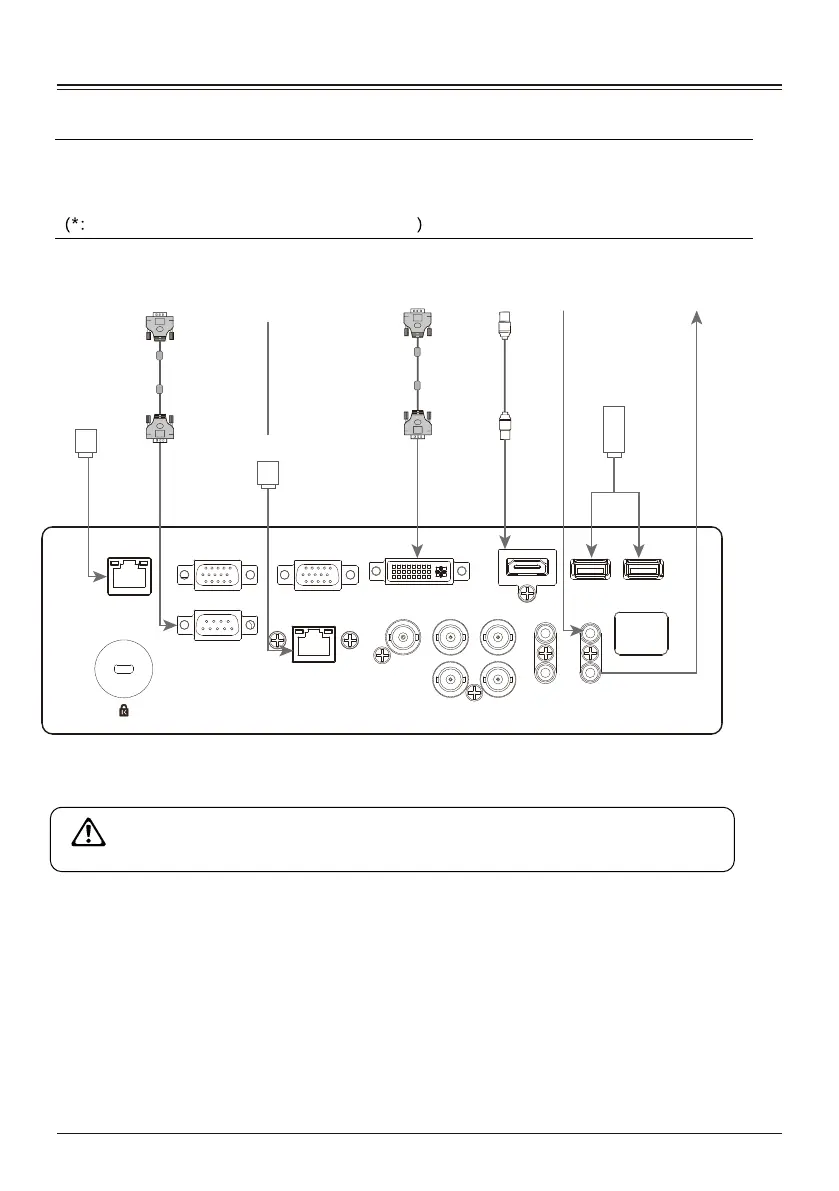

Input/Output Connection Relationship
Cables for connection
This projector is not equipped with this cable.
RJ45 cable
DVI-D HDMIRS232 serial cable
U disk input
LAN
HD-Base-T
transmitter
Wired remote
control
Wired connection
device
COMPUTER IN
RS-232C
COMPUTER OUT
DVI
R/PR G/Y/VIDEO
H V
B/PB
USB1
USB2
AUDIO IN
R/C OUT
HDMI
AUDIO OUT R/C IN
HDBT
LAN
When connecting the cable, unplug the power cord of the projector and
external devices from the power outlet.
● DVI-D cable*
●
RS232 serial cable*
● HDMI cable
● RJ45 cable *
●
HD-Base-T cable*
● 35mm audio cable *
*
