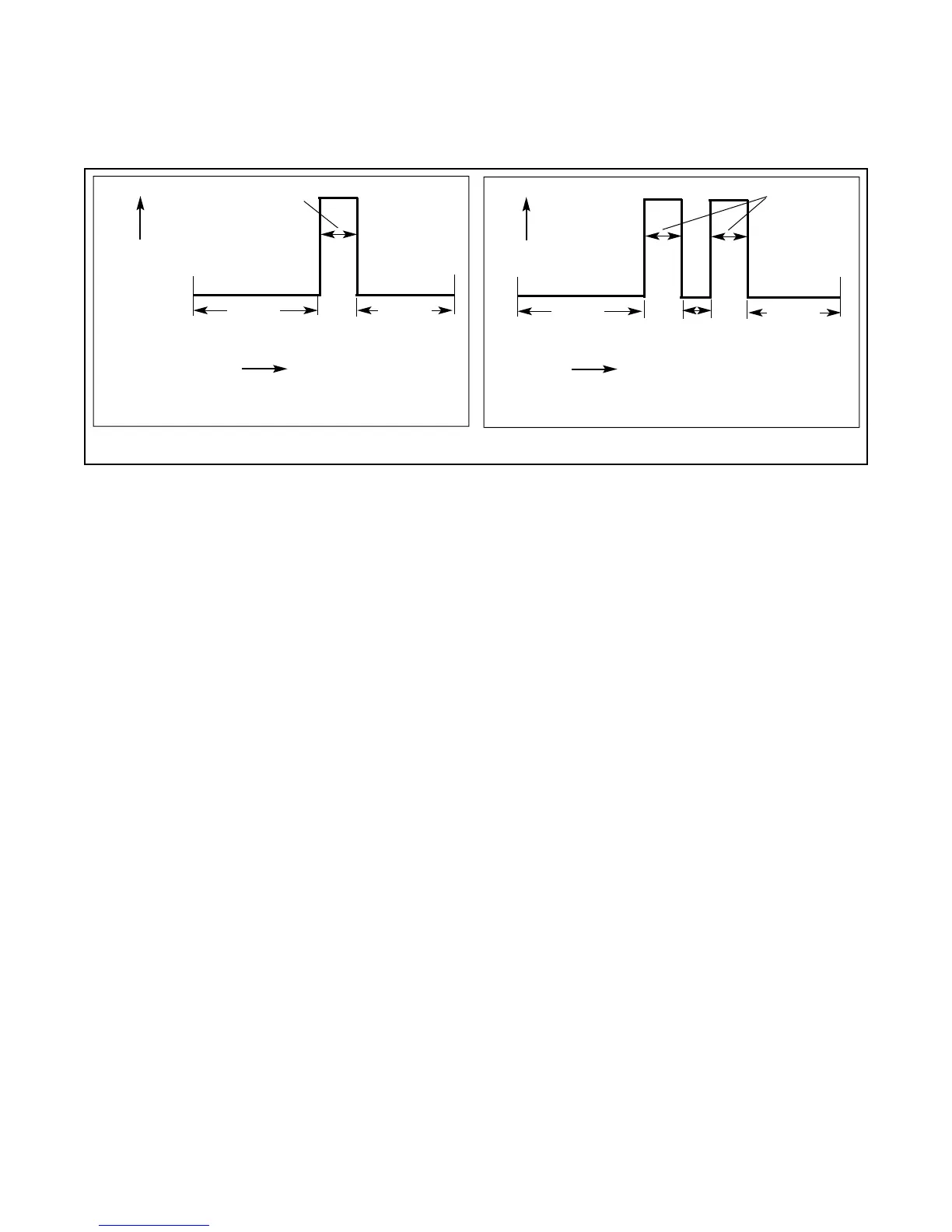

FIGURE 5-2. Interval Timer Examples
MODEL 54e pH/ORP SECTION 5.0
SOFTWARE CONFIGURATION
5.7 CHANGING ALARM PARAMETERS (continued)
RELAY
ACTIVATION
TIME
Interval
(hr)
Recovery
(sec)
“On”
Time
(sec)
Sequence A: One repeat per cycle
RELAY
ACTIVATION
TIME
Interval
(hr)
Recovery
(sec)
“On”
Time
(sec)
“Off”
Time
(sec)
Sequence B: Two repeats per cycle
