Wireless LAN PCI Card RNX-N300X User Manual
34

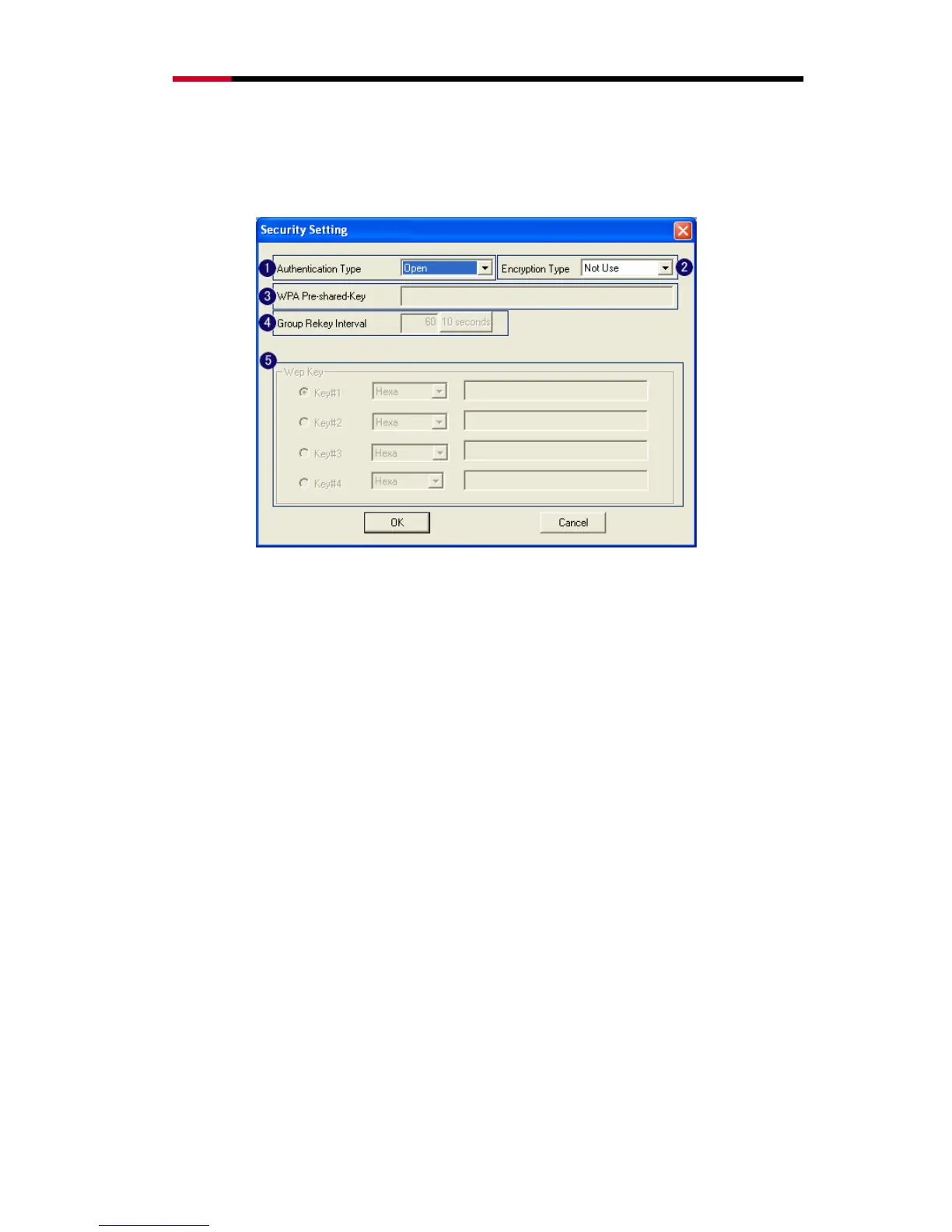

4.2 Security Setting
This page pops up after clicking the Security Settings button. Please follow the instructions below:
Authentication Type Select to be open or WPA-PSK system.
Encryption Type Select an encryption type from the drop list.
WPA Pre-shared Key A shared string between AP and STA. For WPA-PSK
authentication mode, this field must be filled with
character longer than 8 and less than 32 length. (PCI only)
Group Rekey Interval Only valid when using WPA-PSK encryption algorithm. The
key will change compliance with seconds or beacon that
user set. (PCI device only)
WEP Key Only valid when using WEP encryption algorithm. The key
must match the key on AP. There are several formats to
enter the keys.
a. Hexadecimal (40bits): 10 Hex characters.
b. Hexadecimal (128bits): 32Hex characters.
c. ASCII (40bits): 5 ASCII characters.
d. ASCII (128bits): 13 ASCII characters.
4.3 Access Control
This function filters users to use this device by designating MAC address. Please refer to the following
chart for introduction.
