5.1.2 Tailgate drains
There is a drain point on each side of the tailgate and
leachate tank (if fitted).

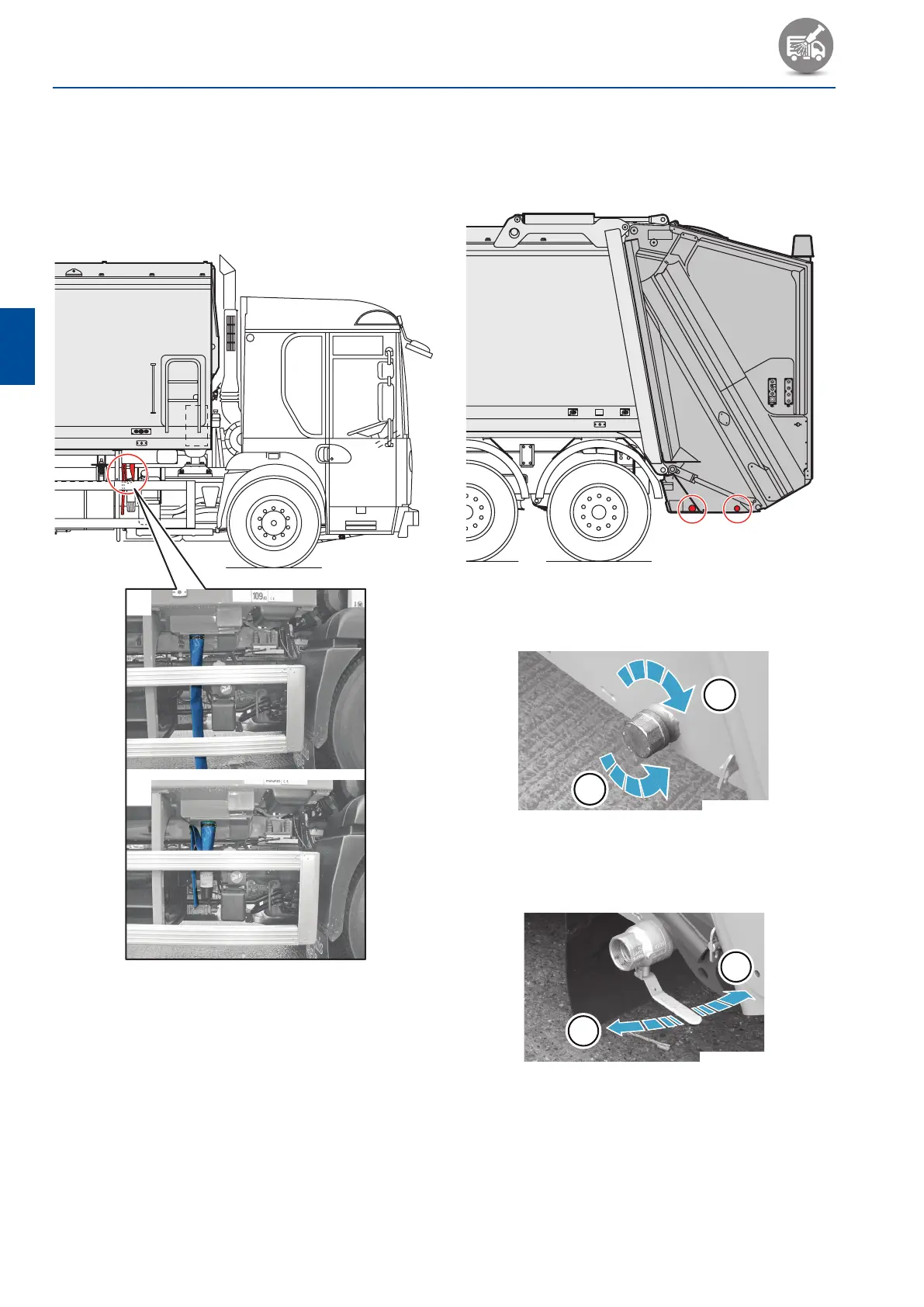

Fig. 5-2 Tailgate drains
1 Plug Type
D
C
C. To open: Unscrew drain plug off drain.
D. To close: Screw drain plug onto drain.
2 Valve Type
F
E
E. To open: Turn lever outwards.
F. To close: Turn lever inwards.
5.1 Drain
5.1.1 Body drain
The body drain is on the right‑hand side of the body at
the front.
A
B
Fig. 5-1 Body drain
A. To open: Release hose.
B. To close: Stow hose in bracket.
