6.8 6-Week service checks
The following service checks should be carried out once every 6 weeks or more frequently when the Refuse
Collection Vehicle is operating in severe conditions.
The following service checks should be carried out in addition to the Daily service checks and Weekly service
checks.
1. Immobilise the vehicle (see ‘1.2 Immobilising the vehicle prior to service procedures’ on page 1‑3).
6.8.1 Check the security of body mounting bolts
Check that body mounting bolts are tightened to the specified torques, and spring lengths and gaps are correct.
Ref. Components Size
Spring
length **/
gap ‡ mm
Nm lbf ft
1 Front body mounting bolts. M24 x 80 1000 740
2 Front body mounting bolts. M20 x 190 **65
3 Intermediate body mounting bolts. M24 x 170 ‡5
4 Intermediate body mounting bolts. M24 x 170 **70
5 Intermediate body mounting bolts. M16 x 60 150 110
6 Intermediate support blocks. M12 x 80 101 75
7 Intermediate support blocks. M12 x 40 101 75
8 Rear body mounting bolts. M24 x 58 1000 740
9 Rear body mounting bolts. M16 x 60 150 110
2894-OL1-D-GB-G1
5
2
1
2
2
3
4
3
4
7
6
8
9

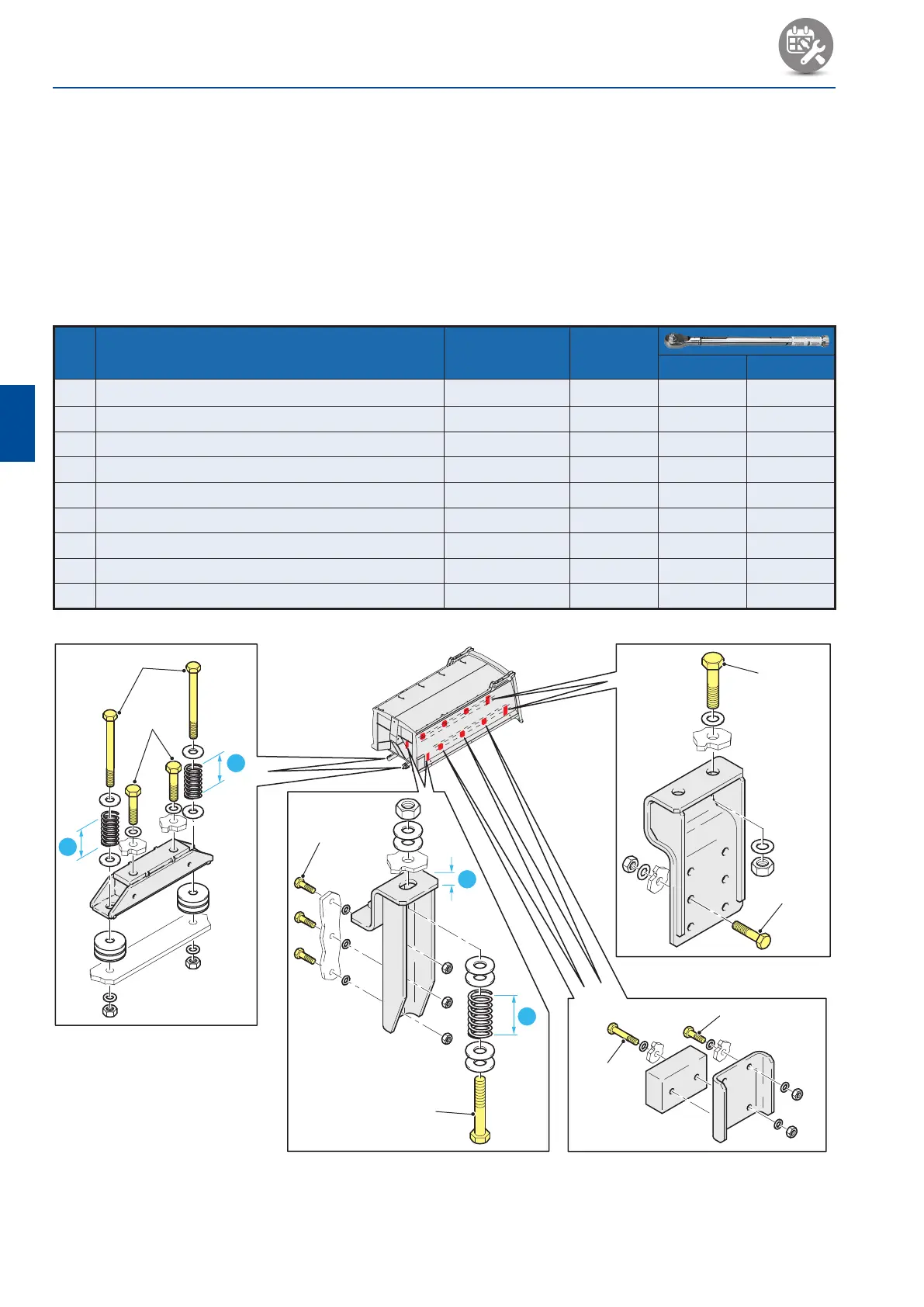

Fig. 6-4 Body mounting bolts
