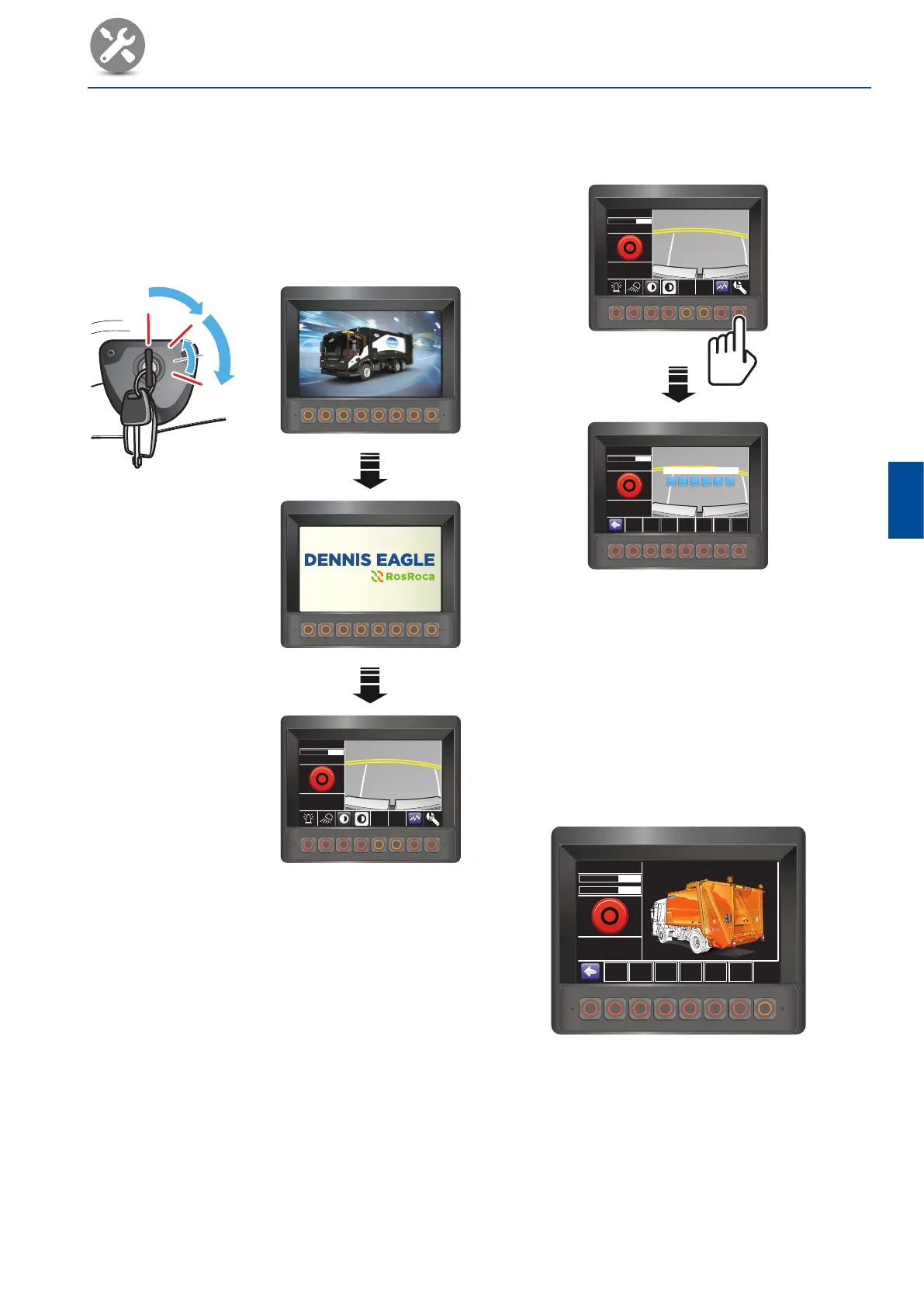

3. Press the maintenance switch.
• The ‘Password’ screen should display.
2748-DS002-OL1-D-GB-G2
01.06.2013
Hyd Oil Temp
09:00:00
32
o
C
0 No errors
0 No errors
0 No errors
2748-DS019-OL1-D-GB-G2
Hyd Oil Temp
09:00:00
0 No errors
0 No errors
0 No errors
Hyd Oil Temp 32
o
C
01.06.2013 09:00:00
F2 F3 F4 F5 F6 F7 F8
0 No errors
0 No errors
0 No errors
Password Level
4. Using the keys F2 to F8 as a numerical keypad,
enter the password.
• All passwords comprise 6 digits from 2 to 8.
• Example: For password 226534, press keys F2,
F2, F6, F5, F3, F4.
• As each number is entered the square changes
colour from blue to white.
• The screen will display the ‘Maintenance’
screen appropriate to the level of password
you have entered.
